ALQK1322 pipe thread lathe is widely used in the processing and repair of drill pipes, joints, casings and other parts in some industries, and also used in thread processing of various pipes and drill pipes in chemical, coal, geological and other industries.

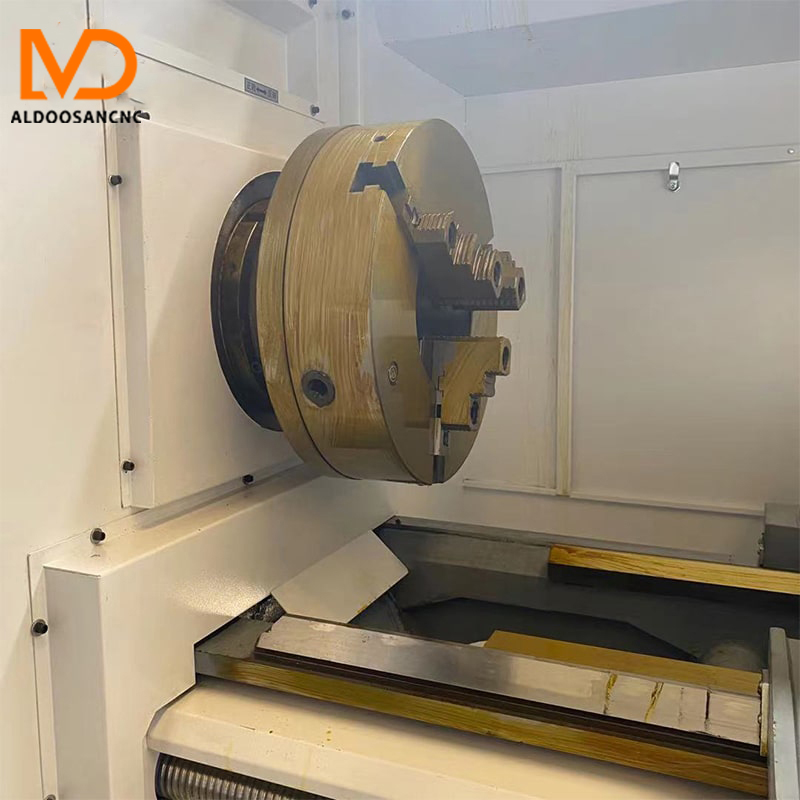

The ALQK1322 pipe thread lathe has a large spindle diameter, high passability, and stable workpiece clamping with double chucks.
High-quality high-strength cast iron casting overall bed has good rigidity and high precision. The surface of the guide rail has been treated with super-audio frequency quenching, which has high hardness and long service life. The pallet adopts the guide rail surface sticking plastic process, which has good wear resistance and high precision.
1. Double chuck workpiece clamping is stable
2. The overall bed has good rigidity and high precision
3. The surface of the guide rail has been treated with super-audio frequency quenching, which has high hardness and long service life
4. The carriage adopts the guide rail surface sticking plastic process, which has good wear resistance and high precision
1. Railway locomotive manufacturing industry: ALQK1322 automatic cnc lathe is aimed at high-speed rail locomotive body, axle, wheel and other parts.
2. Mold processing and manufacturing industry: The precision of parts is required to be high, and the surface precision mainly refers to the surface roughness. Cylindrical parts with high requirements for cylindricity; conical parts with high requirements for plain straightness, roundness and inclination; rotary parts with special threads. ALQK1322 automatic cnc lathe can better solve this problem.
3. Defense industry: The ability of ALQK1322 automatic cnc lathe to provide replacement parts and upgrade components on demand is especially useful in this industry. Therefore, it is suitable for components that require continuous innovation and safety.
4. Medical business field: ALQK1322 lathe cnc can be used in various medical safety materials. Since the process is suitable for one-off custom parts, it has many applications in the medical industry. The tight tolerances offered by ALQK1322 lathe cnc lathe machining are essential for high performance machining of medical components.
1. Four-station electric knife post
2. Automatic centralized lubrication system
3. Air-conditioning system
4. Semi-enclosed protective cover
1. CNC system
2. Fully enclosed protective cover
3. Vertical and horizontal turret
