PRODUCT
ALCK6140X1500 CNC lathe
ALCK6140X1500 CNC lathe is one of the most widely used CNC machine tools. It is mainly used for cutting internal and external cylindrical surfaces of shaft parts or disk parts, internal and external conical surfaces with any cone angle, complex internal and external curved surfaces of rotation, cylinders, conical threads, etc., and can perform grooving, drilling, reaming and reaming. holes, boring holes, etc. The ALCK6140X1500 CNC lathe automatically processes the processed parts according to the pre-programmed processing program.
ALCK6140X1500 flat bed CNC lathe is a high-precision, high-performance and versatile CNC lathe. Used for processing various shaft and disc parts. Thread turning and other functions.
ALCK6140X1500 horizontal CNC lathe features:
1. ALCK6140X1500 horizontal CNC lathe has high precision, low noise, high precision and good stability.
2. The ALCK6140X1500 horizontal CNC lathe bed guide rail has been finely ground by supersonic quenching, with high hardness and good rigidity.
3. The electric four-station tool holder of the ALCK6140X1500 CNC metal lathe adopts precision gear disc positioning and has high repeatability positioning accuracy.
4. The tailstock of ALCK6140X1500 CNC metal lathe is equipped with a fast cam clamping device, which ensures high working efficiency. There is a device inside the tailstock cover to prevent the drill bit from rotating, which prevents misoperation from causing the drill bit to rotate and damage the inner hole taper of the tailstock cover, effectively protecting the tailstock components.
5. ALCK6140X1500 CNC metal lathe is easy to operate and is particularly suitable for processing complex parts or high-precision large-volume parts. It is also the first choice for CNC teaching.
ALCK6140X1500 horizontal CNC lathe uses:
1. Mold field: ALCK6140X1500 CNC metal lathe processing is not only an excellent direct manufacturing process, but also an indirect manufacturing process that can assist injection molding and other processes. It facilitates the processing of various steels and high-strength aluminum. Machined parts such as metal molds can be filled with other materials to create large quantities of products.
2. Aerospace industry: The aerospace industry has a long history of using CNC machining. Metal aircraft components are machined with the highest precision. This is very important for safety-critical applications. Additionally, the CNC-compatible range of engineered metals offers a variety of options for aerospace engineers.
3. Weapons manufacturing field: ALCK6140X1500 CNC metal lathe is developed and designed for multi-station processing of complex parts. It is mainly used for grinding the inner holes and end faces of discs, shafts (or similar parts), and is suitable for mass production of parts. It has the unique advantages of high precision and high efficiency.
4. Shipbuilding and navigation fields: ALCK6140X1500 CNC metal lathe is widely used in the manufacturing of large ship crankshafts, marine machinery and instrument manufacturing, etc. The high-precision requirements for parts in the shipbuilding industry make CNC lathes an indispensable processing equipment. CNC machines can continuously produce complex, multi-dimensional metal and plastic parts in a variety of shapes and sizes. Provide efficient, convenient and precise production capabilities.
ALCK6140X1500 horizontal CNC lathe configuration:
1. Ordinary main motor
2. Domestic inverter
3. Three-jaw chuck
4. Tailstock
5. Four-station electric tool holder
6. Automatic lubrication system
7. Electric cooling system
8. Lighting system
9. Semi-enclosed shielding
10. Electrical control components
11. Full set of technical information
12. Random standard accessories and tools
Optional configurations of ALCK6140X1500 automatic CNC lathe:
1. Integral bed
2.Integrated bed foot
3. Eight-station electric tool holder
4. Hydraulic chuck
5. Electric chuck
6. Hydraulic tailstock
7. Center stand
8. Variable frequency motor
9. Servo motor
10. Electric door
video:

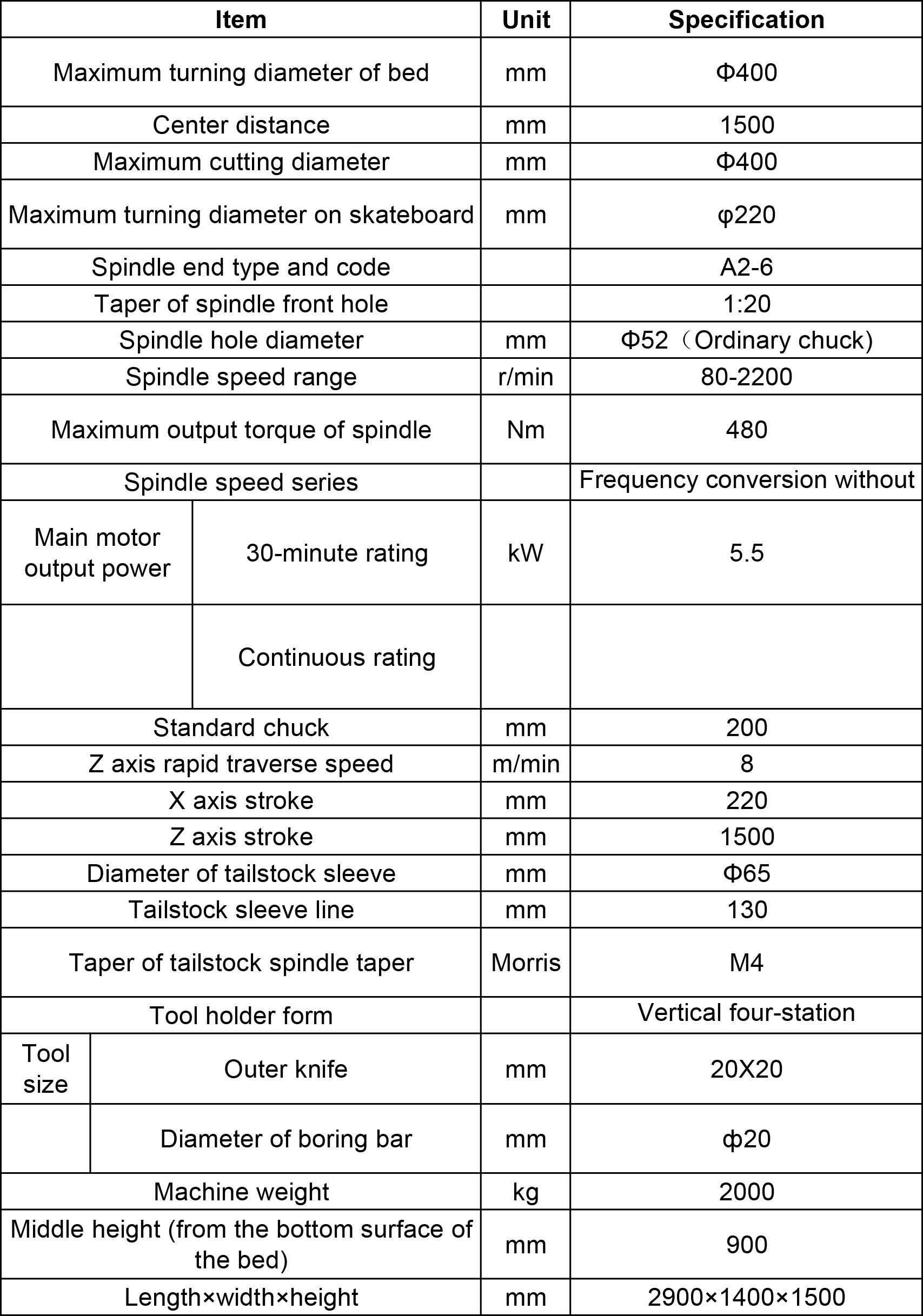

Product parameters:
