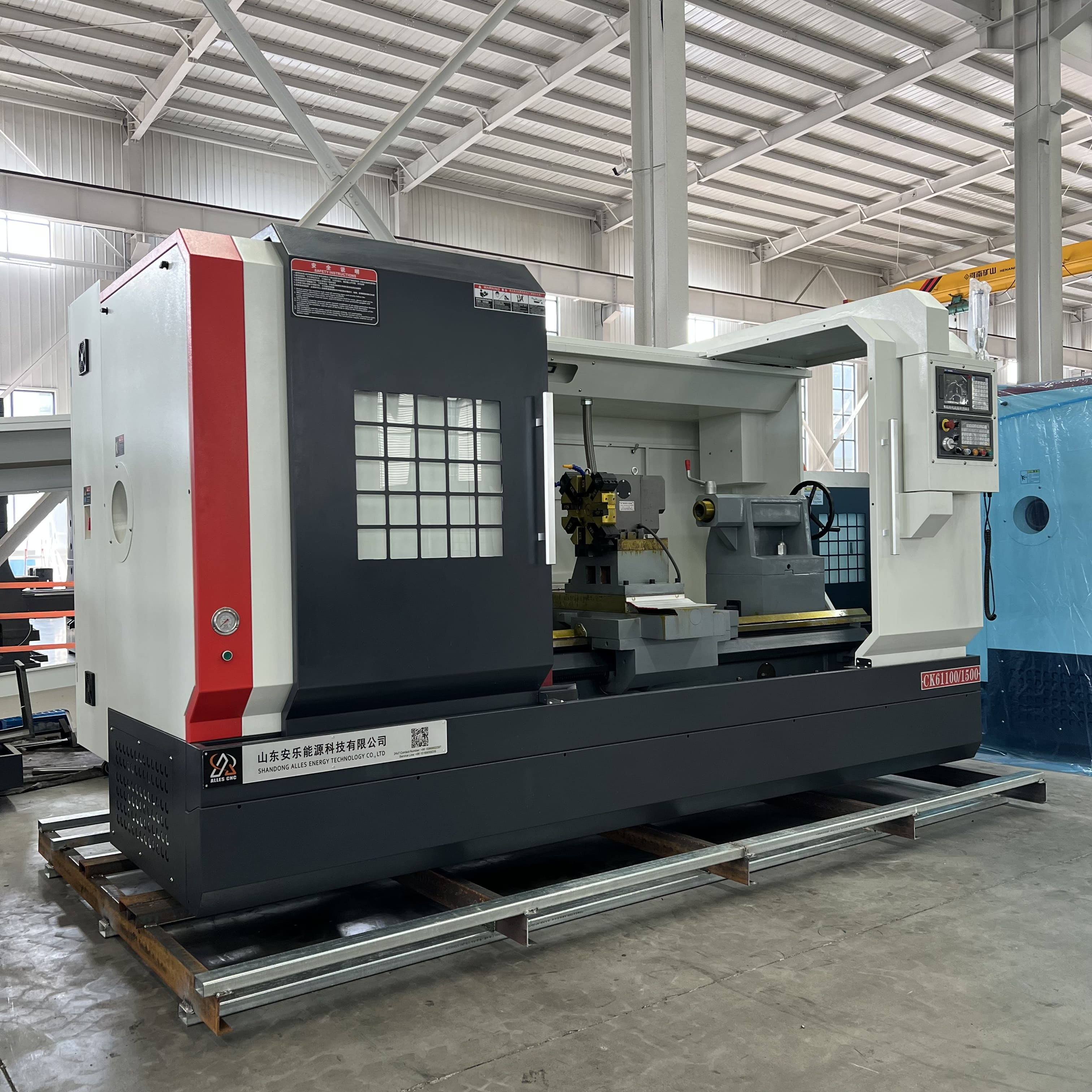

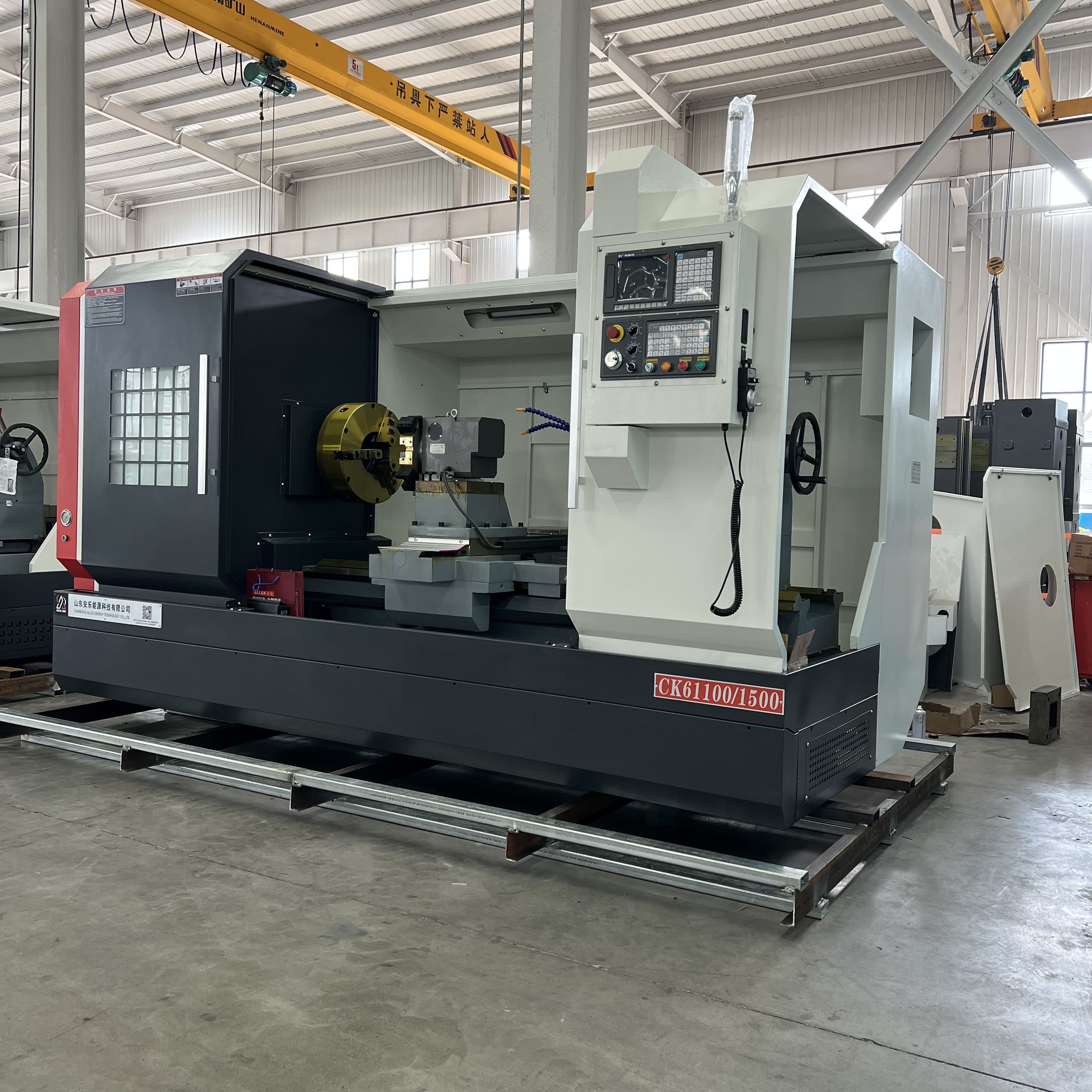

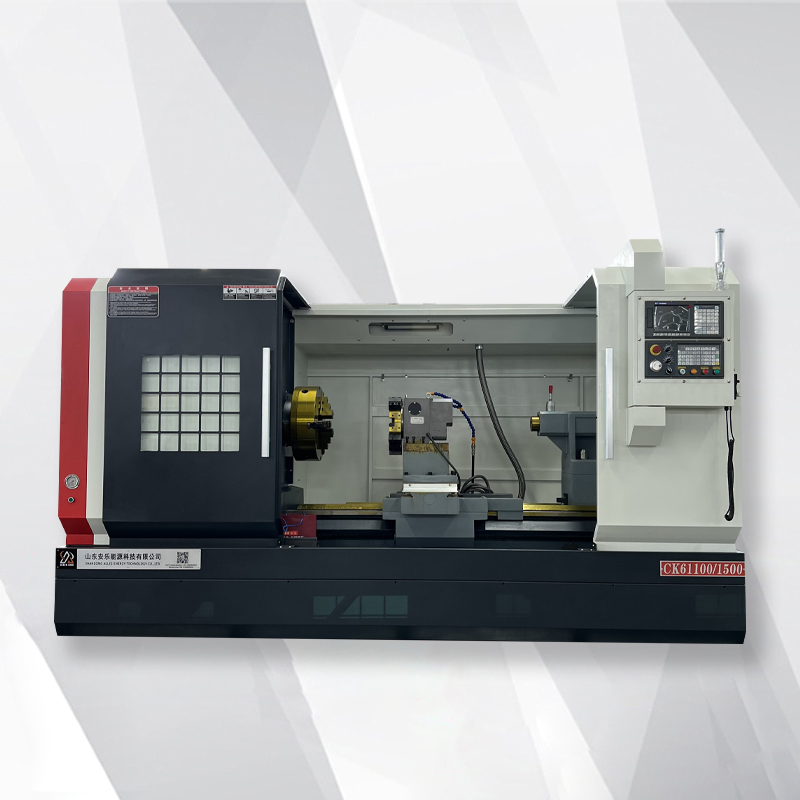

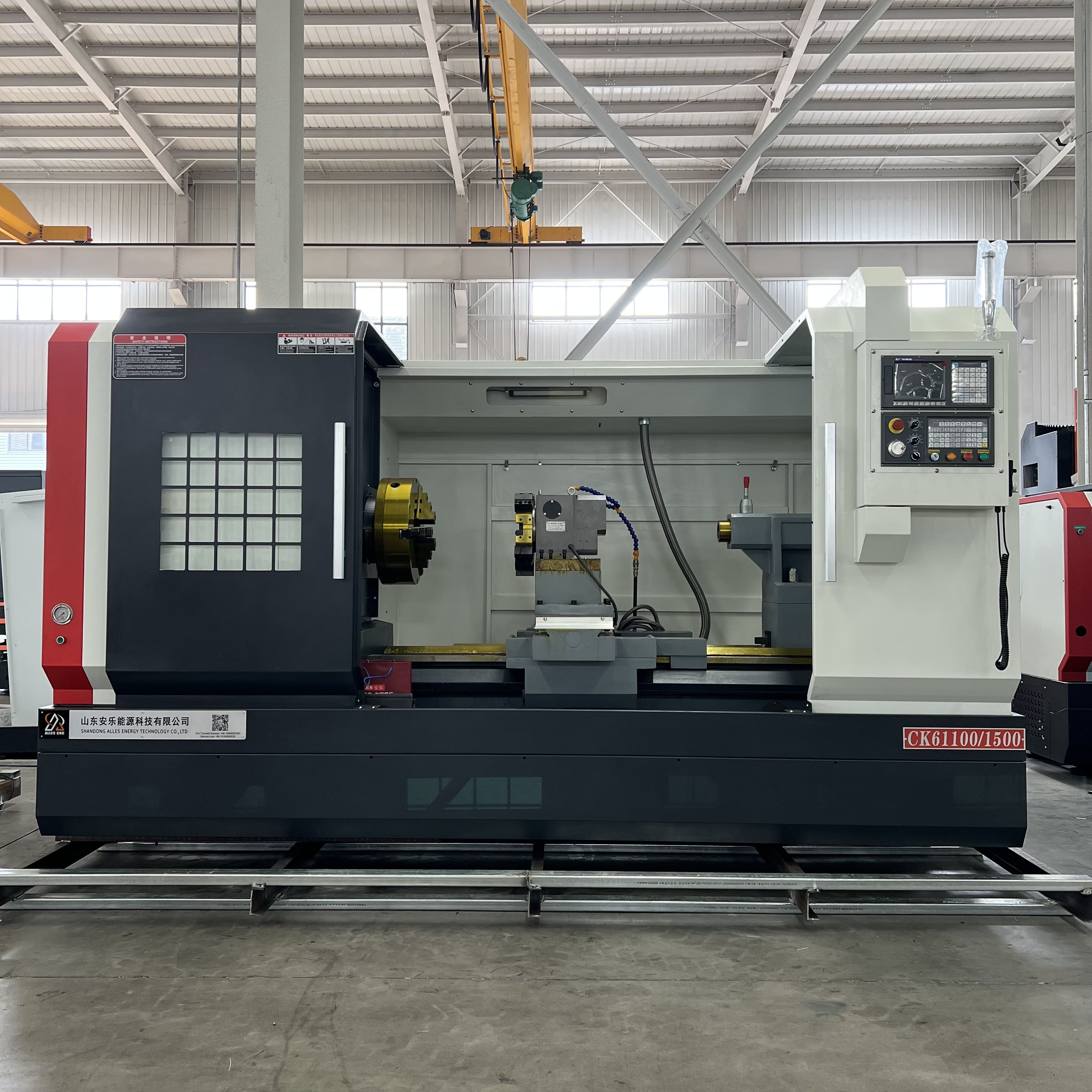

ALCK61100x1500 CNC horizontal lathe
ALCK61100x1500 CNC horizontal lathe has the characteristics of high precision, high power and high rigidity. Its main components and structure have been optimized and designed. ALCK61100x1500 CNC horizontal lathe spindle system structure adopts manual four-speed transmission, which has good impact resistance, good stability and good cutting performance. The ALCK61100x1500 automatic CNC lathe has low noise, strong adaptability to batch processing of large, medium and small batches, multiple varieties and multi-specification parts, and the processing quality is stable and reliable. ALCK61100x1500 automatic CNC lathe can automatically complete the turning of internal and external circles, end faces, grooving, arbitrary tapers, curved surfaces, metric cylinders, conical threads and other processes of parts.
The key components of the ALCK61100x1500 automatic CNC lathe are made of high-quality materials. The bed, spindle box, feed box, slide box and other components are all made of high-quality high-strength cast iron and processed after long-term aging treatment to ensure the accuracy and stability of the parts. The machine tool configuration is well-known in China. The brand's four-station digitally controlled tool holder has the characteristics of high positioning accuracy, high strength, and good anti-seismic performance. The ALCK61100x1500 flat bed CNC lathe machine tool is inspected strictly in accordance with the inspection procedures before leaving the factory to ensure the accuracy, stability and reliability of the machine tool.
Features of ALCK61100x1500 flat bed CNC lathe:
1. Manual scraping and grinding between the joint surfaces of the ALCK61100x1500 flat bed CNC lathe machine headstock and bed, tailstock, pallet, etc.
2. The ALCK61100x1500 turning and milling center machine tool is made of high-strength cast iron, with special copper and chromium materials added. The width of the bed guide rail is 600mm, and the quenching depth of the bed guide rail reaches 4mm, which effectively improves the wear resistance and stability of the machine tool.
3. The ALCK61100x1500 turning and milling center machine tool spindle uses Harbin bearings, the spindle through hole is 105mm, and the machine tool gears are precision ground, which effectively improves the gear hardness and reduces the machine tool noise.
5.ALCK61100x1500 turning and milling center machine tool adopts precision ball screw.
6. ALCK61100x1500 CNC metal lathe adopts manual four-speed transmission, has a wide torque range and is suitable for a wide range of processing.
7.ALCK61100x1500 CNC metal machine tool adopts four-station electric tool holder.
Application industries of ALCK61100x1500 CNC metal:
1. Aerospace industry: ALCK61100x1500 CNC lathe plays an important role in the aerospace field and is used to process aircraft parts, engine parts, etc.
2. Automobile manufacturing industry: ALCK61100x1500 CNC lathe In automobile manufacturing, CNC lathes are often used to process engine parts, transmission parts, wheels and other key parts.
3. Energy industry: ALCK61100x1500 CNC lathe is used to process energy equipment, such as turbine parts for power plants, oil and gas extraction equipment, etc.
4. General machinery manufacturing industry: ALCK61100x1500 CNC lathe can be used to process various general machinery parts, such as bearings, gears, connecting rods, etc.
5. Mold manufacturing industry: ALCK61100x1500 Fanuc CNC lathe is used to manufacture molds and mold parts to meet the requirements of other industries for specific shapes and sizes.
6. Railway transportation: ALCK61100x1500 Fanuc CNC lathe is used to process parts of railway vehicles, such as axles, wheels, etc.
Shipbuilding industry: ALCK61100x1500 Fanuc CNC lathe is used to process ship structures and parts, including hulls, propulsion systems, etc.
ALCK61100x1500 CNC horizontal lathe standard configuration:
1. Spindle and spindle drive system: Powerful spindle motor and corresponding transmission system to provide sufficient processing power.
2. Lathe bed and bed guide rail: A lathe bed with sufficient rigidity and stability usually adopts cast iron or welded structure. The bed guide rails can be linear guide rails or inclined bed guide rails.
3. Control system: Equipped with CNC systems from Siemens, Fanuc, Mitsubishi, etc.
4. Tool Tower: Equipped with a tool tower that can automatically switch and install tools to improve production efficiency.
5. Automatic lubrication system: used to automatically lubricate key components such as bed guide rails and screw rods to ensure smooth operation of the machine tool.
6. Cooling system: used to cool the heat generated during the cutting process and prevent the workpiece and tool from overheating.
7. Fixtures and workpiece fixtures: including fixtures and other fixtures used to fix workpieces to ensure processing accuracy.
8. Operation console and control panel: Provide human-machine interface to facilitate operator setting and monitoring.
Optional configurations of ALCK61100x1500 CNC horizontal lathe:
1. Automatic tool changing system: It can automatically change different types of tools to improve processing flexibility and efficiency.
2. Automatic measurement system: It can automatically measure the size of the workpiece and realize automatic size control.
3. Processing cooling system: For special process requirements, a more advanced cooling system can be configured to ensure stability during high-speed cutting.
4. Automatic loading system: used to automatically load and unload workpieces to improve production efficiency.
5. Tools and tool library: A larger capacity tool library supports more different types of tools.
6. Advanced CNC system: Upgrade to a higher-level CNC system to provide more functions and higher control accuracy.
7. Processing monitoring system: It can monitor tool wear, temperature and other parameters to improve the controllability of the production process.
video:

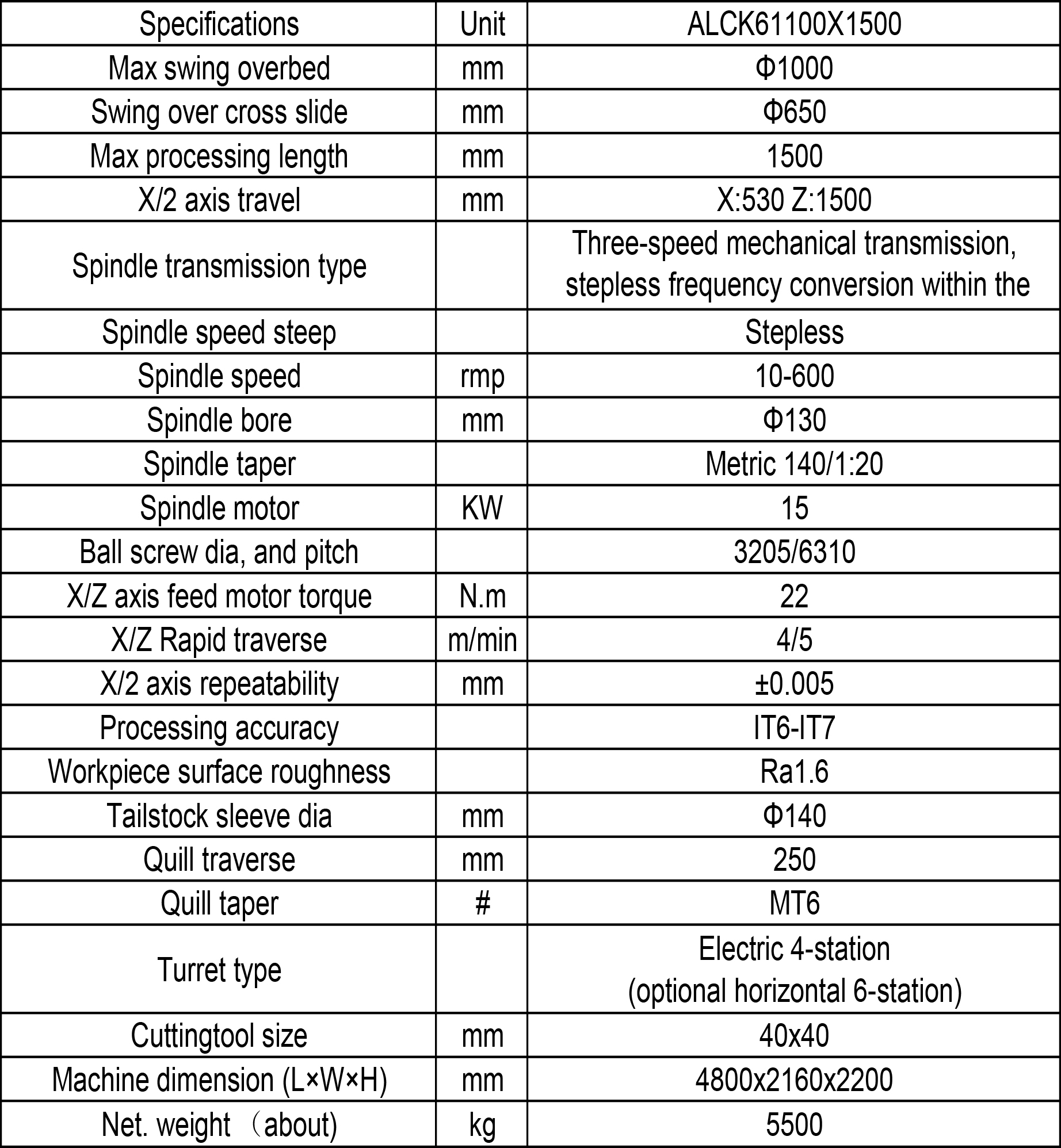

Product parameters:
