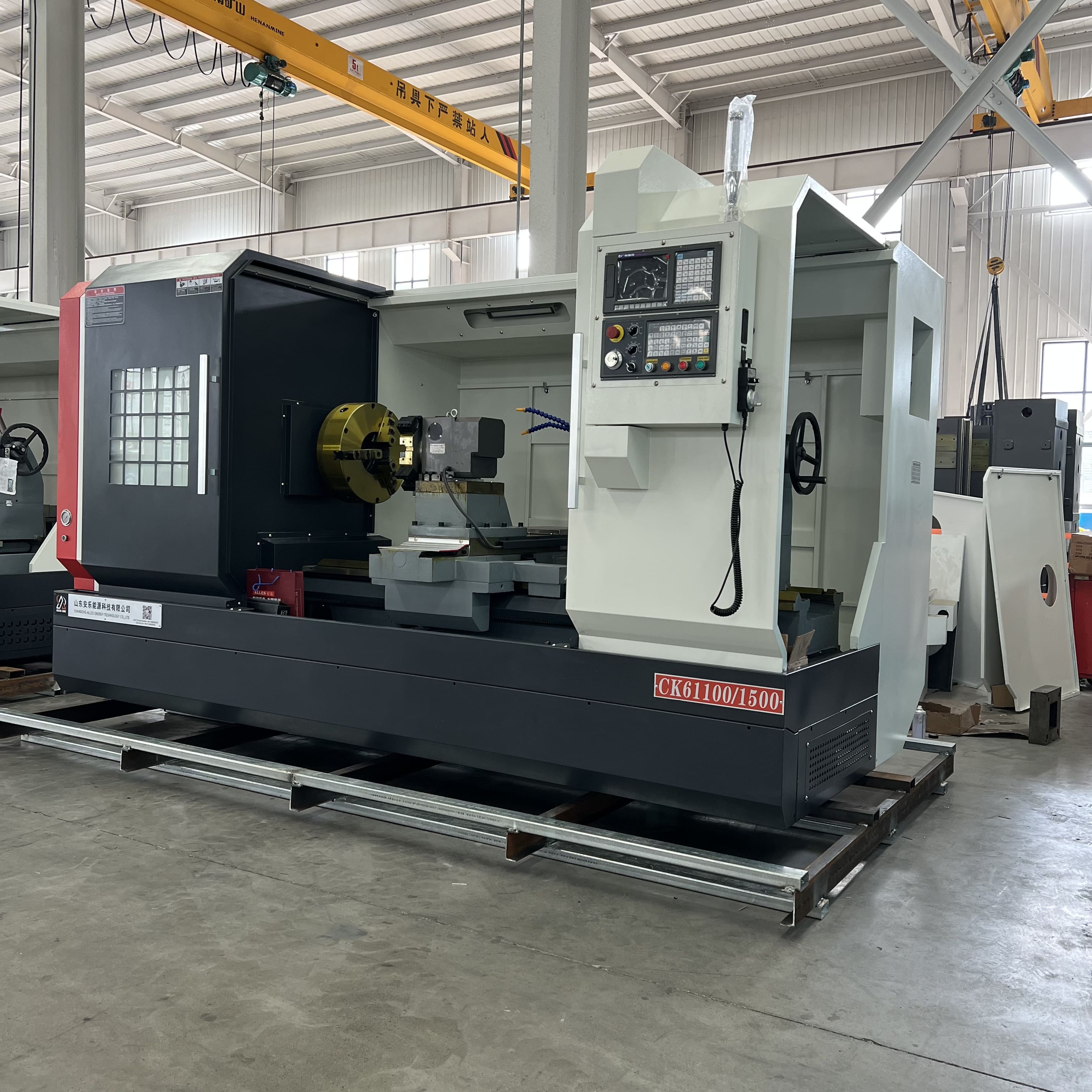

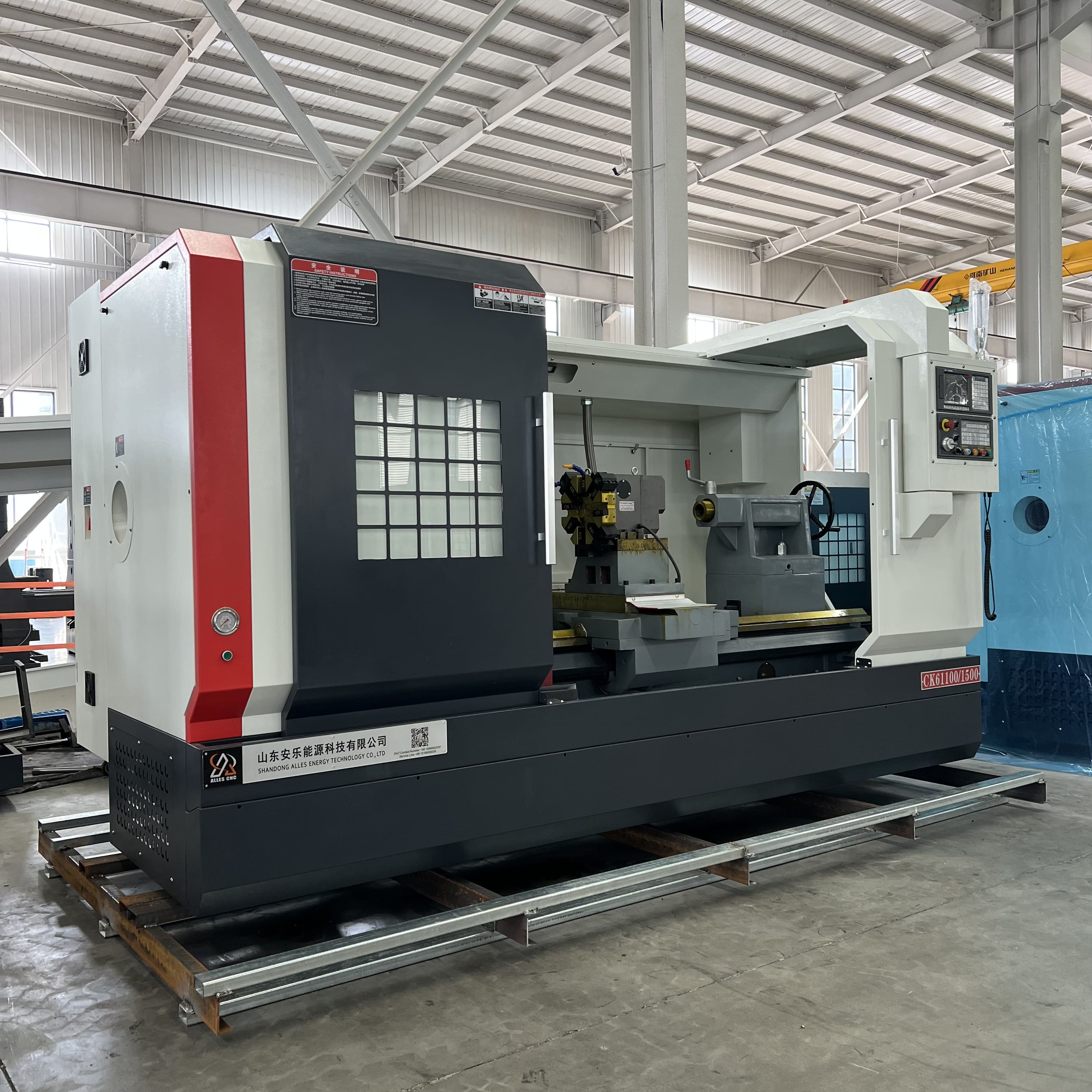

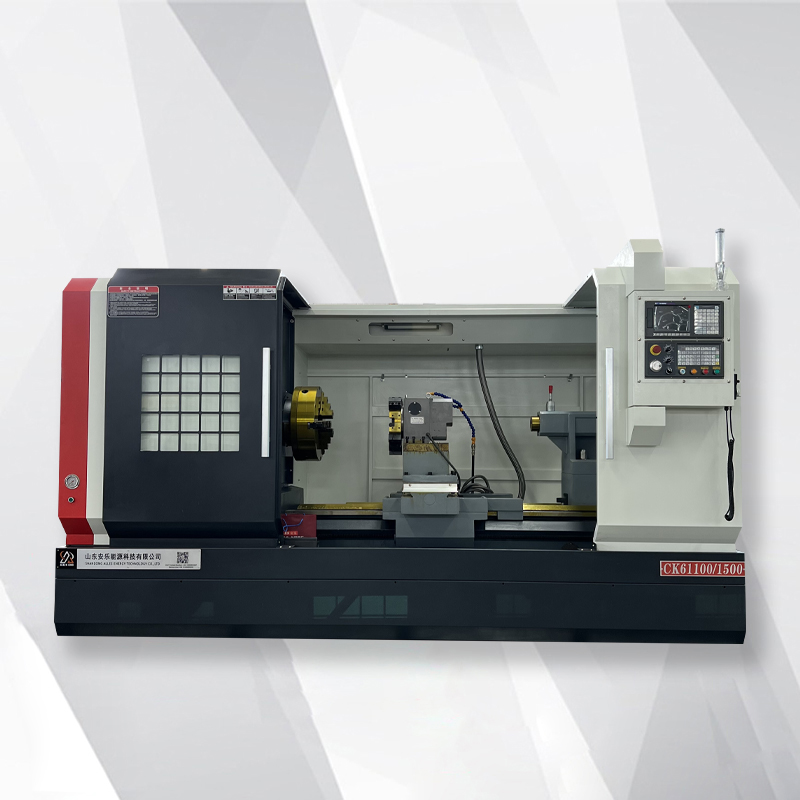

ALCK61100x1500 CNC horizontal lathe
ALCK61100x1500 CNC horizontal lathe has the characteristics of high precision, high power and high rigidity. Its main components and structure have been optimized and designed. ALCK61100x1500 CNC horizontal lathe spindle system structure adopts manual four-speed transmission, which has good impact resistance, good stability and good cutting performance. The ALCK61100x1500 automatic CNC lathe has low noise, strong adaptability to batch processing of large, medium and small batches, multiple varieties and multi-specification parts, and the processing quality is stable and reliable. ALCK61100x1500 automatic CNC lathe can automatically complete the turning of internal and external circles, end faces, grooving, arbitrary tapers, curved surfaces, metric cylinders, conical threads and other processes of parts.
The key components of the ALCK61100x1500 automatic CNC lathe are made of high-quality materials. The bed, spindle box, feed box, slide box and other components are all made of high-quality high-strength cast iron and processed after long-term aging treatment to ensure the accuracy and stability of the parts. The machine tool configuration is well-known in China. The brand's four-station digitally controlled tool holder has the characteristics of high positioning accuracy, high strength, and good anti-seismic performance. The ALCK61100x1500 flat bed CNC lathe machine tool is inspected strictly in accordance with the inspection procedures before leaving the factory to ensure the accuracy, stability and reliability of the machine tool.
The horizontal CNC lathe ALCK61100x1500 is a high-precision and high-efficiency machine tool with the following characteristics:
1. High precision: The horizontal CNC lathe ALCK61100x1500 adopts an advanced CNC system, which can achieve high-precision processing and ensure the dimensional accuracy and surface quality of parts.
2. High rigidity: The horizontal CNC lathe ALCK61100x1500 adopts a solid bed and large-size rolling guide rails, which has high rigidity and stability to ensure machining accuracy during high-speed cutting.
3. Multi-function: The automatic CNC lathe CK61100x1500 has a variety of processing functions and processing methods, and can complete fine internal and external cylindrical surfaces, surface edges and corners, and various thread processing.
4. High efficiency: The automatic CNC lathe CK61100x1500 is controlled by a CNC system and has automatic operation and high-speed cutting functions, which greatly improves the processing efficiency and reduces the cumbersome manual operations.
5. Strong adaptability: The automatic CNC lathe CK61100x1500 is suitable for processing various metal materials, such as steel, aluminum, copper, alloys, etc., and is widely used in aviation, automobiles, machinery manufacturing and other industries.
The metal CNC lathe CK61100x1500 has a wide range of applications. The following are some common application areas:
1. Aerospace: The metal CNC lathe CK61100x1500 is used to process aerospace engine parts, aircraft structural components, etc.
2. Automobile manufacturing: The metal CNC lathe CK61100x1500 is used to process engine blocks, crankshafts, transmission parts and body parts, etc.
3. Machinery manufacturing: CNC lathe CK61100x1500 is used to process parts of various mechanical equipment, such as bearing seats, gears, transmission shafts, etc.
4. Railway transportation: CNC lathe CK61100x1500 is used to process wheels, bearing seats and other parts of railway vehicles.
ALCK61100x1500 CNC horizontal lathe standard configuration:
1. Spindle and spindle drive system: Powerful spindle motor and corresponding transmission system to provide sufficient processing power.
2. Lathe bed and bed guide rail: A lathe bed with sufficient rigidity and stability usually adopts cast iron or welded structure. The bed guide rails can be linear guide rails or inclined bed guide rails.
3. Control system: Equipped with CNC systems from Siemens, Fanuc, Mitsubishi, etc.
4. Tool Tower: Equipped with a tool tower that can automatically switch and install tools to improve production efficiency.
5. Automatic lubrication system: used to automatically lubricate key components such as bed guide rails and screw rods to ensure smooth operation of the machine tool.
6. Cooling system: used to cool the heat generated during the cutting process and prevent the workpiece and tool from overheating.

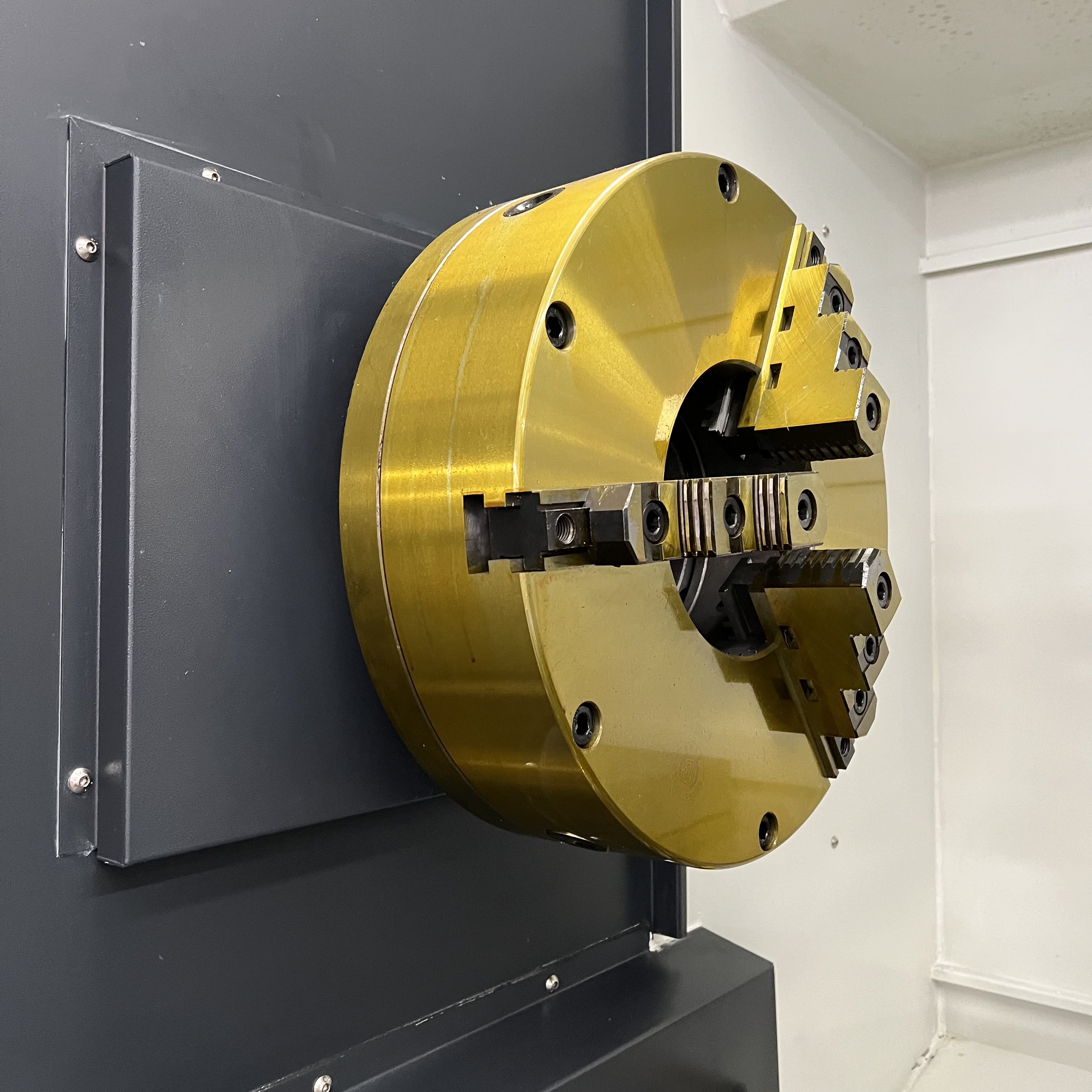

7. Fixtures and workpiece fixtures: including fixtures and other fixtures used to fix workpieces to ensure processing accuracy.
8. Operation console and control panel: Provide human-machine interface to facilitate operator setting and monitoring.
Optional configurations of ALCK61100x1500 CNC horizontal lathe:
1. Automatic tool changing system: It can automatically change different types of tools to improve processing flexibility and efficiency.
2. Automatic measurement system: It can automatically measure the size of the workpiece and realize automatic size control.
3. Processing cooling system: For special process requirements, a more advanced cooling system can be configured to ensure stability during high-speed cutting.
4. Automatic loading system: used to automatically load and unload workpieces to improve production efficiency.
5. Tools and tool library: A larger capacity tool library supports more different types of tools.
6. Advanced CNC system: Upgrade to a higher-level CNC system to provide more functions and higher control accuracy.
7. Processing monitoring system: It can monitor tool wear, temperature and other parameters to improve the controllability of the production process.
Product parameters:
