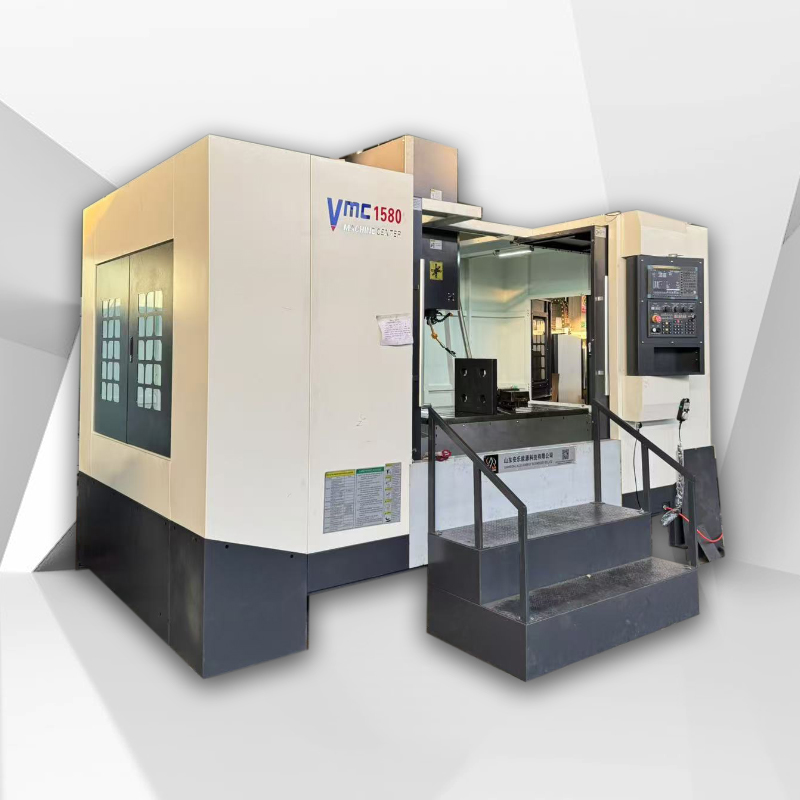

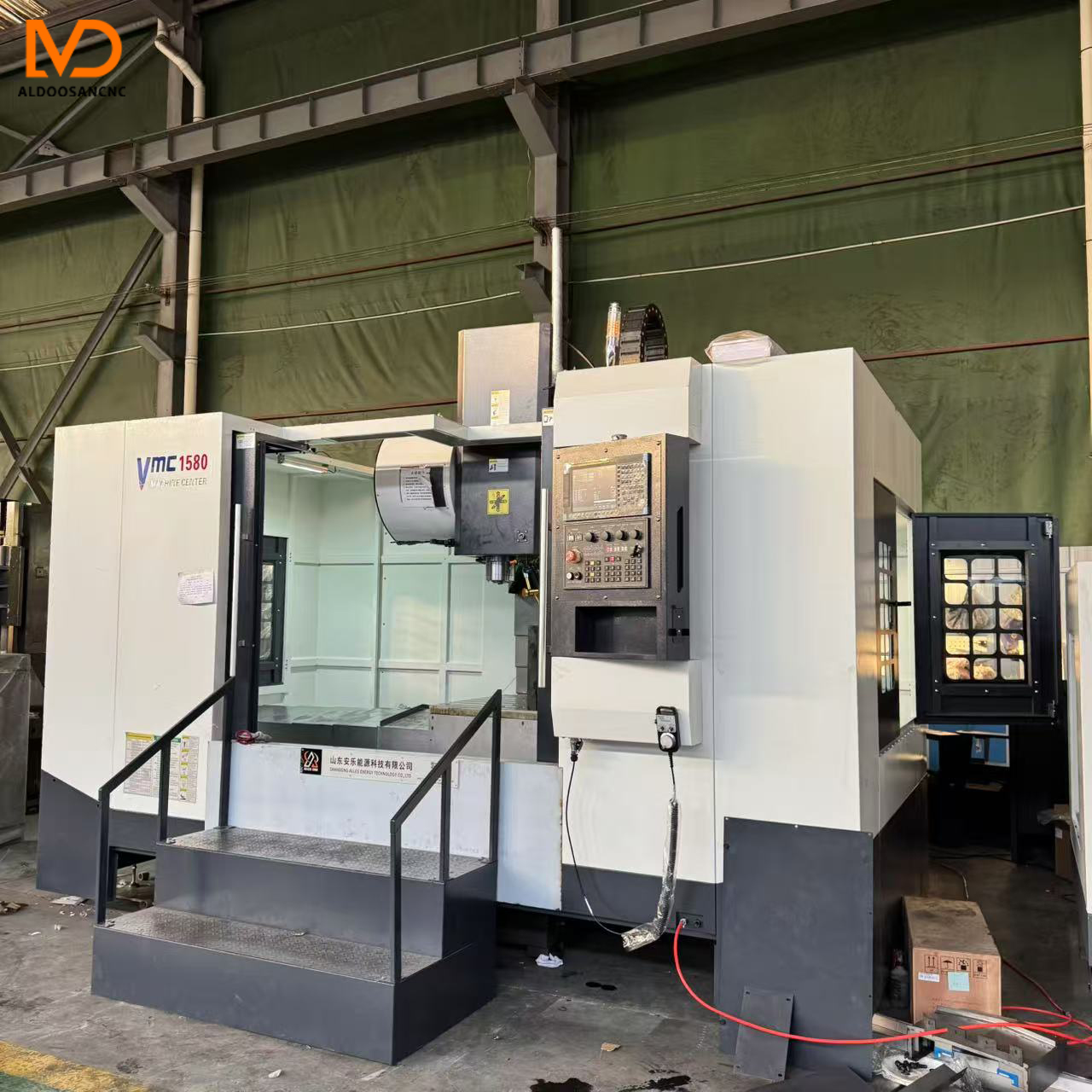

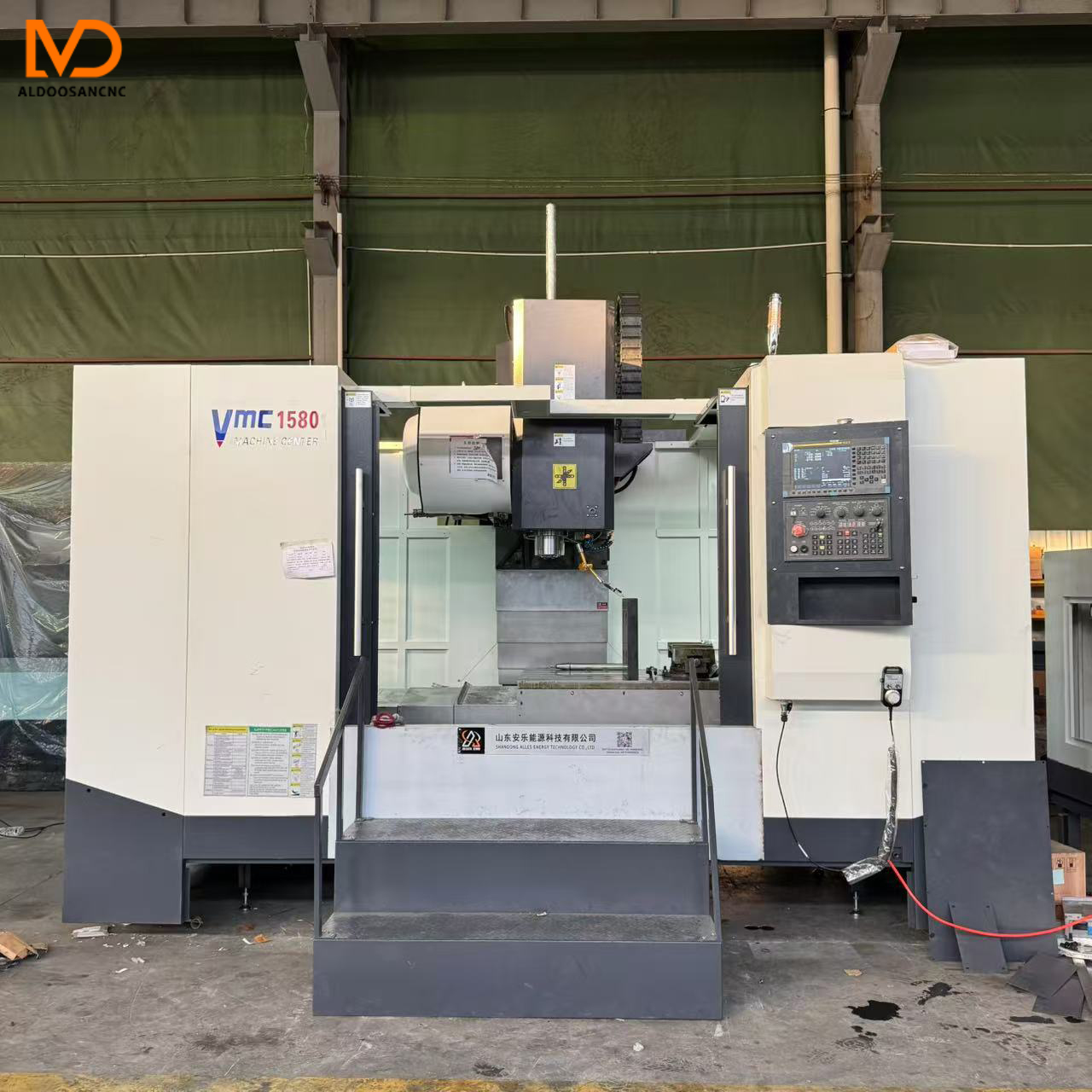

ALVMC1580 vertical machining center
The ALVMC1580 vertical machining center is a high-precision, high-efficiency CNC machine tool. Featuring a highly rigid bed structure and a stable three-axis drive system, it offers exceptional cutting performance and machining stability. Its large worktable and wide travel range meet the demands of multi-step, single-setup machining of medium-to-large parts. Equipped with an advanced CNC system and automatic lubrication and cooling systems, it significantly enhances machining accuracy and efficiency. This machine is widely used in machinery manufacturing, automotive manufacturing, mold processing, aerospace, and energy equipment. It can process engine casings, mold components, aluminum or titanium alloy structural components, and wind power equipment parts, making it an ideal choice for both mass production and high-precision single-piece machining.
ALVMC1580 Vertical Machining Center – Product Introduction
Overview：
The ALVMC1580 Vertical Machining Center is a high-performance CNC machine designed for precision machining of medium to large workpieces. The machine features a high-rigidity cast iron bed structure, stress-relieved for long-term stability. Its three axes are driven by precision ball screws and linear guideways, ensuring smooth transmission and high positioning accuracy. Equipped with a high-speed spindle, advanced CNC system, and comprehensive lubrication, cooling, and chip removal systems, it meets the demands for high efficiency, precision, and stability.
Main Features：
1. High-rigidity structure – Cast iron bed, column, and table with excellent stability and vibration resistance.
2. Large travel capacity – Generous X/Y/Z axis travel for completing multiple operations in one setup.
3. High-precision transmission – Precision ball screws with servo motor drive for exceptional positioning and repeatability.
4. Efficient spindle – High-speed and high-torque spindle suitable for various metal cutting tasks.
5. Advanced control system – CNC system supporting multiple machining processes and automated programs.
6. Complete auxiliary systems – Automatic lubrication, strong cooling, and efficient chip removal to extend machine life and boost productivity.
Application Industries：
l Machinery manufacturing – Milling, drilling, and tapping of mechanical components.
l Automotive manufacturing – Engine housings, gearbox cases, mold parts, and precision automotive components.
l Mold industry – High-precision plastic molds, die-casting molds, and stamping molds.
l Aerospace – Complex components in aluminum, titanium, and other high-strength materials.
l Energy equipment – Wind power components, pump and valve parts, and other large precision structures.
Product Parameters：
| Item | Unit | ALVMC1580 |

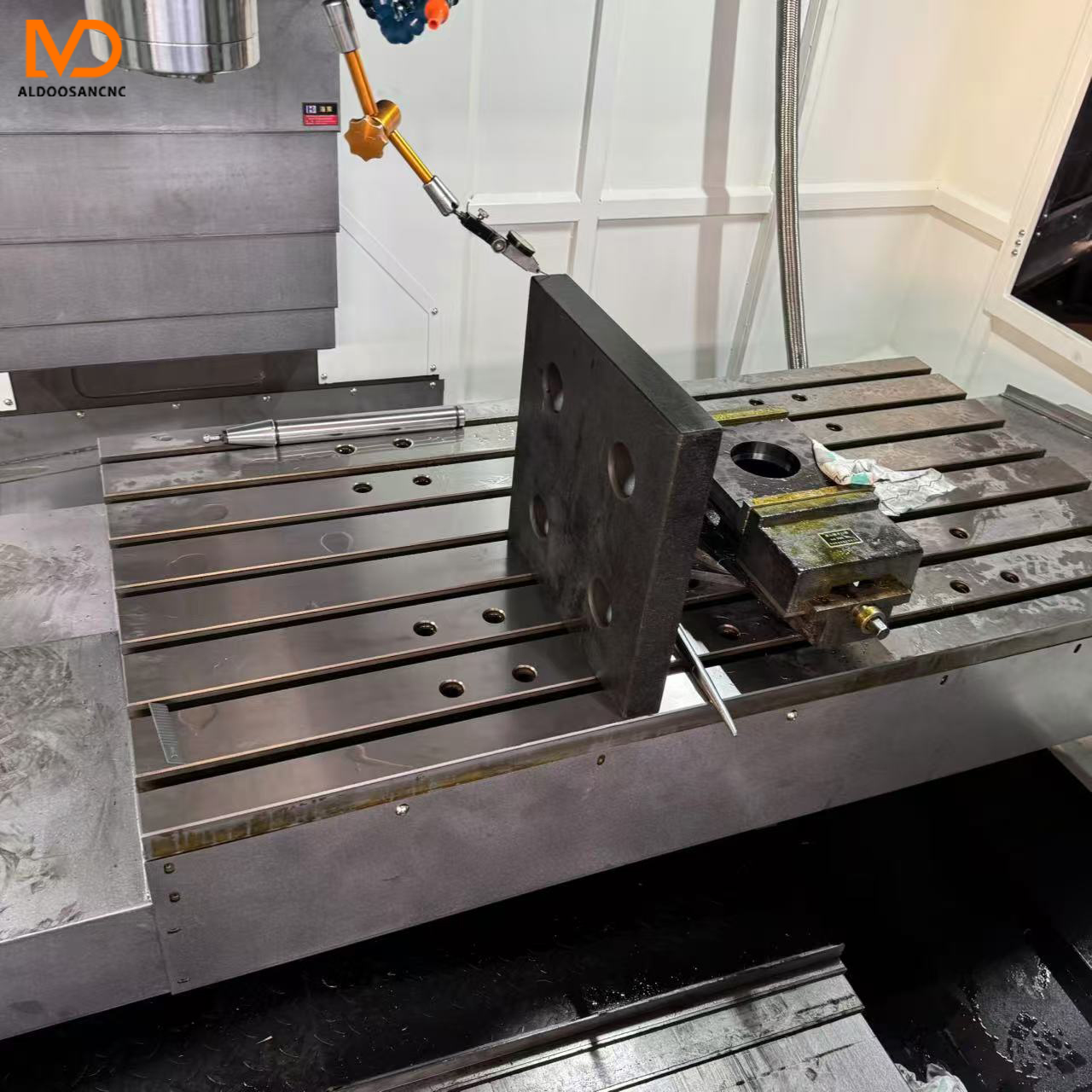

| Worktable size | mm | 1600×800 |
| Maximum load | kg | 1000 |
| T-slot (width × number × pitch) | mm | 18×7×110 |
| X axis travel | mm | 1500 |
| Y axis travel | mm | 800 |
| Z axis travel | mm | 700 |
| Distance from spindle to table | mm | 185–885 |
| Distance from spindle center to column | mm | 855 |
| Spindle speed | rpm | 6000 |
| Spindle taper | BT-50 | |
| Spindle head casing bore | mm | φ190 mm |
| Spindle transmission mode | Belt spindle | |
| Tool diameter (no adjacent tool) | mm | φ115（φ228） |
| Tool length | mm | 350 |
| Tool weight | kg | 15 |
| Tool Holder Type | BT-50 | |

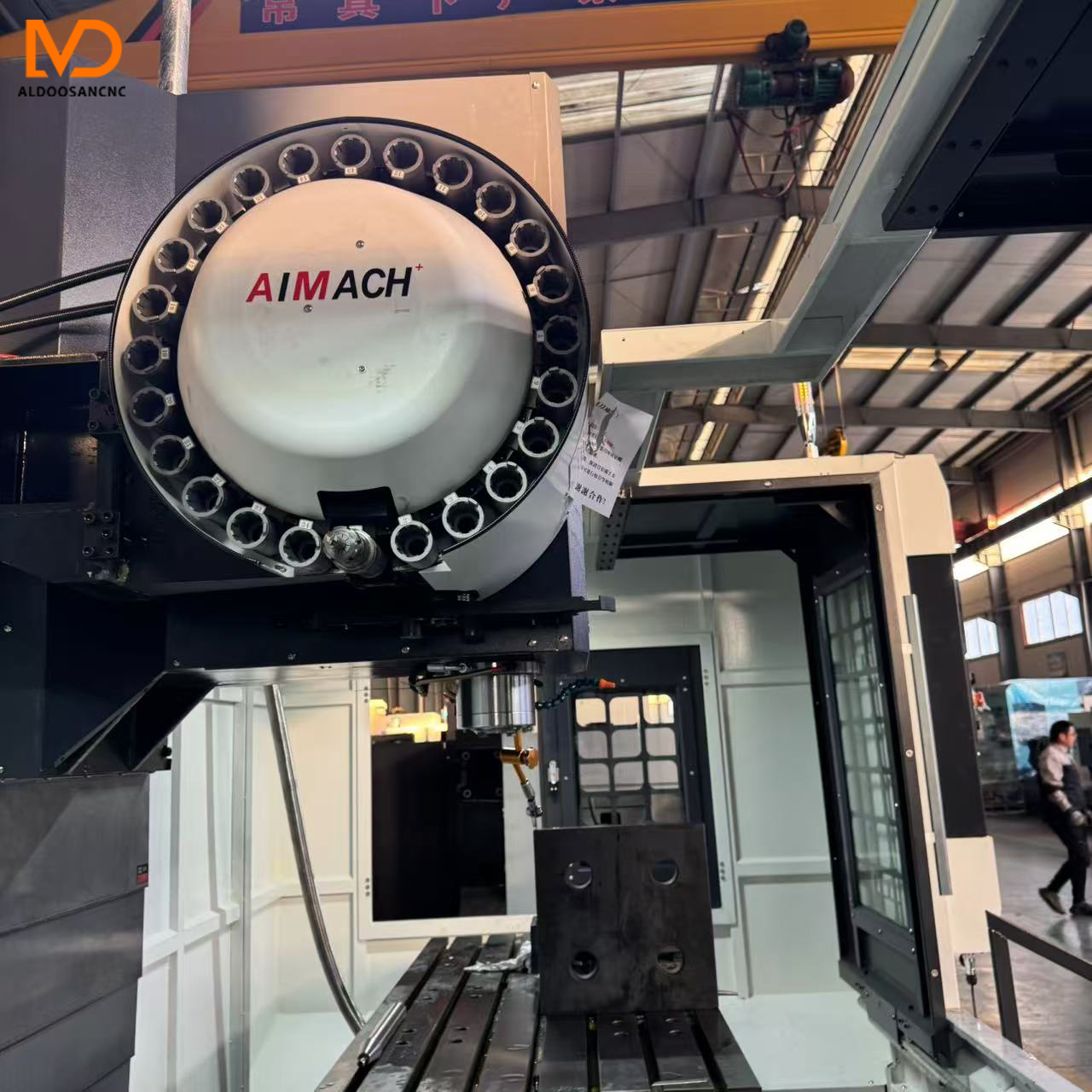

| Magazine capacity pieces | pieces | 24 |
| CNC controller | GSK | |
| Spindle motor (continuous / 15 minutes) | kw | 15/18.5 |
| Servo motor (X / Y / Z) | kw | 3.0/3.0/3.0 |
| Power capacity | kva | 35 |
| Floor area and height | mm | 3515×3175×2850 |
| Machine weight | kg | 12000 |
