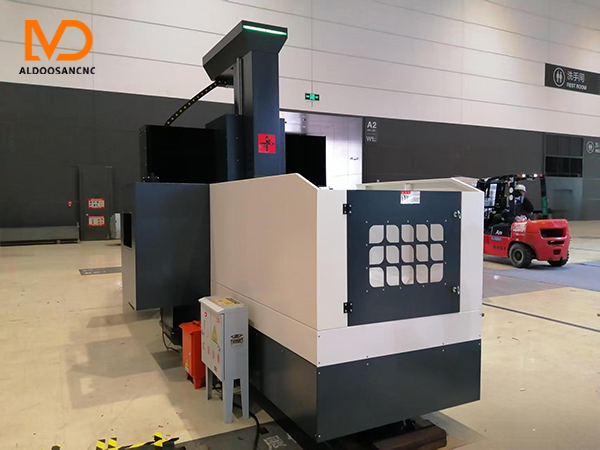

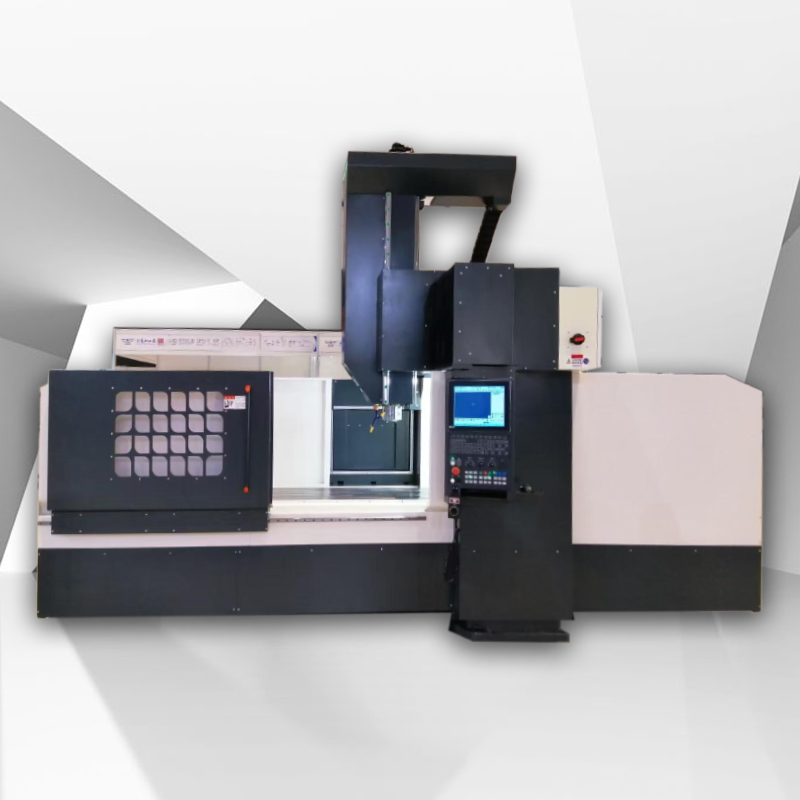

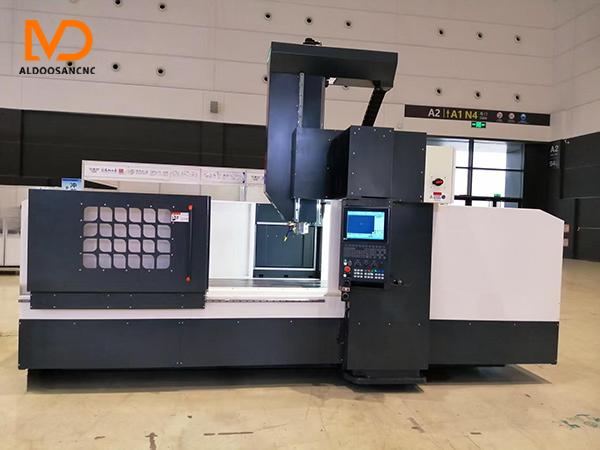

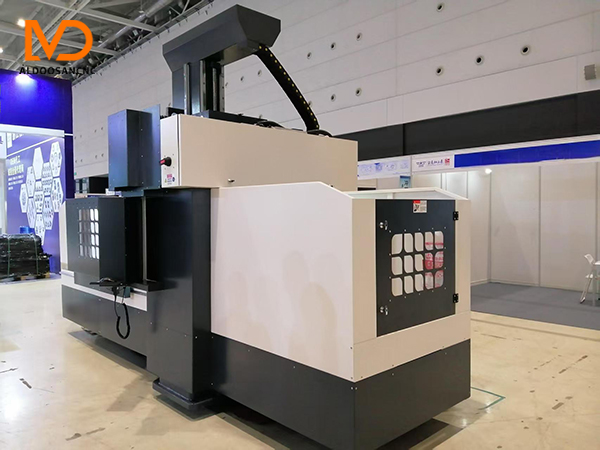

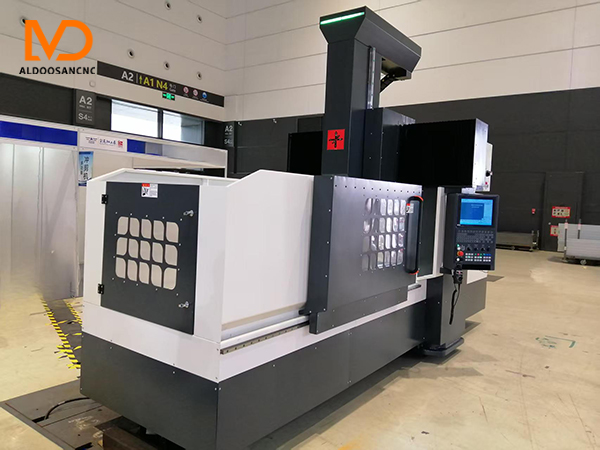

ALGMC1090 CNC Gantry Milling Machine
ALGMC1090 Fixed Beam Gantry Machining Center – Product Introduction
The ALGMC1090 is a high-performance fixed beam gantry machining center, featuring a robust resin sand casting structure that ensures excellent stability and vibration resistance. It is equipped with a large 900×1000 mm worktable with strong load-bearing capacity, making it ideal for heavy workpiece machining. The XYZ axis travels are 900×1000×450 mm, and all axes adopt high-precision roller linear guideways for superior machining accuracy and fast dynamic response. This machine is widely used in mold manufacturing, automotive parts, construction machinery, and aerospace industries for milling, drilling, tapping, and other multi-process machining of large and high-precision components.
ALGMC1090 Fixed Beam Gantry Machining Center Product Introduction
ALGMC1090 is a high-precision, high-rigidity fixed beam gantry machining center, specially designed for precise machining of medium to large complex components. The entire structure is made of resin sand cast iron, ensuring excellent stability and vibration resistance, which maintains machining accuracy and reliability over long-term operation.
The machine is equipped with a large worktable measuring 900×1000 mm, with a maximum load of 2000kg, suitable for multi-face machining of heavy-duty large parts. The XYZ travel is 900×1000×450 mm, and it adopts heavy-duty roller linear guideways to enhance motion rigidity and response speed. With a high-speed, high-torque spindle system and powerful CNC control, it supports drilling, milling, and tapping in one setup.
Main Features:
1. Fixed beam structure for higher rigidity and heavy cutting capability;
2. Resin sand cast iron body for superior stability and vibration absorption;
3. XYZ axes equipped with roller linear guides for high precision and long service life;
4. Large load-bearing table for heavy workpieces;
5. Fast-response CNC system, supporting multi-axis simultaneous machining.
Application Industries (examples):
l Mold Industry: Suitable for complex injection and die-casting molds;
l Automotive Industry: Machining engine housings, suspension brackets, gearbox casings;
l Construction Machinery: Chassis parts and hydraulic components;
l Aerospace: Aluminum alloy structural parts and precision components;
l New Energy: Wind power components, battery casings, etc.
ALGMC1090 is an ideal solution for industries requiring high precision, rigidity, and productivity.
Product Parameters：
| Item | Name | ALGMC1090 |
| Structure type | Fixed beam gantry structure | |
| Gantry width(mm) | 980 | |
| Worktable | Worktable load (KG) | 2000 |
| Worktable size (mm) | 900*1000 | |
| T-slot width | 18mm | |
| X.Y.Z Axis | Travel (mm) | 900*1000*450(optional) |
| X axis guide（beam） | RGH45CA2R Roller | |
| Y axis guide | RGH45CA2R Roller | |
| Z axis guide | RGH45CA2R Roller | |
| Y axis screw | 3210 | |
| X axis screw | 3210 | |
| Z axis screw | 3205 | |
| Spindle | Spindle motor power | 7.5KW Servo |
| Spindle motor speed（r/min） | 0-8000 | |
| Spindle form | Mechanical spindle | |
| Spindle model brand | BT40(120) | |
| Nasal end to table distance (about)(mm) | 120-570 | |
| Main electrical components | Frequency converter | 7.5KW |
| Controller | 6MD | |
| Servo motor | Y2000W | |
| X.Z1300W | ||
| Hand wheel | ||
| 24W power module | 150W | |
| Relay | ||
| Breaker | ||
| 24V relay |
