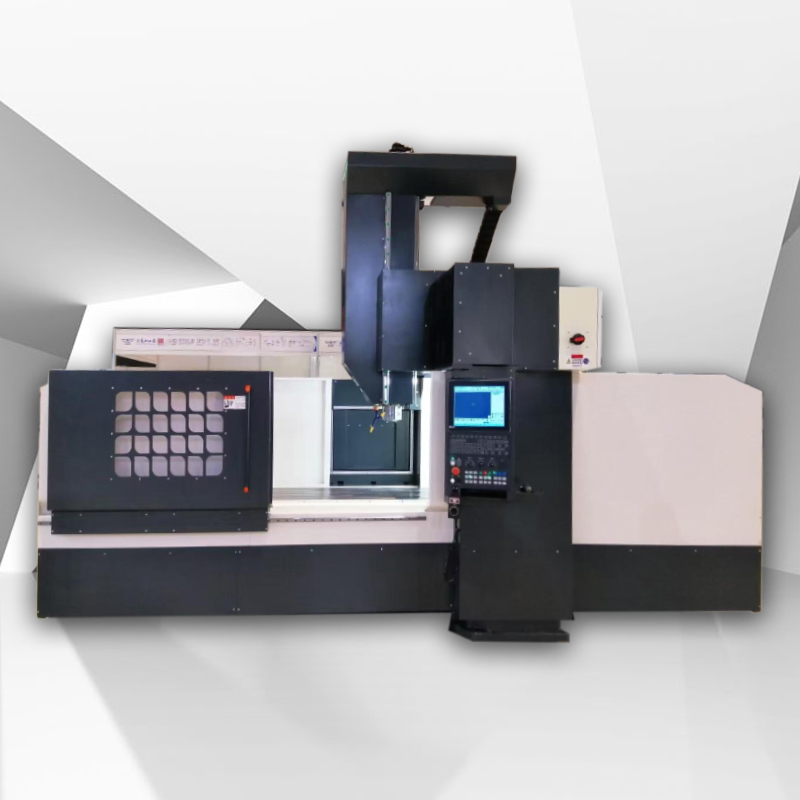

ALGMC1417 cnc gantry milling machine
The ALGMC1417 is a high-rigidity, high-precision fixed beam gantry machining center, built with a resin sand casting structure to ensure stability and vibration resistance. The worktable measures 1400×1700 mm, suitable for medium to large workpieces. All XYZ axes use high-precision roller linear guideways for efficient and accurate processing. This machine is widely used in mold manufacturing, automotive parts, aerospace, and construction machinery industries, suitable for milling, drilling, and tapping operations.
ALGMC1417 Fixed Beam Gantry Machining Center – Product Introduction
The ALGMC1417 is a high-rigidity, high-precision fixed beam gantry machining center, constructed with a resin sand casting structure for excellent stability and vibration resistance. Its worktable measures 1400×1700 mm with a high load capacity. The XYZ axis travels are 1400×1700×600 mm, all axes equipped with high-precision roller linear guideways and high-torque servo motors for fast response and accurate positioning.
This machine supports milling, drilling, tapping, boring, and other operations, allowing multi-process machining in one setup to improve production efficiency. It features a user-friendly interface and automatic lubrication system for convenient operation and maintenance.
Key Features:
-
Rigid structure for heavy-duty machining
-
Precision roller linear guideways + high-torque servo motors for accuracy
-
Large worktable to accommodate large and complex workpieces
-
Multi-process machining capability, enhancing production efficiency
-
Automatic lubrication system and user-friendly interface
Typical Application Industries:
-
Mold Manufacturing: large injection molds, die-casting molds, composite molds
-
Automotive Industry: engine housings, chassis components, gear housings
-
Aerospace: aluminum alloy components, support structures, precision parts
-
Construction Machinery: hydraulic parts, large metal structural components
Conclusion:
With high rigidity, precision, and multi-process capability, the ALGMC1417 is an ideal solution for machining large and complex components in mold manufacturing, automotive, aerospace, and construction machinery industries, effectively enhancing production efficiency and product quality.
Product Parameters：
| Item | Unit | Specs | |
| Structure type | Fixed beam gantry type | Resin sand casting | |
| Gantry width | mm | 1280 | |
| Worktable | Worktable load | KG | 2500 |
| Worktable size | mm | 1400*1700 | |
| T-slot width | mm | 18 | |
| X.Y.Z Axis | Travel | mm | 1400*1700*450 |
| X axis guide（beam） | 45CA2R Taiwan HIWIN | ||
| Y axis guide | 45CA2R Taiwan HIWIN | ||
| Z axis guide | 45CA2R Taiwan HIWIN | ||
| Y axis screw | 4010 Taiwan TBI、Taiwan PMI | ||
| X axis screw | 3210 Taiwan TBI、Taiwan PMI | ||
| Z axis screw | 3205 Taiwan TBI、Taiwan PMI | ||
| X.Y axis fast moving speed（no load） | mm/min | 8000-12000 | |
| Z axi fast moving speed | mm/min | 7000-10000 | |
| Fastest processing speed | mm/min | 6000 | |
| Positioning accuracy | Mm/mm | 0.02/300 | |
| Spindle | Spindle power | 7.5KW | 7.5 |
| Spindle motor speed | r/min | 0-8000 | |
| Spindle | BT40 Mechanical spindle Taiwan JIANCHUN | ||
| Spindle speed | r/min | 100-8000 | |
| Tool holder model | BT40 | ||
| Main electrical components | Frequency converter | KW | 11 |
| Controller | 21MA Taiwan SYNTEC（optionanl） | ||
| 24W power module | 150W Taiwan MW | ||
