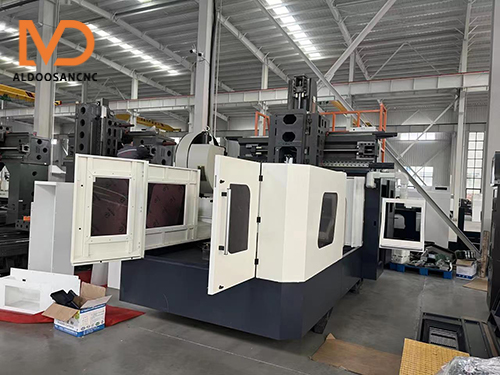

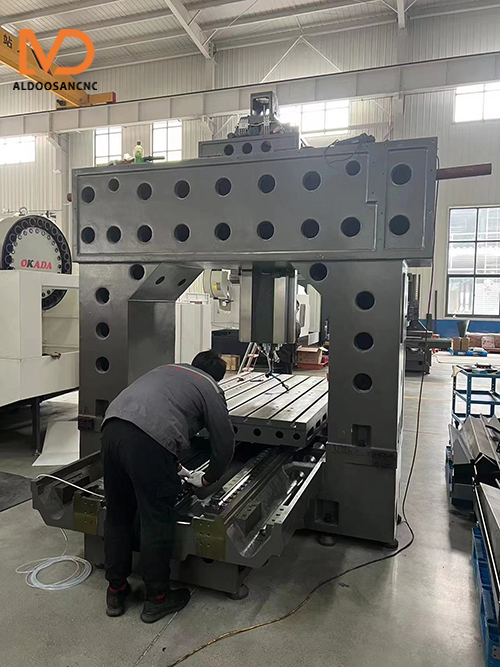

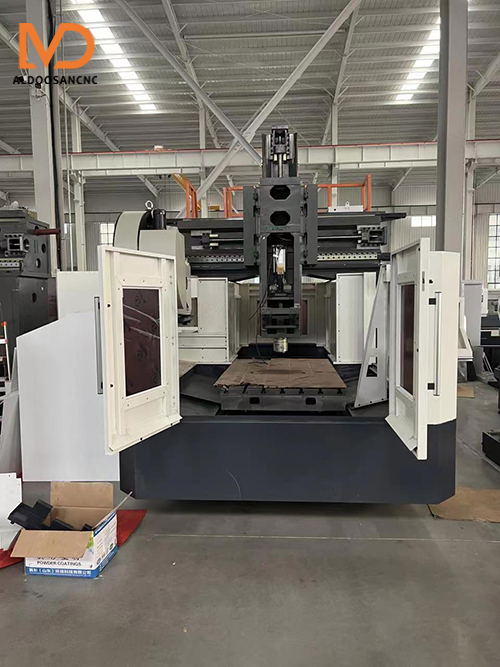

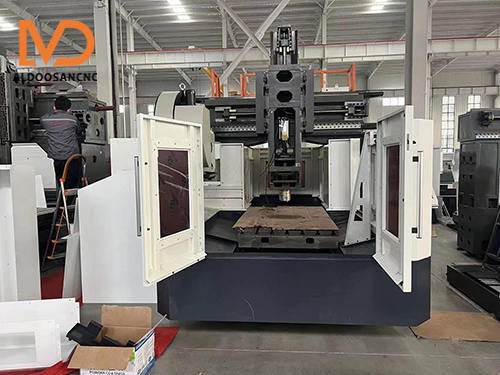

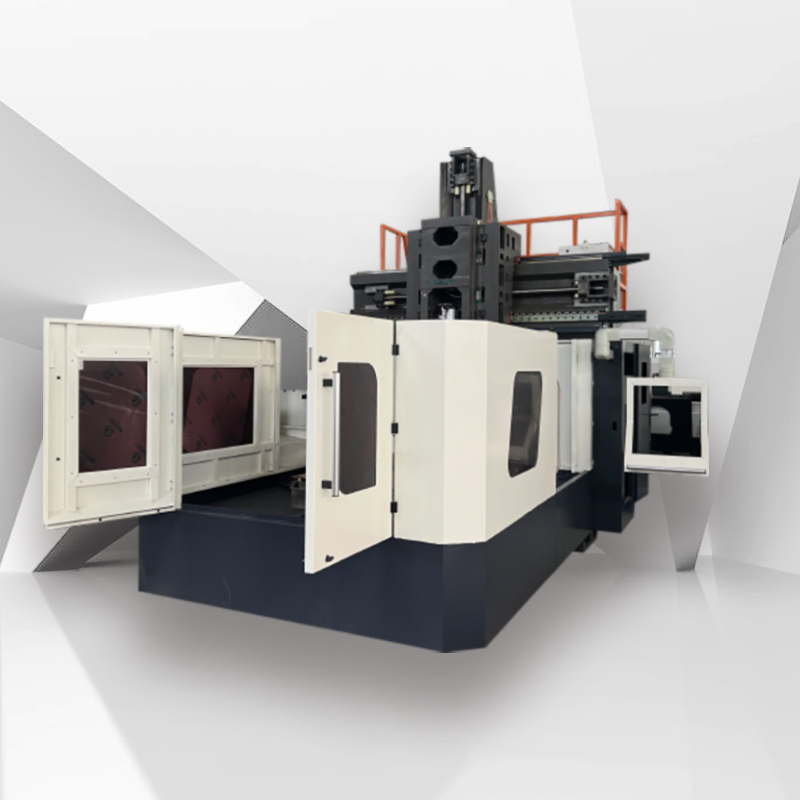

ALGMC2040 Fixed Beam Gantry Machining Center – Product Introduction
The ALGMC2040 is a large-scale, high-performance fixed beam gantry machining center, designed with a rigid resin sand casting structure that ensures excellent stability and vibration resistance. It features a spacious 2000×4000 mm worktable and XYZ axis travels of 2000×4000×1000 mm, making it ideal for machining large and heavy workpieces. Supporting multiple operations such as milling, drilling, and tapping, this machine is widely used in mold manufacturing, automotive parts, aerospace, construction machinery, and energy equipment industries, providing an efficient solution for large and complex component machining.
ALGMC2040 Fixed Beam Gantry Machining Center – Product Introduction
The ALGMC2040 is a large-scale, high-rigidity, and high-precision fixed beam gantry machining center, built with a resin sand casting structure to ensure excellent stability and vibration resistance. Designed for oversized workpieces and heavy-duty cutting, it features a 2000×4000 mm worktable with strong load capacity. The XYZ axis travels reach 2000×4000×1000 mm, with all axes equipped with high-precision roller linear guideways and powerful servo motors for fast response and accurate positioning.
This machine supports milling, drilling, boring, and tapping, enabling multi-process machining in a single setup for improved efficiency. Equipped with an automatic lubrication system, full enclosure protection, and a user-friendly interface, it ensures safe, stable, and convenient operation.
Key Features:
-
Extra-large worktable (2000×4000 mm) for large and heavy workpieces
-
Rigid resin sand casting structure with superior vibration resistance
-
Precision roller linear guideways + high-power servo drives for speed and accuracy
-
Multi-process capability to complete complex parts in one setup
-
Automatic lubrication and full protection for safe and easy operation
Typical Application Industries:
-
Mold Manufacturing: large injection molds, stamping dies, die-casting molds
-
Automotive Industry: body structure components, engine housings, large stamping dies
-
Aerospace: large aluminum alloy parts, structural supports, precision components
-
Construction Machinery: hydraulic parts, chassis components, large metal structures
-
Energy Equipment: wind turbine parts, power generation housings, nuclear power components
Conclusion:
With its extra-large travel range, high rigidity, and multi-process capability, the ALGMC2040 is the ideal choice for machining large and complex parts in mold manufacturing, automotive, aerospace, construction machinery, and energy equipment industries, ensuring superior precision, efficiency, and overall productivity.
Product parameters:
| Article | Unit | Specs | |
| Type of structure | Fixed beam gantry type | Resin sand casting | |
| Width of the portico | mm | 1280 | |
| Desk | Loading the workbench | KG | 2500 |
| Worktable size | mm | 2000*4000 | |
| T-slot width | mm | 18 | |
| Axis X.Y.Z | Travel | mm | 2000*4000*450 |
| X-axis guide (beam) | 45CA2R Taiwan HIWIN | ||
| Y-axis guide | 45CA2R Taiwan HIWIN | ||
| Z-axis guide | 45CA2R Taiwan HIWIN | ||
| Rapid movement speed of X and Y axis (no load) | mm/min | 8000-12000 | |
| Z-axis rapid movement speed | mm/min | 7000-10000 | |
| Faster processing speed | mm/min | 6000 | |
| Positioning accuracy | Mm/mm | 0.02/300 | |
| Repositioning accuracy | mm | 0.02 | |
| Spindle | Spindle power | 7.5KW | 7.5 |
| Spindle motor speed | r/min | 0-8000 | |
| Spindle speed | r/min | 100-8000 | |
| Main electrical components | Frequency converter | KW | 11 |
| Controller | 21MA Taiwan SYNTEC (optional) | ||
