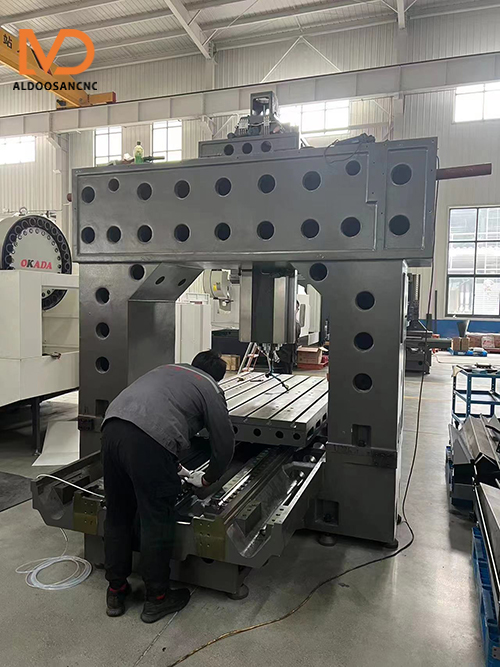

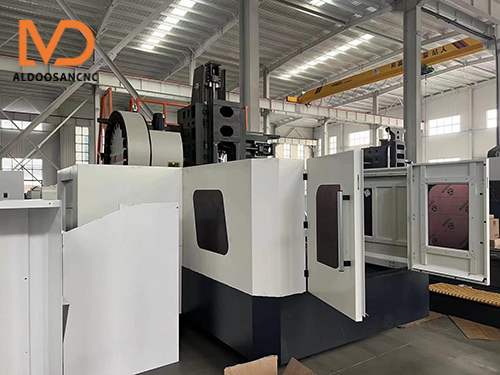

ALGMC2116 Fixed Beam Gantry Machining Center – Product Introduction
The ALGMC2116 is a high-performance fixed beam gantry machining center, built with a rigid resin sand casting structure that provides excellent stability and vibration resistance. It features a 2100×1600 mm worktable with large XYZ axis travels, meeting the multi-process machining needs of medium to large workpieces. Capable of milling, drilling, and tapping, the machine offers flexible and efficient operation. It is widely used in mold manufacturing, automotive parts, construction machinery, aerospace, and energy equipment industries, making it an ideal choice for improving productivity and machining accuracy.
ALGMC2116 Fixed Beam Gantry Machining Center – Product Introduction
The ALGMC2116 is a high-performance fixed beam gantry machining center, designed with a rigid resin sand casting structure that provides excellent stability and vibration resistance. It is equipped with a large 2100×1600 mm worktable and long XYZ axis travels, making it suitable for multi-process machining of medium to large workpieces. All three axes adopt high-precision roller linear guideways and a powerful spindle system, ensuring high rigidity, efficiency, and accuracy.
Key Features
-
High-rigidity structure: Resin sand casting design ensures long-term stability and superior vibration resistance.
-
Large travel design: Extended XYZ axis travel to accommodate medium and large parts.
-
Multi-process capability: Supports milling, drilling, and tapping for higher productivity.
-
High-precision control: Advanced CNC system with roller linear guideways guarantees machining accuracy.
-
Strong load capacity: Large worktable supports heavy-duty workpieces.
Application Industries
-
Mold Manufacturing: Suitable for injection molds, stamping molds, and large precision molds.
-
Automotive Parts: Widely used for body structures, engine components, and mold parts.
-
Aerospace: Ideal for aircraft structural components and high-strength material machining.
-
Construction Machinery: Applied to large mechanical components and structural parts.
-
Energy Equipment: Suitable for wind power, nuclear power, and renewable energy equipment components.
Conclusion
With its combination of rigidity, precision, and versatility, the ALGMC2116 is the ideal solution for machining medium to large complex components, helping manufacturers enhance both productivity and product quality.
Product parameters:
| Item | Name | ALGMC2116 | Brand |
| Structure type | Fixed beam gantry structure | Resin sand cast iron | |
| Gantry width(mm) | 1680 | ||
| Worktable | Worktable load (KG) | 4000 | |
| Worktable size (mm) | 1600*2000 | ||
| T-slot width | 18mm | ||
| X.Y.Z Axis | Travel (mm) | 1600*2000*700(Optional) | |
| X axis guide（beam） | HGH55CA2R | Taiwan HIWIN | |
| Y axis guide | HGH55CA2R | Taiwan HIWIN | |
| Z axis guide | HGH55CA2R | Taiwan HIWIN | |
| Y axis screw | 5010 | Taiwan TBI、Taiwan PMI | |
| X axis screw | 5010 | Taiwan TBI、Taiwan PMI | |
| Z axis screw | 4005 | Taiwan TBI、Taiwan PMI | |
| Spindle | Spindle motor power | 15KW Servo | FOTON or CTB |
| Spindle motor speed（r/min） | 0-6000 | ||
| Spindle form | Mechanical spindle | ||
| Spindle model brand | BT50 | Taiwan JIANCHUN | |
| Cooling form | Water cooling | ||
| Nasal end to table distance (about)(mm) | 150-1000 | ||
| Main electrical components | Frequency converter | 15KW | SIFANG |
| Controller | 21MA | Taiwan SYNTEC | |
| Servo motor | XZ3000W | ||
| Y4400W | Japan YASKAWA 7 series absolute value | ||
| Hand wheel | Original | ||
| 24W power module | 150W | Taiwan MW | |
| Relay | Schneider | ||
| Breaker | Schneider | ||
| 24V relay | Omron |
