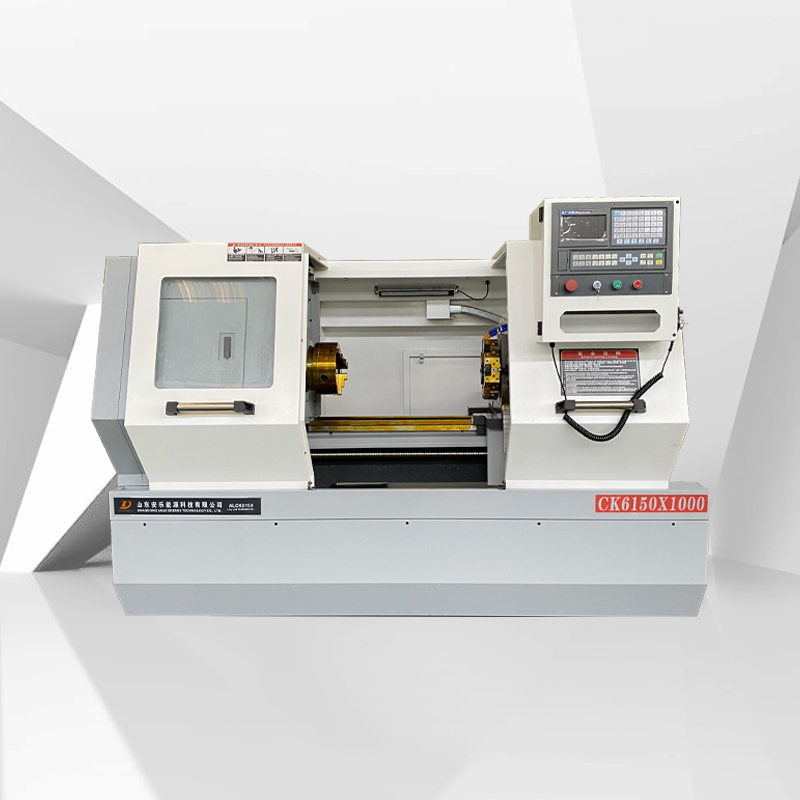

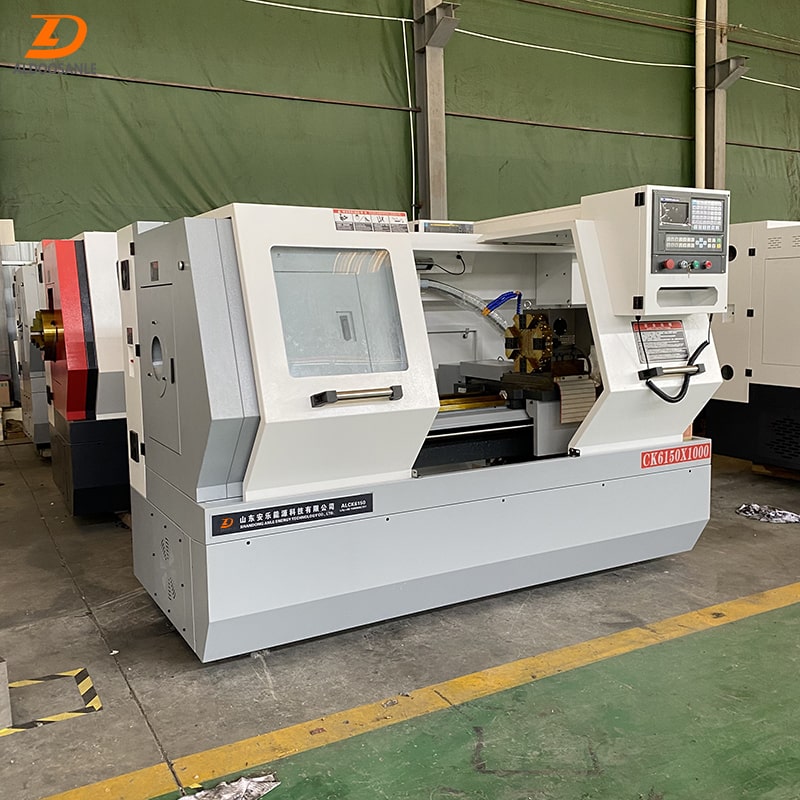

CK6150 CNC Lathe machine
The ALCK6150 CNC lathe is primarily designed for general machinery, automotive parts, and other fields, focusing on precision turning of medium-to-large workpieces with outstanding cost-effectiveness. It features a maximum machining diameter of 500mm and a machining length of 1000-3000mm (optional). It is compatible with materials such as 45# steel and stainless steel, accommodating both batch and custom machining.
Core features: a high-strength cast iron bed, high-frequency hardened guideways, and precision ball screws, achieving repeatability of ≤0.005mm. It comes standard with a Fanuc/Siemens system, supporting G-code and graphical simulation for easy operation. The spindle speed ranges from 50-2000 rpm (11kW motor), achieving a surface finish of Ra1.6μm.

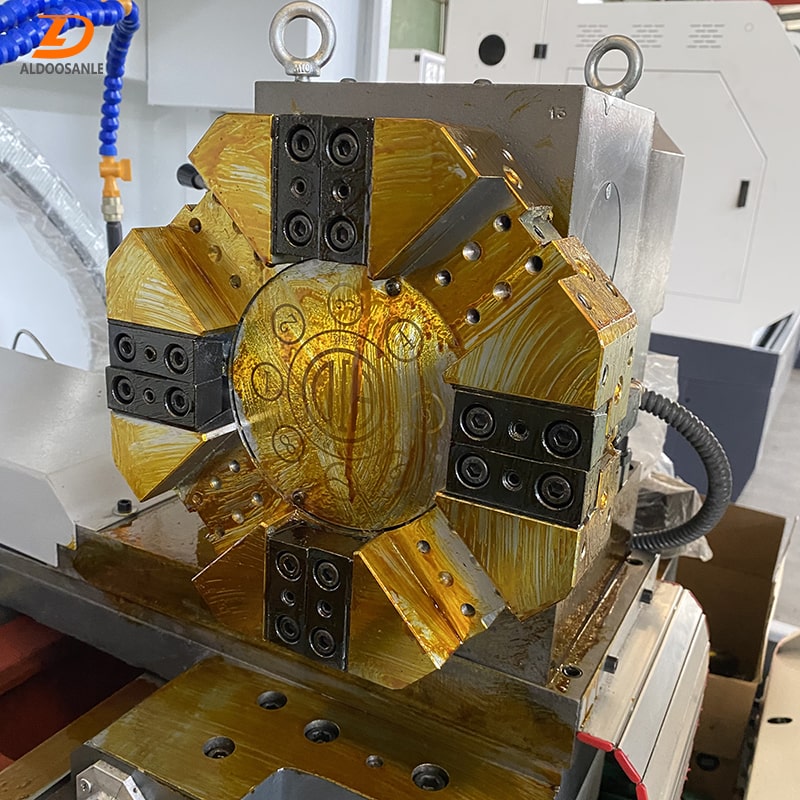

In addition, a 12-station electric turret (tool change ≤0.8s) reduces auxiliary time, and optional hydraulic chucks and automatic feeding make it an ideal choice for small and medium-sized factories seeking to upgrade their precision machining capabilities and reduce costs.
Efficient and Precise Choice – CNC Lathe CK6150
Why Choose CK6150?
-
Powerful Machining Capacity
With a swing diameter of 500mm and strong spindle torque, the CK6150 easily handles cutting of various metals such as steel, iron, stainless steel, and alloys. Both roughing and finishing are efficient and reliable. -
Precision and Stability
A high-rigidity bed and precision ball screws ensure long-term stability. The CK6150 guarantees accurate dimensions, superior surface finish, and reduces rework, saving you significant costs. -
Easy Operation & Maintenance
User-friendly CNC system suitable for operators at different levels. Simple maintenance reduces downtime and keeps your production line running at high efficiency.
Applications
The CK6150 is widely used in:
-
Automotive parts manufacturing
-
Oil machinery components
-
Agricultural machinery parts
-
Mold industry
-
Hardware manufacturing
Whether in mass production or small-batch, multi-variety orders, the CK6150 provides reliable machining solutions.
Choose CK6150 – Choose Efficiency and Trust
In today’s competitive market, efficiency means leadership. The CK6150 CNC lathe, with its high precision, stability, and cost-effectiveness, has already helped many customers win more orders and expand their market.
Contact us now to get more details and a competitive quote – let’s take your production to the next level!
ALCK6150X1000 CNC Lathe Detailed Specifications
Maximum Swing Over Bed
Unit: mm, Specification: Φ500
Maximum Swing Over Slide
Unit: mm, Specification: Φ290
Maximum Cutting Diameter
Unit: mm, Specification: Φ500
Maximum Processing Length
Unit: mm, Specification: 1000
X/Z Axis Maximum Stroke
Unit: mm, Specification: 300/1000 (X-axis 300mm, Z-axis 1000mm)
X/Z Axis Minimum Displacement Unit
Unit: mm, Specification: 0.001
Spindle Hole Diameter
Unit: mm, Specification: Φ82
Turret Type (Tool Holder) Type
Unit: /, Specifications: 4-station turret (customizable)
Weight
Unit: kg, Specifications: 2500
Dimensions
Unit: mm, Specifications: 3030 × 1600 × 2050
