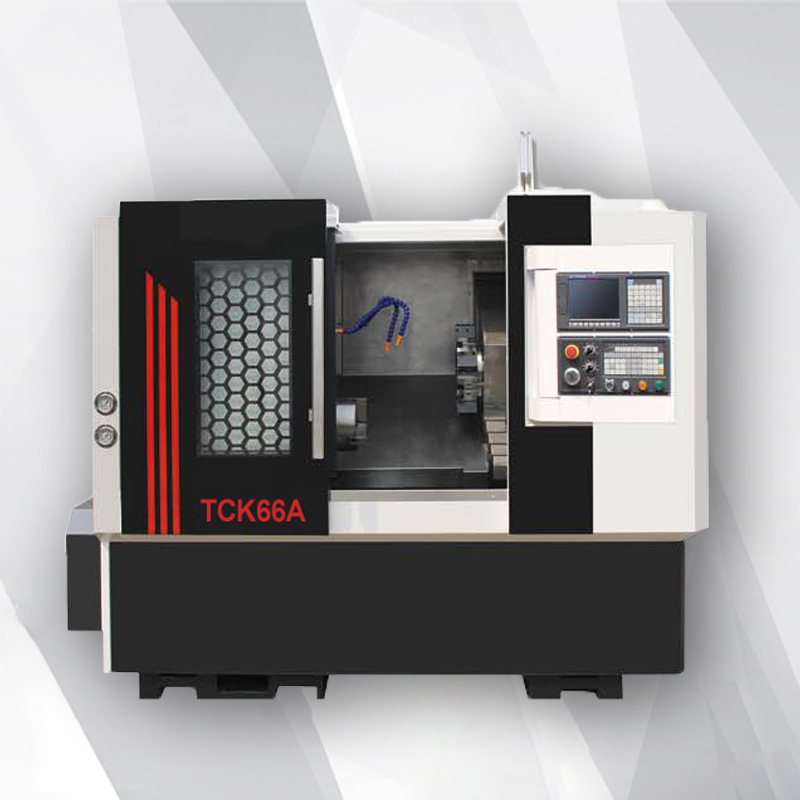

ALTCK66A Inclined Bed Linear Rail CNC Lathe ALTCK66A Inclined Bed Linear Rail CNC Lathe adopts a 30° integral inclined bed structure and is equipped with high-precision preload linear rolling guide rails from Taiwan, China. The machine tool has high position accuracy and smooth chip removal, suitable for high-speed and high-precision processing.
ALTCK66A slant bed cnc lathe is a high-speed, high-precision, high-reliability inclined bed machine tool. Adopting 30° overall inclined bed structure, equipped with high-precision preload Taiwan linear rolling guide, the machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining. High-speed, high-precision, high-rigidity shell-type spindle unit, servo spindle motor, can reach higher spindle speed. The X/Z direction servo motor is directly connected to the lead screw through a large torque and low inertia elastic coupling.
1. High speed, high precision and high reliability.
2. Adopting 30° overall inclined bed structure, equipped with high-precision preload Taiwan linear rolling guide, the machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
3. High-speed, high-precision, high-rigidity shell-type spindle unit, servo spindle motor, can reach higher spindle speed.
4.Adopt advanced centralized automatic lubricating device, regular and quantitative automatic intermittent lubrication, stable and reliable work.
1. Railway locomotive manufacturing industry: ALTCK66A cnc lathe machining automatic numerical control lathe is aimed at high-speed rail locomotive body, axle, wheel and other parts.
2. Mold processing and manufacturing industry: the precision of parts is required to be high, and the surface precision mainly refers to the surface roughness. Cylindrical parts that require high cylindricity; conical parts that require high plane straightness, roundness, and inclination; rotating parts with special threads.ALTCK66A slant bed cnc lathe numerical control lathe can solve this problem well.
3. Defense industry: The ability of ALTCK66A slant bed cnc lathe to provide replacement parts and upgrade components on demand is especially useful in this industry. Therefore, it is suitable for components that require continuous innovation and safety.
4. Medical business field: ALTCK66A slant bed cnc lathe can be used for various medical safety materials. Since the process is suitable for one-off custom parts, it has many applications in the medical industry. The tight tolerances offered by the ALTCK66A cnc lathe machine are critical for high-performance machining of medical components.
1 CNC controller
2. Linear guide rail
3. Spindle unit speed 4000rpm
4.6 inch hollow hydraulic chuck

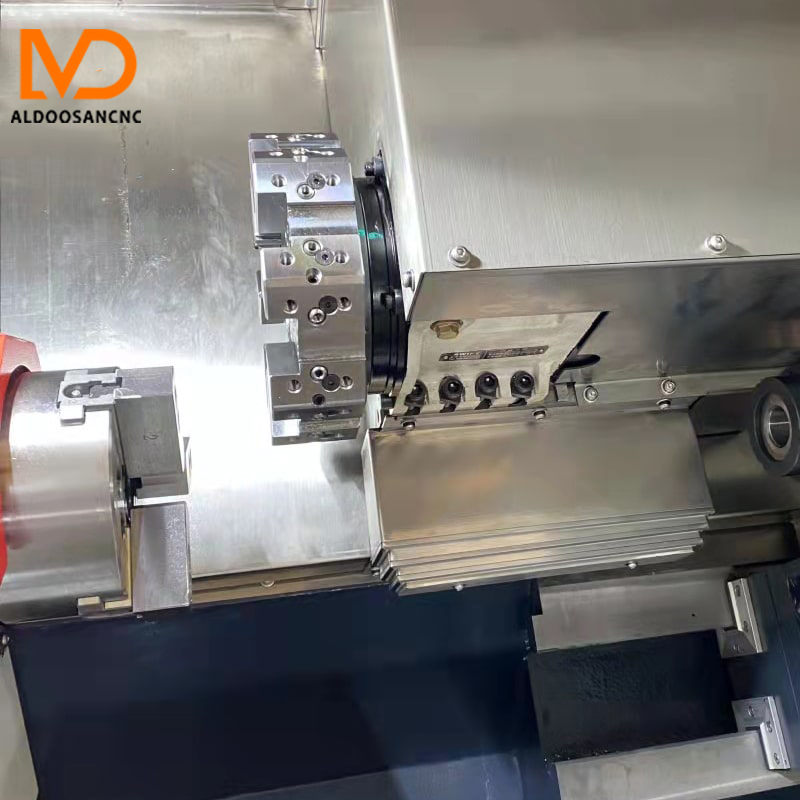

5.8 station hydraulic turret
6. Automatic lubrication system
7. Automatic cooling system
8. Work lights
1. Hydraulic 4-jaw chuck
2. Servo Turret/Power Turret
3. Chip conveyor
4. FANUC CNC controller
