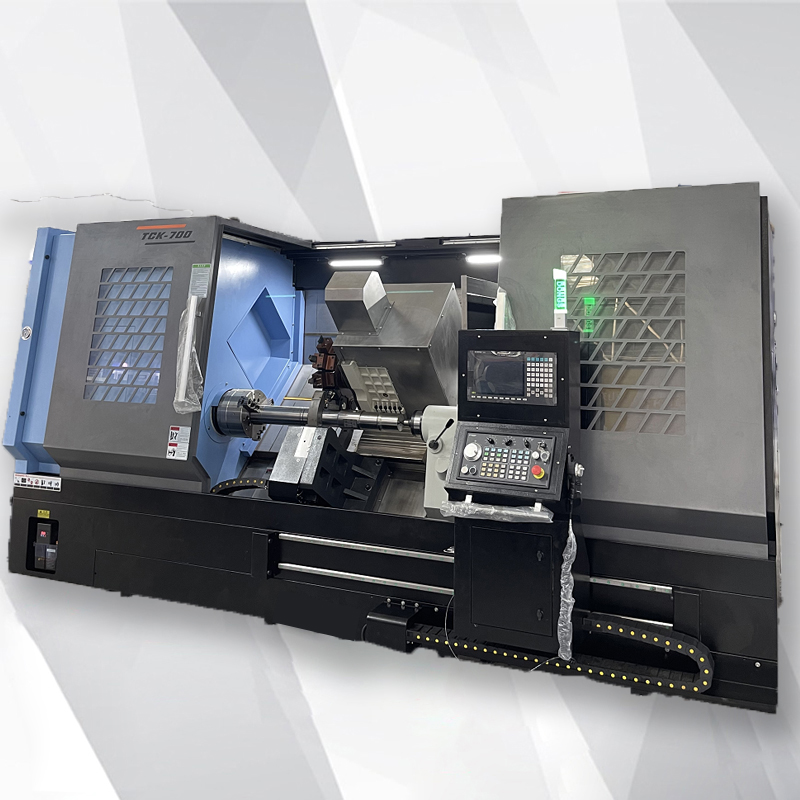

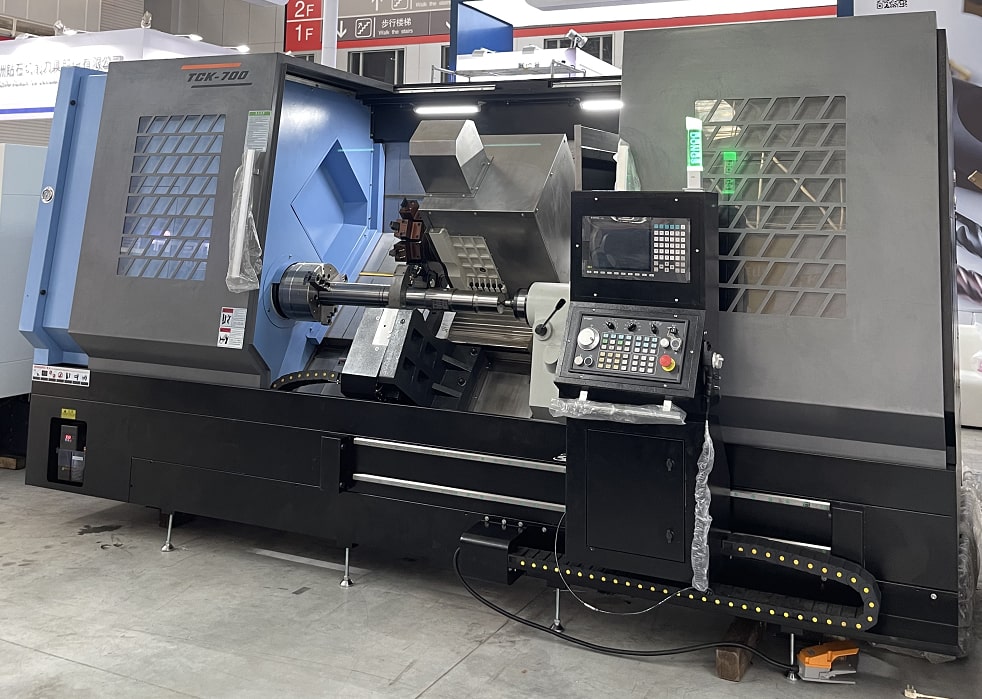

ALTCK700 CNC turning and milling machine

ALTCK700 CNC machine tool has good stability and rigidity. The lathe is cast by resin sand technology, and the internal rib layout is reasonable, which can ensure the integrity and precision of the bed. The guide rail adopts imported linear roller guide rail, which can improve feeding accuracy and reduce frictional resistance. At the same time, the CNC lathe has good rigidity and anti-vibration ability, and can obtain high machining accuracy and production efficiency.

Features of ALTCK700 CNC machine tool:

1. ALTCK700 CNC machine tool has good stability and rigidity.

2. The integrity and precision of the ALTCK700 bed are high

3. The guide rail adopts imported linear roller guide rail to improve feeding accuracy and reduce frictional resistance

4. At the same time, ALTCK700 CNC lathe has good rigidity and anti-vibration ability, and can obtain high machining accuracy and production efficiency.

5. ALTCK700 CNC lathe can also increase the speed of rapid movement and speed up work efficiency.

ALTCK700 CNC metal lathe application:

1. Railway locomotive manufacturing industry: ALTCK700 CNC lathe processing automatic CNC lathe is aimed at high-speed rail locomotive body, axle, wheel and other parts.

2. Mold processing and manufacturing industry: the precision of parts is required to be high, and the surface precision mainly refers to the surface roughness. Cylindrical parts with high requirements for cylindricity; conical parts with high requirements for plane straightness, roundness and inclination; rotating parts with special threads. ALTCK700 inclined bed CNC lathe CNC lathe can solve this problem very well.

3. Defense industry: The ability of the ALTCK700 inclined bed CNC lathe to provide replacement parts and upgrade components on demand is particularly useful in this industry. Therefore, it is suitable for components that require continuous innovation and safety.

4. Medical business field: ALTCK700 inclined bed CNC lathe can be used for various medical safety materials. Since the process is suitable for one-off custom parts, it has many applications in the medical industry. The tight tolerances provided by the ALTCK700 CNC lathe are critical for high-performance machining of medical components.

ALTCK700 cnc lathe machine standard configuration:

1. Servo main motor

2.140 mm spindle unit (3500 rpm)

3. Taiwan Straight Line Railway

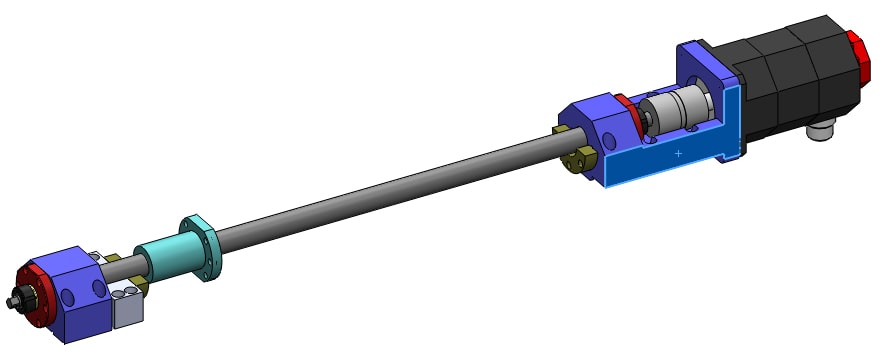

4. Ball screw

5. Hydraulic chuck

ALTCK700 CNC lathe optional configuration:

1. Spindle unit

2. Ball screw

3.6/8 station electric turret

4.8/12 station hydraulic turret

5. Hydraulic Chuck

6. Chip conveyor

Video：

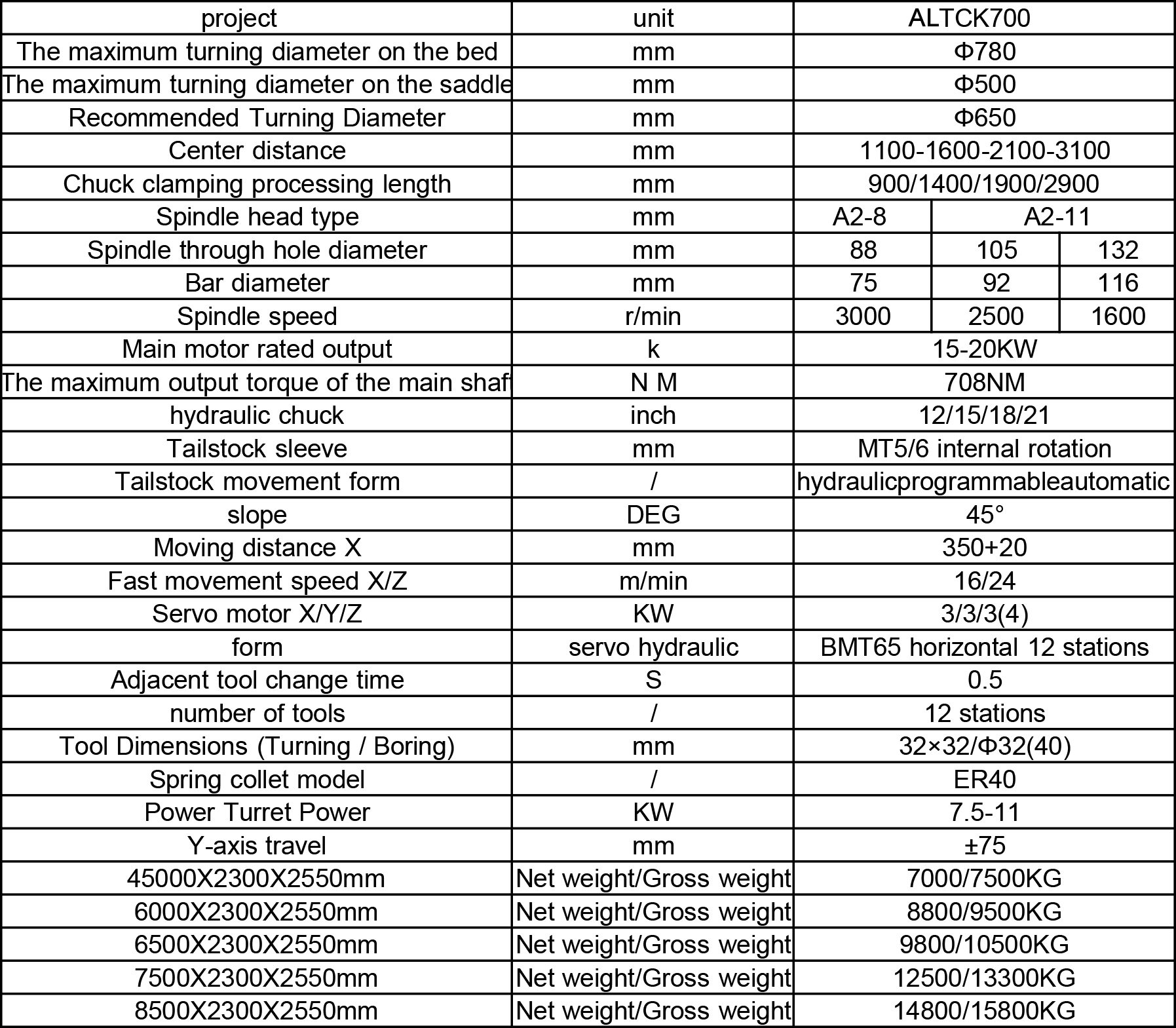

Product parameters:
