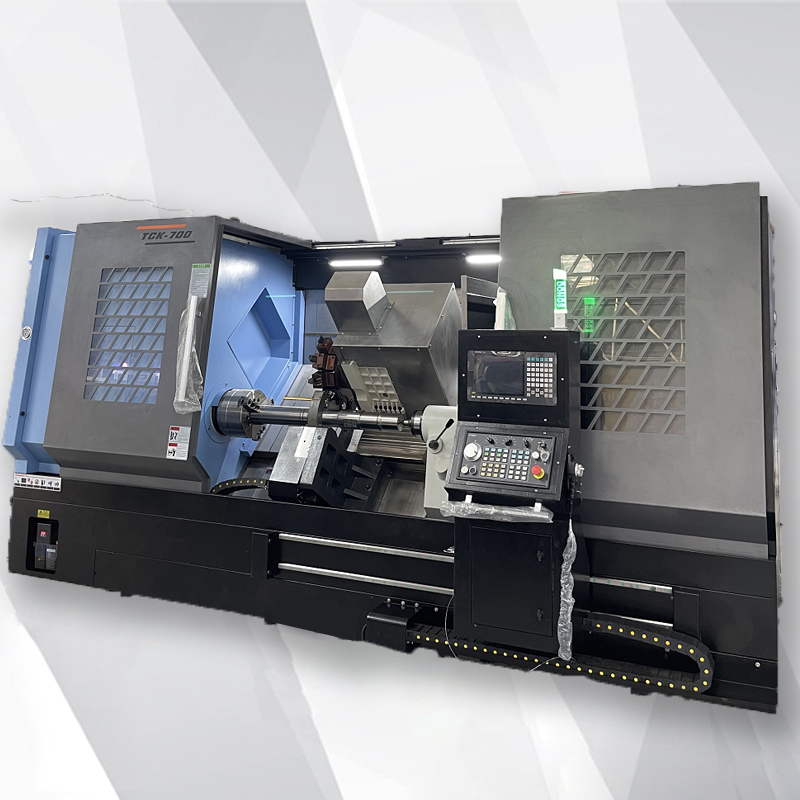

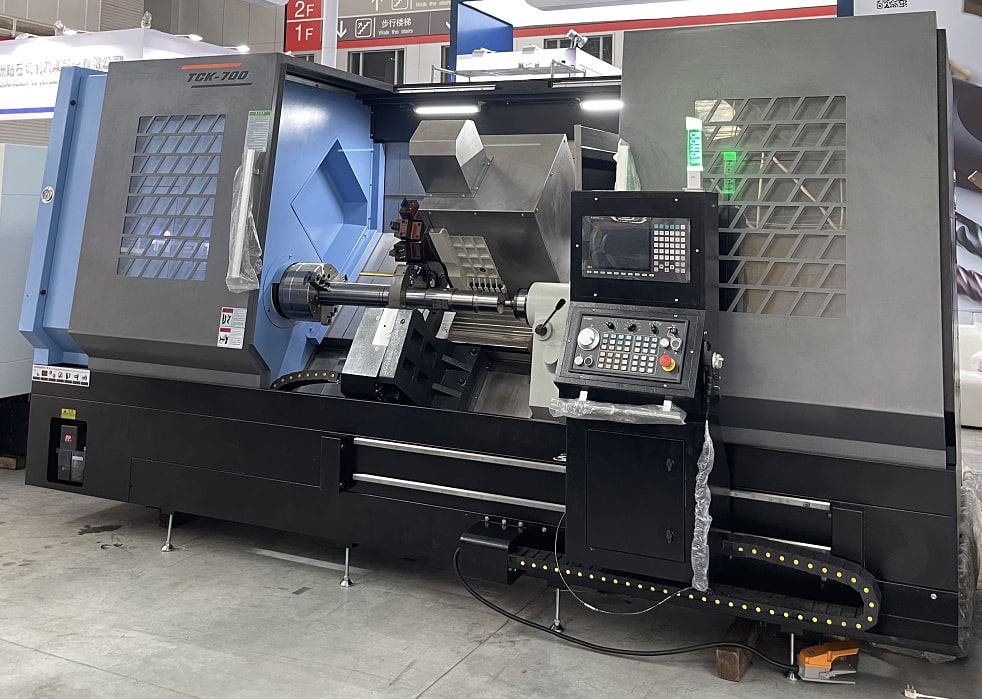

ALTCK700 CNC turning and milling machine

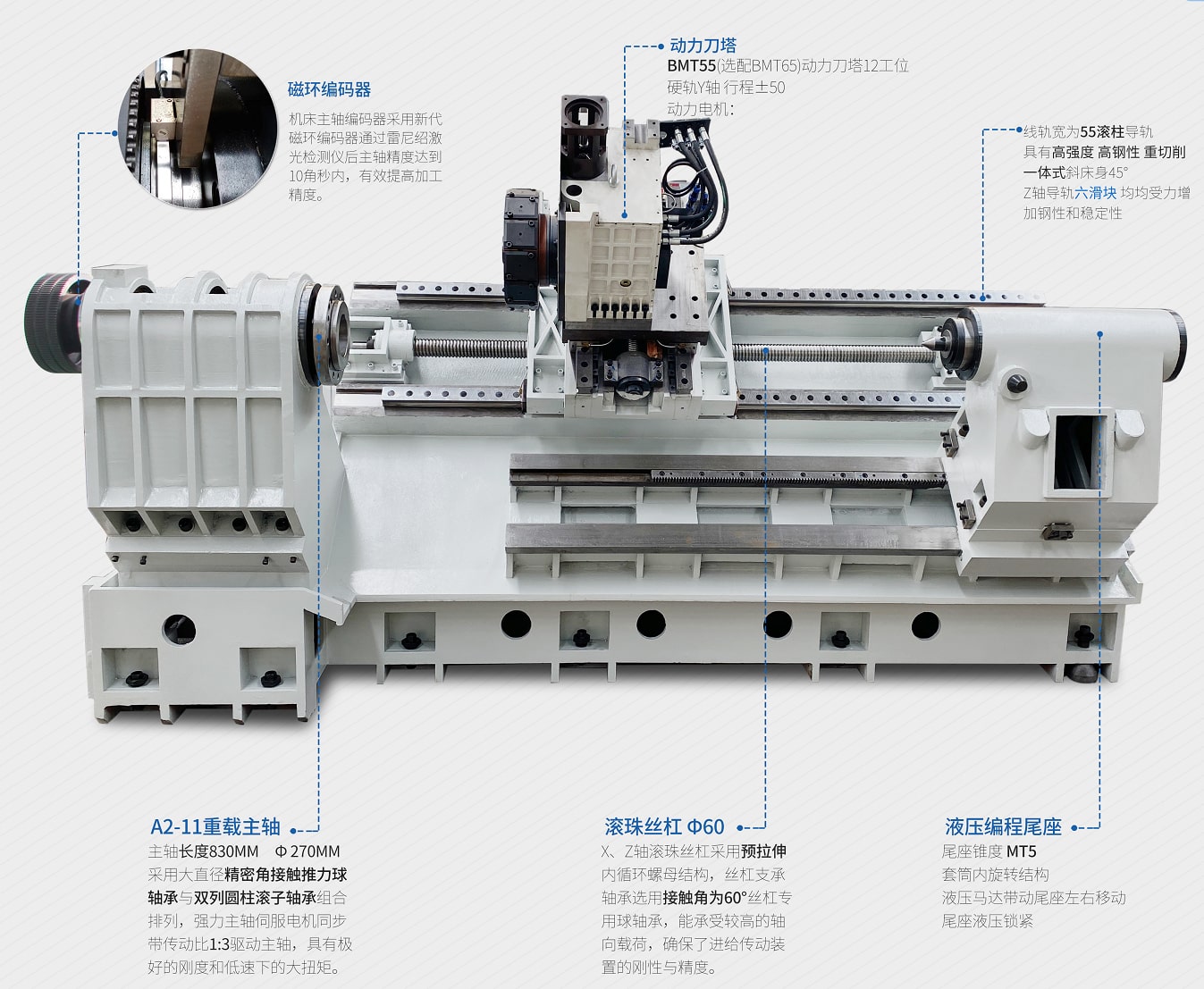

ALTCK700 CNC machine tool has good stability and rigidity. The lathe is cast by resin sand technology, and the internal rib layout is reasonable, which can ensure the integrity and precision of the bed. The guide rail adopts imported linear roller guide rail, which can improve feeding accuracy and reduce frictional resistance. At the same time, the CNC lathe has good rigidity and anti-vibration ability, and can obtain high machining accuracy and production efficiency.

Features of ALTCK700 CNC machine tool:

1. High-precision processing: The metal ALTCK700 CNC lathe has excellent processing accuracy and can achieve micron-level workpiece processing to ensure product quality and precision.

2. High-efficiency production: The metal ALTCK700 CNC lathe has high-speed processing capabilities, which can significantly shorten the production cycle, improve production efficiency, and reduce production costs.

3. Multi-function operation: The metal ALTCK700 CNC lathe has a variety of processing functions, including turning, drilling, milling, etc., and can meet the diverse processing needs of different industries.

4. Digital control system: Equipped with an advanced digital control system, it is simple to operate and highly precise, and can realize automated processing and production of complex workpieces.

5. Durability: The horizontal ALTCK700 CNC lathe is made of high-quality materials and has excellent durability and stability, suitable for long-term, high-intensity production operations.

6. Wide applicability: ALTCK700 CNC lathe is suitable for multiple industries, including aerospace, automobile manufacturing, mold manufacturing, medical equipment manufacturing and other fields.

ALTCK700 CNC metal lathe application:

1. Aerospace manufacturing: In the aerospace field, the horizontal CNC lathe ALTCK700 is used to manufacture aviation parts, such as engine parts, wings, propellers, etc., ensuring high precision and quality.

2. Automobile manufacturing: In the automobile manufacturing industry, the horizontal CNC lathe ALTCK700 is used to manufacture automobile parts, including engine parts, brake systems, transmission systems, etc., which improves the performance and reliability of the automobile.

3. Mold manufacturing: Mold manufacturing is an important application field of the horizontal CNC lathe ALTCK700, which is used to manufacture various types of molds, such as plastic molds, metal molds, etc., to support the production of other manufacturing industries.

4. Medical equipment manufacturing: In the field of medical equipment manufacturing, the inclined bed ALTCK700 CNC lathe is used to manufacture medical equipment parts, such as surgical tools, implants, etc., ensuring its high precision and hygienic standards.

5. General manufacturing industry: In addition to the above-mentioned industries, the inclined bed ALTCK700 CNC lathe is also widely used in the general manufacturing industry to manufacture various complex parts and workpieces to meet the needs of different industries.

ALTCK700 cnc lathe machine standard configuration:

1. Servo main motor

2.140 mm spindle unit (3500 rpm)

3. Taiwan Straight Line Railway

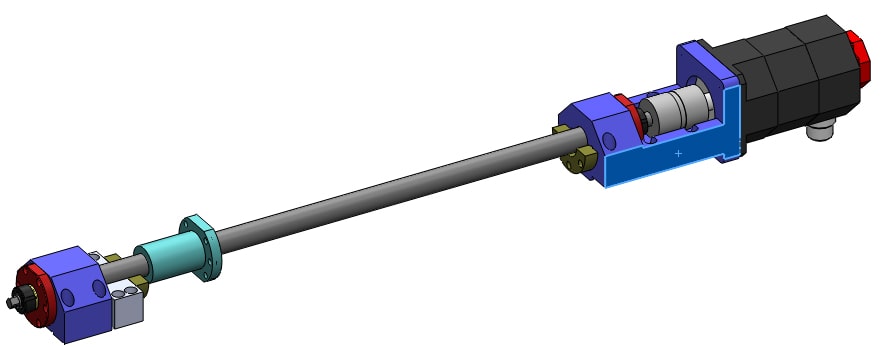

4. Ball screw

5. Hydraulic chuck

ALTCK700 CNC lathe optional configuration:

1. Spindle unit

2. Ball screw

3.6/8 station electric turret

4.8/12 station hydraulic turret

5. Hydraulic Chuck

6. Chip conveyor

Video：

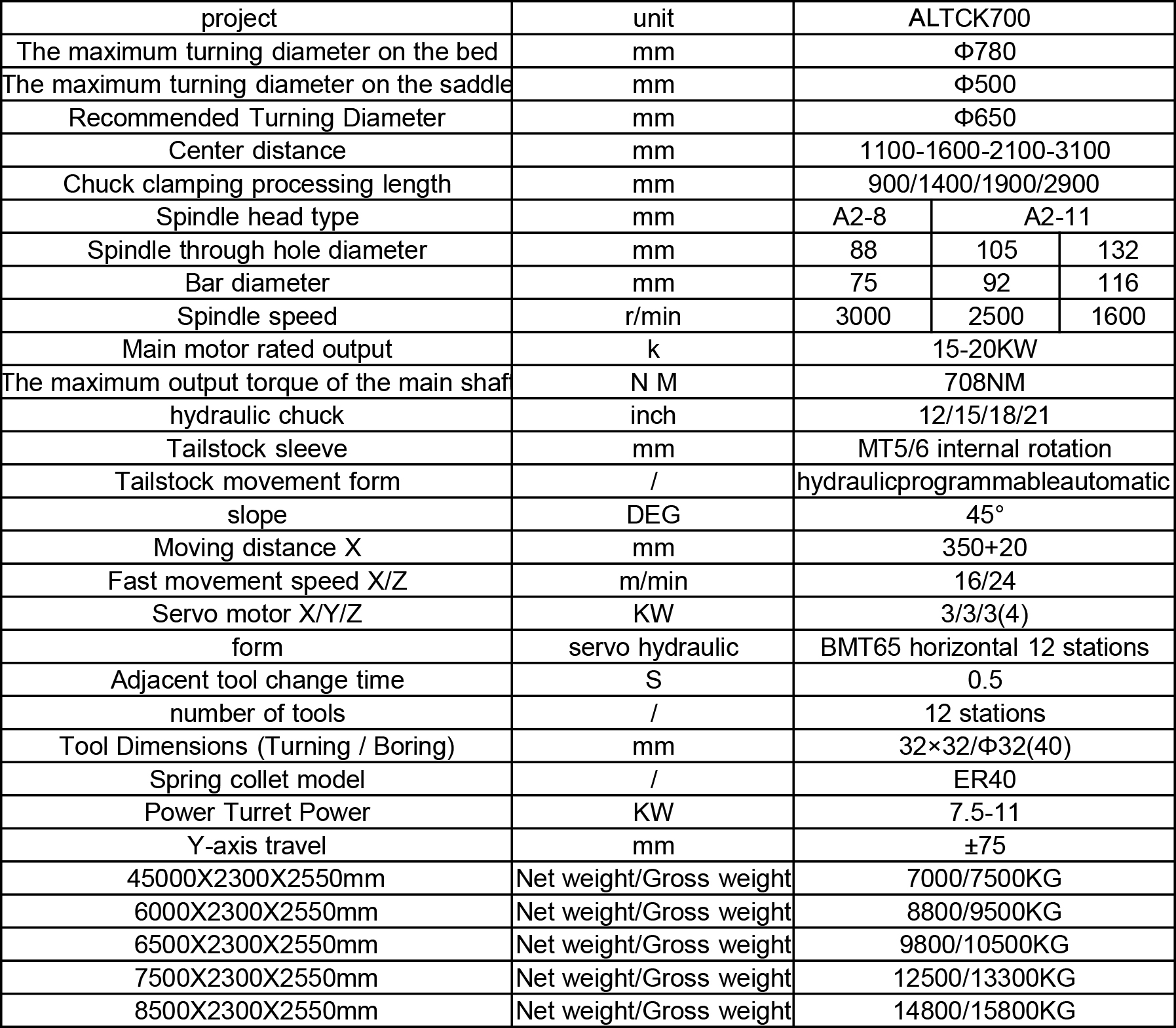

Product parameters:
