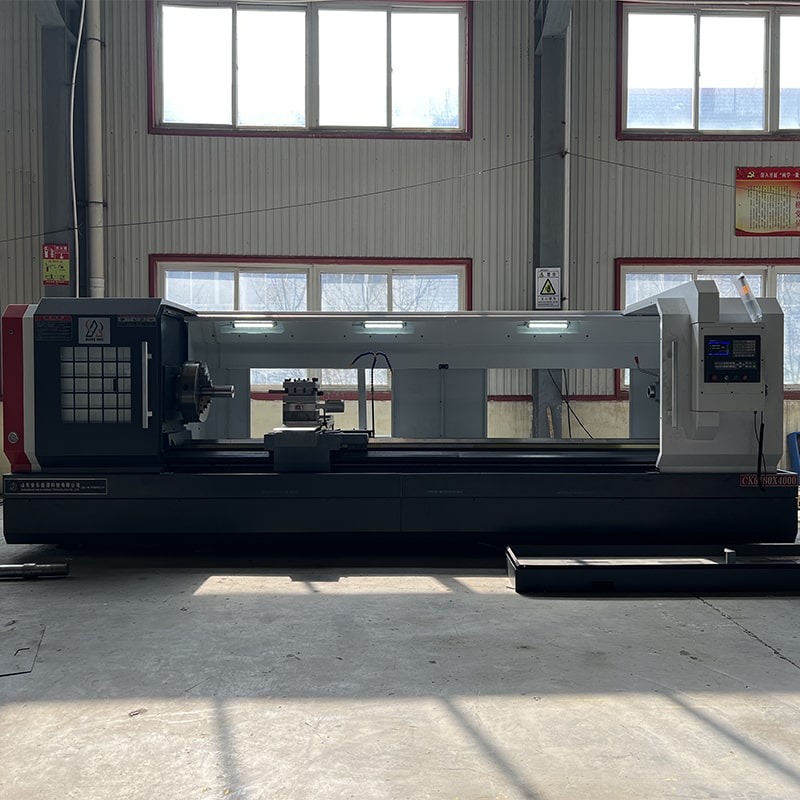

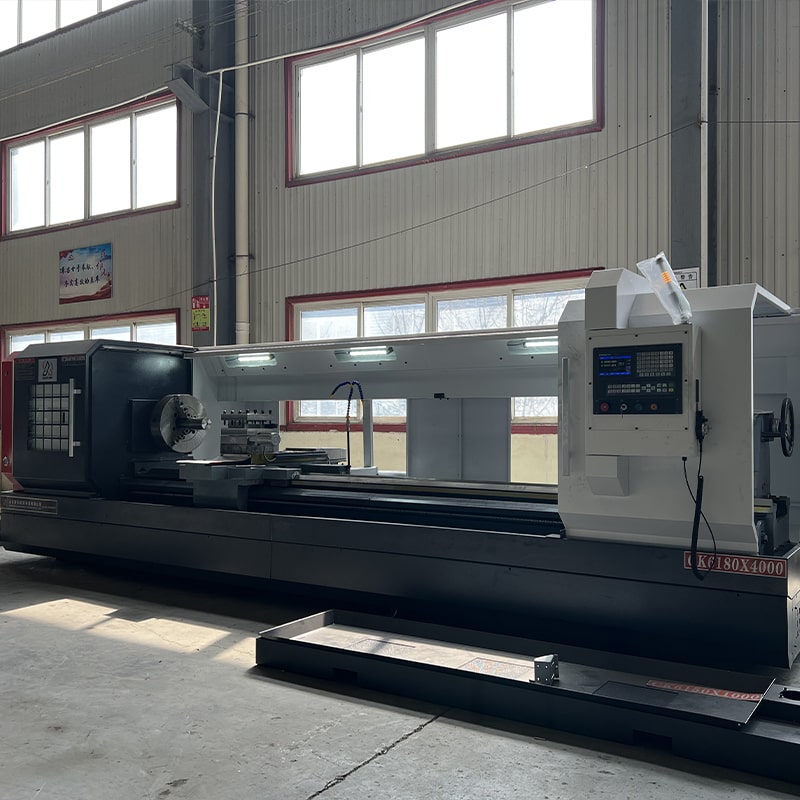

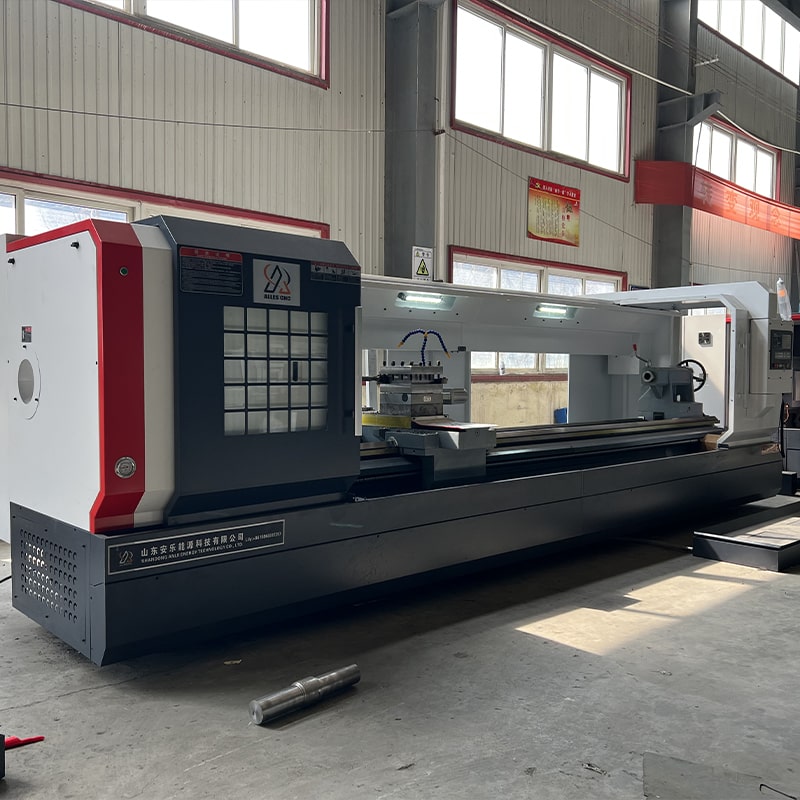

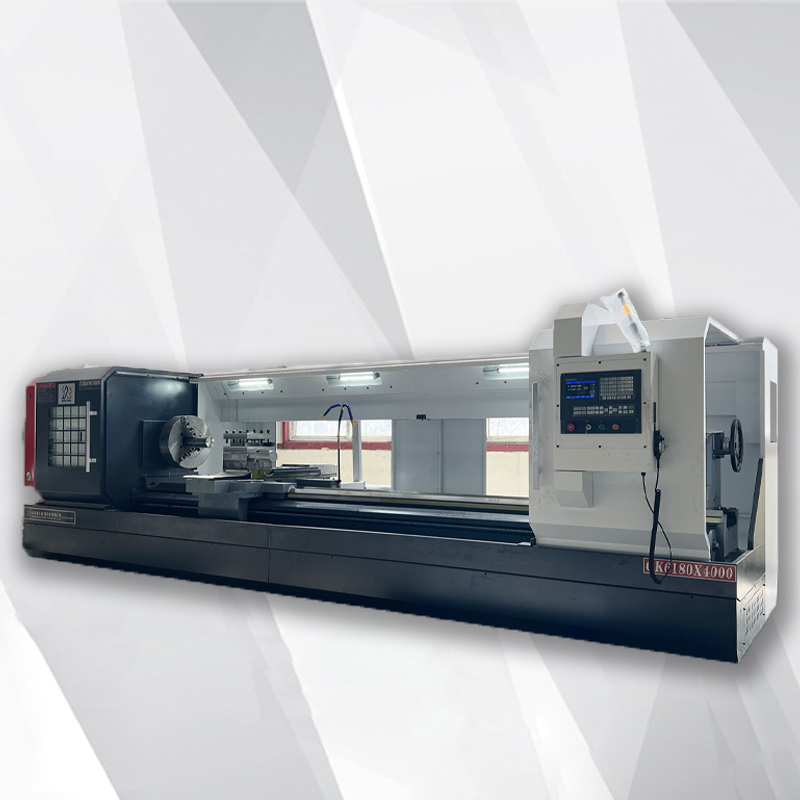

ALCK6180×4000 CNC lathe

ALCK6180×4000 CNC lathe is suitable for processing various steel, cast iron and non-ferrous metal large and medium-sized parts, with high power and good rigidity. It is especially suitable for powerful cutting, cutting the inner circle, outer circle, end face and metric and imperial parts of various workpieces. Thread, etc., and can undertake drilling and boring processing.

ALCK6180X4000 flat bed CNC lathe features:

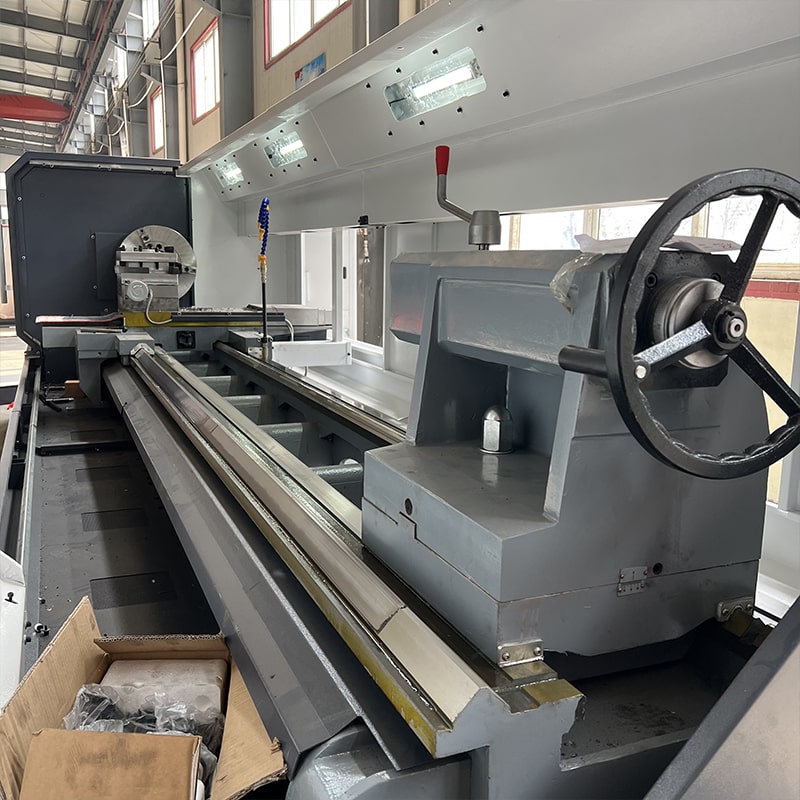

1. High stability hard rail bed

2. The main shaft has three gears, stepless frequency conversion speed regulation within the gear

3. High-strength base

4. Widen the compartment

5. Automatic centralized lubrication

ALCK6180×4000 Horizontal CNC Lathe Application:

1. Railway locomotive manufacturing industry: ALCK6180×4000 automatic numerical control lathe is aimed at high-speed rail locomotive body, axle, wheel and other parts.

2. Mold processing and manufacturing industry: the precision of parts is required to be high, and the surface precision mainly refers to the surface roughness. Cylindrical parts with high requirements for cylindricity; conical parts with high requirements for plane straightness, roundness and inclination; rotating parts with special threads.

3. Defense industry: The ability of ALCK6180×4000 automatic CNC lathe to provide replacement parts and upgrade components on demand is especially useful in this industry.

4. Medical business field: ALCK6180×4000 flat CNC lathe can be used for various medical safety materials. Since the process is suitable for one-off custom parts, it has many applications in the medical industry.

Standard configuration of ALCK6180×4000 turning CNC lathe:

1. Numerical control system,

2. Integral landing bed,

3. The width of the heavy-duty guide rail is 600mm,

4.11KW ordinary main motor,

5.11KW domestic frequency converter,

6. CK6180 (Φ630 manual four-jaw chuck or Φ400 three-jaw chuck),

7. Manual tailstock,

8. Four-station electric tool post,

9. Automatic lubrication system,

10. Electric cooling system,

11. Lighting system,

12. Semi-closed shielding,

13. Delixi electric control components,

14. A full set of technical information,

15. Random standard accessories and tools.

Optional configuration of ALCK6180×4000 turning CNC lathe:

1. Three-speed variable frequency segmental variable speed CNC lathe with square head gearbox

2. Optional manual four-speed internal continuously variable transmission,

3. Optional spindle servo motor (11KW).

video:

Product parameters:
