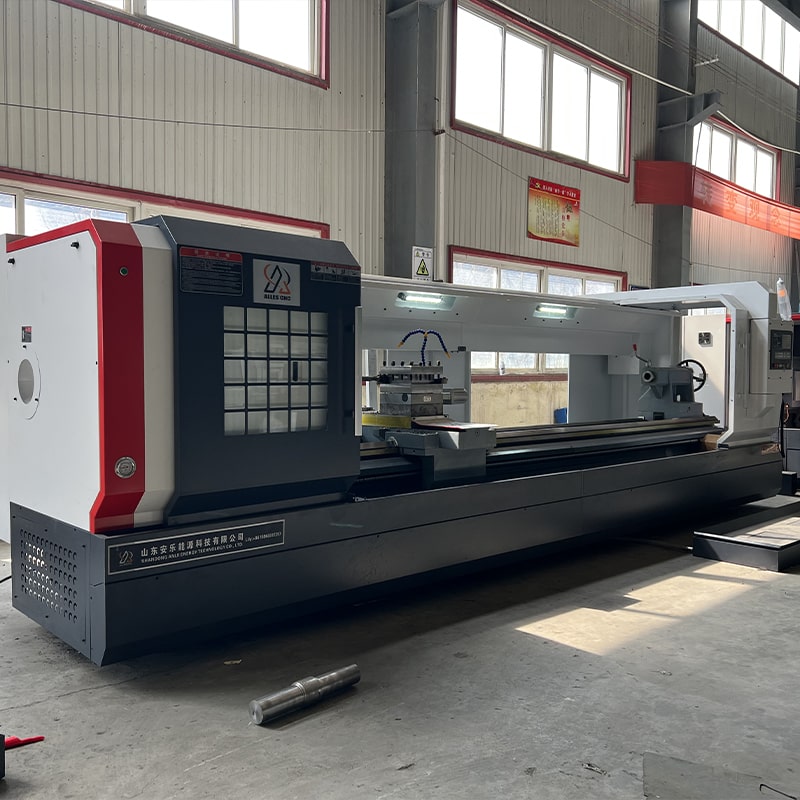

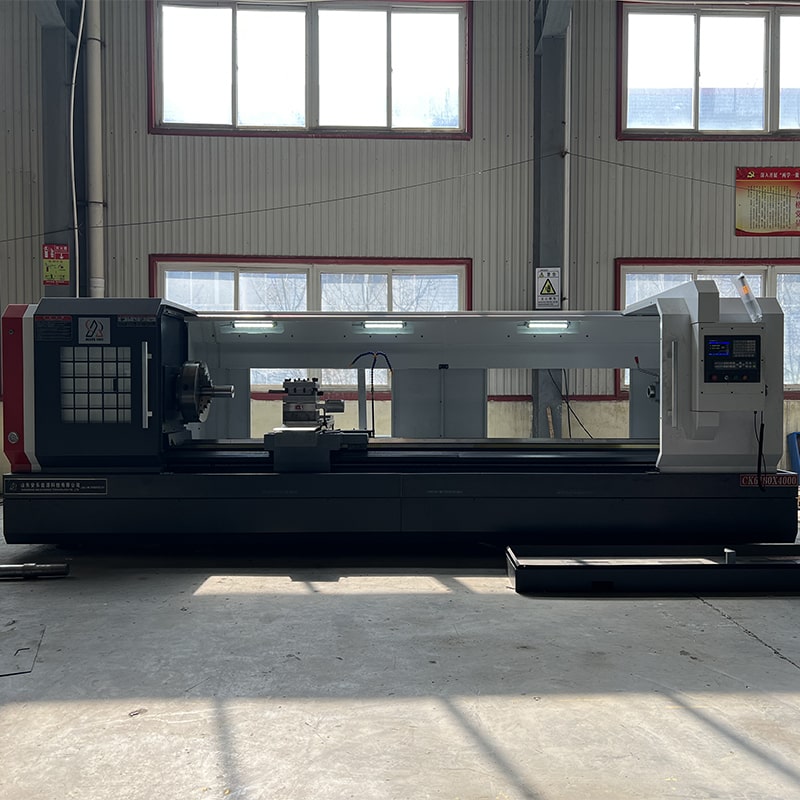

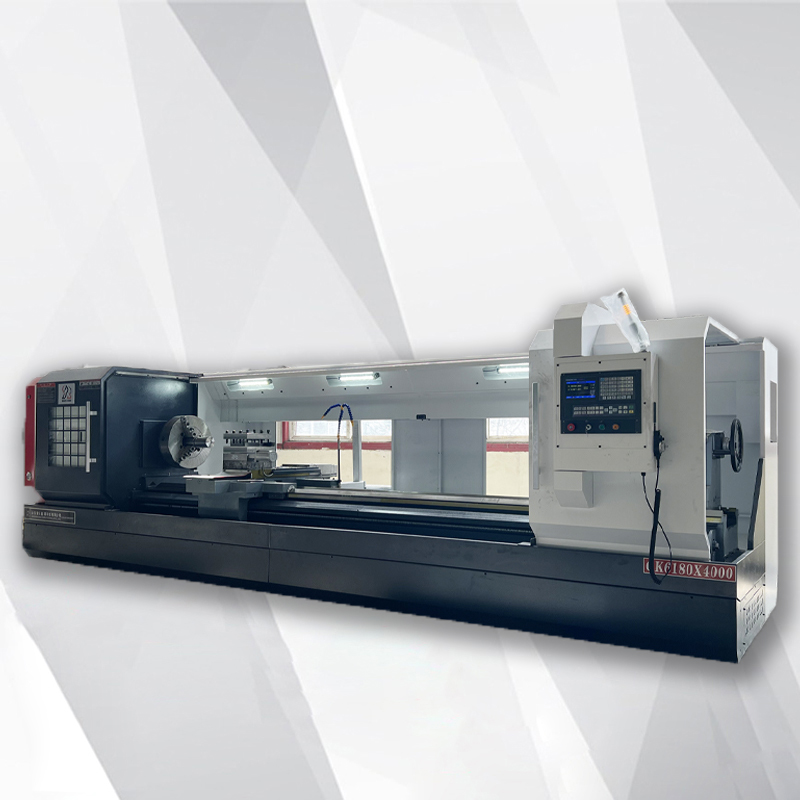

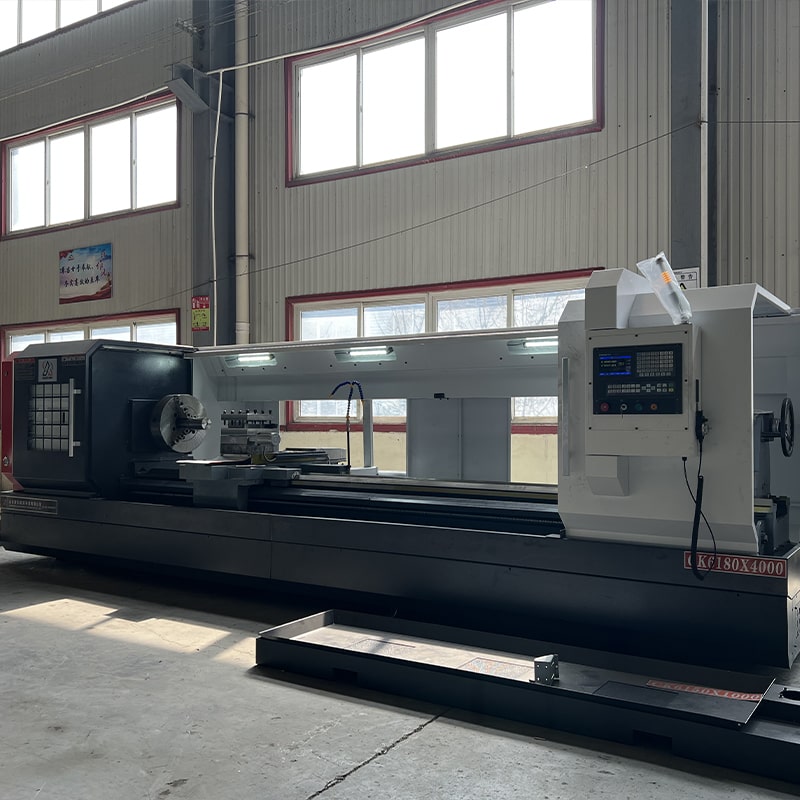

ALCK6180×4000 CNC lathe

ALCK6180×4000 CNC lathe is suitable for processing various steel, cast iron and non-ferrous metal large and medium-sized parts, with high power and good rigidity. It is especially suitable for powerful cutting, cutting the inner circle, outer circle, end face and metric and imperial parts of various workpieces. Thread, etc., and can undertake drilling and boring processing.

The horizontal CNC lathe ALCK6180X4000 is a high-precision and high-efficiency CNC machine tool with the following characteristics:

1. High-precision machining: The horizontal CNC lathe ALCK6180X4000 adopts a servo control system and is equipped with a precise spindle and feed system, which can accurately control the movement of the tool and the machining process to achieve high-precision machining quality.

2. High-efficiency production: The horizontal CNC lathe ALCK6180X4000 has fast feed speed and fast cutting speed, which can quickly complete processing tasks and improve production efficiency. At the same time, the equipment also has a multi-station automatic tool changing system, which can realize automated continuous processing and further improve production efficiency.

3. Multi-functional application: The automatic CNC lathe ALCK6180X4000 is widely used in the precision processing of various metal materials, such as shaft parts, hub parts, gear parts, etc. Its high precision and high efficiency make it an important processing equipment in aviation, automobile, electronics, machinery and other industries.

4. Strong flexibility and adaptability: The automatic CNC lathe ALCK6180X4000 has flexible programming and operation methods, and can be programmed and adjusted according to different processing needs to achieve diversified processing operations. At the same time, the equipment can also adjust the tool according to the actual workpiece shape and processing requirements, providing more processing options.

ALCK6180×4000 Horizontal CNC Lathe Application:

1. Railway locomotive manufacturing industry: ALCK6180×4000 automatic numerical control lathe is aimed at high-speed rail locomotive body, axle, wheel and other parts.

2. Mold processing and manufacturing industry: the precision of parts is required to be high, and the surface precision mainly refers to the surface roughness. Cylindrical parts with high requirements for cylindricity; conical parts with high requirements for plane straightness, roundness and inclination; rotating parts with special threads.

3. Defense industry: The ability of ALCK6180×4000 automatic CNC lathe to provide replacement parts and upgrade components on demand is especially useful in this industry.

4. Medical business field: ALCK6180×4000 flat CNC lathe can be used for various medical safety materials. Since the process is suitable for one-off custom parts, it has many applications in the medical industry.

Standard configuration of ALCK6180×4000 turning CNC lathe:

1. Numerical control system,

2. Integral landing bed,

3. The width of the heavy-duty guide rail is 600mm,

4.11KW ordinary main motor,

5.11KW domestic frequency converter,

6. CK6180 (Φ630 manual four-jaw chuck or Φ400 three-jaw chuck),

7. Manual tailstock,

8. Four-station electric tool post,

9. Automatic lubrication system,

10. Electric cooling system,

11. Lighting system,

12. Semi-closed shielding,

13. Delixi electric control components,

14. A full set of technical information,

15. Random standard accessories and tools.

Optional configuration of ALCK6180×4000 turning CNC lathe:

1. Three-speed variable frequency segmental variable speed CNC lathe with square head gearbox

2. Optional manual four-speed internal continuously variable transmission,

3. Optional spindle servo motor (11KW).

video:

Product parameters:
