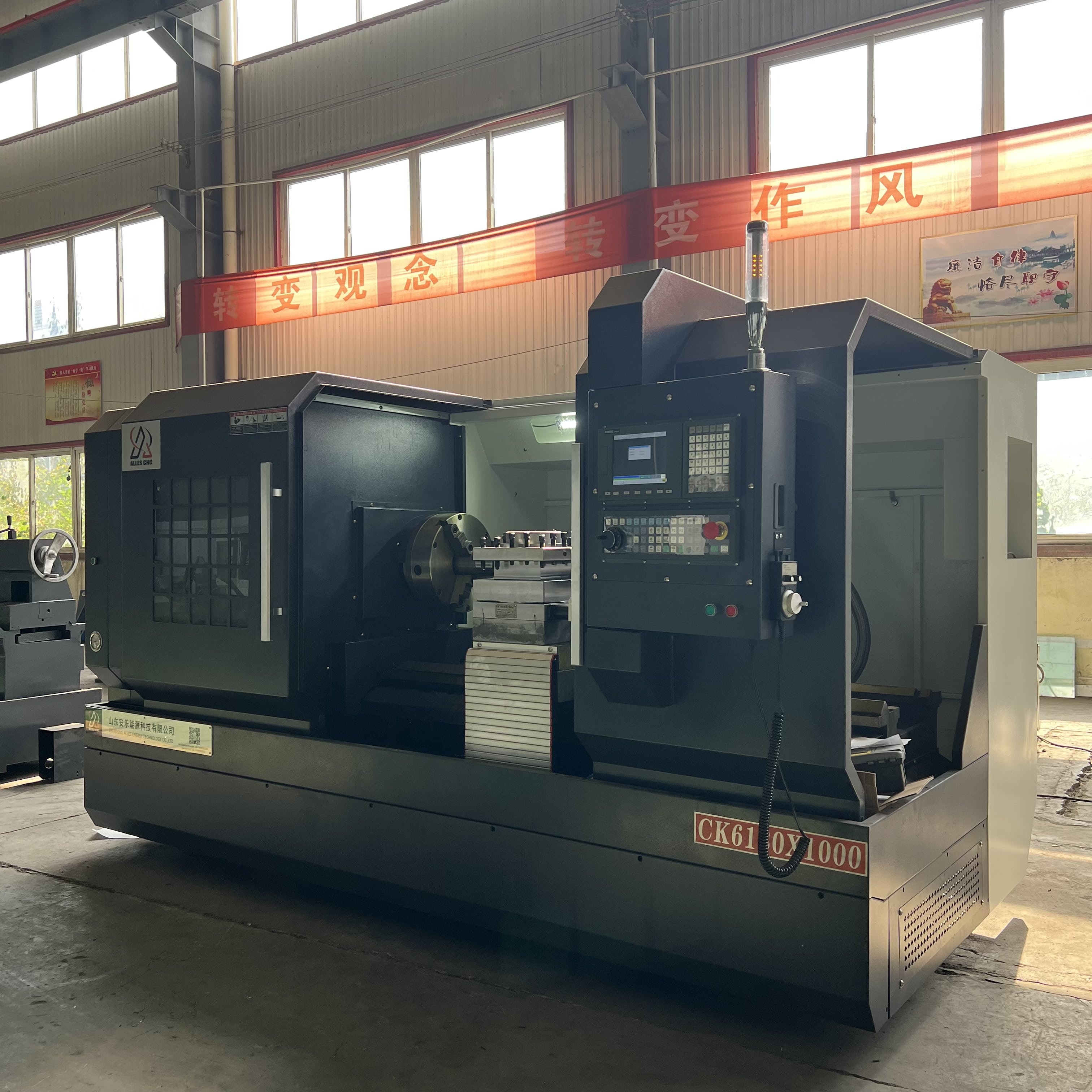

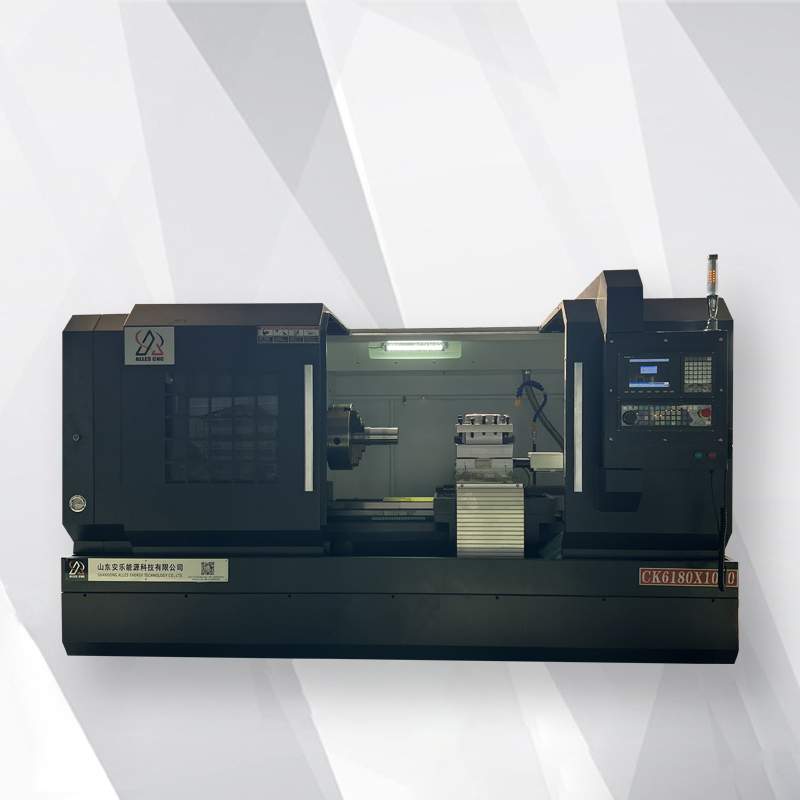

ALCK6180×1000 FANUC CNC lathe

ALCK6180×1000 CNC lathe is suitable for processing various large and medium-sized parts of steel, cast iron and non-ferrous metals. ALCK6180×1500 CNC machine tool has high power and good rigidity. It is especially suitable for powerful cutting, cutting the inner circle, outer circle, end face of various workpieces, as well as metric and inch parts. Threads, etc., and can also undertake drilling and boring processing.

CNC lathe ALCK6180X1000 is a high-precision and high-efficiency CNC processing equipment with the following characteristics:

1. High precision: CNC system control can achieve precise processing and ensure the high precision requirements of processed parts.

2. High degree of automation: Through preset programs, automatic operation can be achieved and the impact of human operations on processing quality can be reduced.

3. Wide processing range: It is suitable for processing various metal and non-metal materials, and can complete various processing techniques such as turning, boring and tapping.

4. High production efficiency: CNC systems can improve production efficiency, reduce production costs, and improve product processing quality.

The metal CNC lathe ALCK6180X1000 is suitable for aviation, automobile, machinery manufacturing, electronic devices, instrumentation and other industries. It has a wide range of applications in manufacturing various parts and devices:

1. In the aviation field, the horizontal CNC lathe ALCK6180X1000 can be used to produce high-precision metal parts such as aircraft engine parts and aircraft fuselage connectors.

2. In the automotive industry, the horizontal CNC lathe ALCK6180X1000 can be used to produce key components such as automobile engine blocks, crankshafts, and camshafts.

3. In the machinery manufacturing industry, the horizontal CNC lathe ALCK6180X1000 is suitable for manufacturing various types of shafts, sleeves, rings, gears and other machined parts.

4. In the electronic device industry, the flat bed CNC lathe ALCK6180X1000 can be used to produce various precision electronic device parts, such as connectors, sockets, etc.

ALCK6180×1000 turning CNC lathe standard configuration:

1. CNC system,

2. Integral landing bed,

3. Heavy-duty guide rail width 600mm,

4.11KW ordinary main motor,

5.11KW domestic inverter,

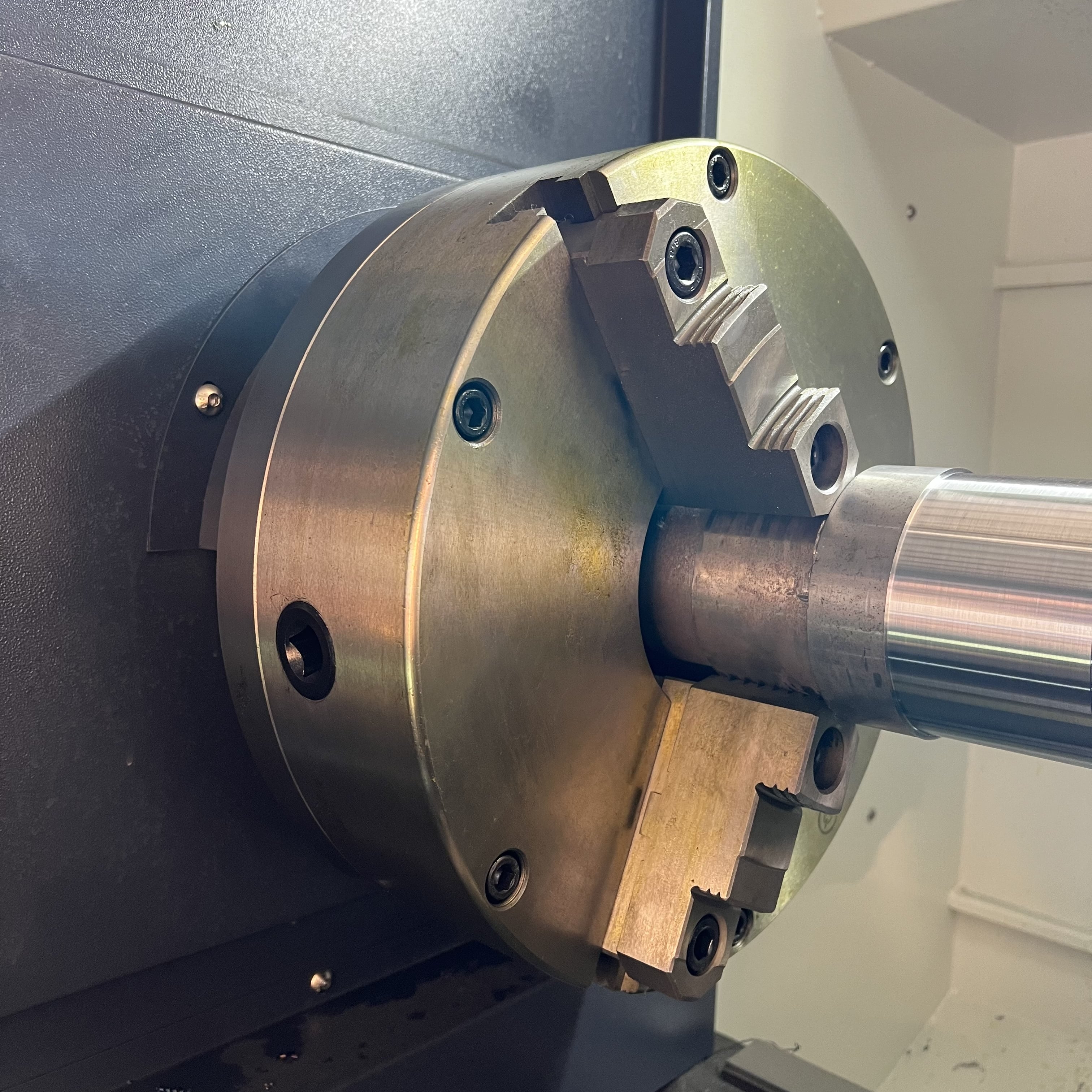

6.CK6180 (Φ630 manual four-jaw chuck or Φ400 three-jaw chuck),

7. Manual tailstock,

8. Four-station electric tool holder,

9. Automatic lubrication system,

10. Electric cooling system,

11. Lighting system,

12. Semi-closed shielding,

13. Delixi electrical control components,

14. A complete set of technical information,

15. Random standard accessories and tools.

Optional configurations of ALCK6180×1000 turning CNC lathe:

1. Square head gearbox three-speed variable frequency segmented speed CNC lathe

2. Optional manual four-speed internal continuously variable transmission,

3. Optional spindle servo motor.

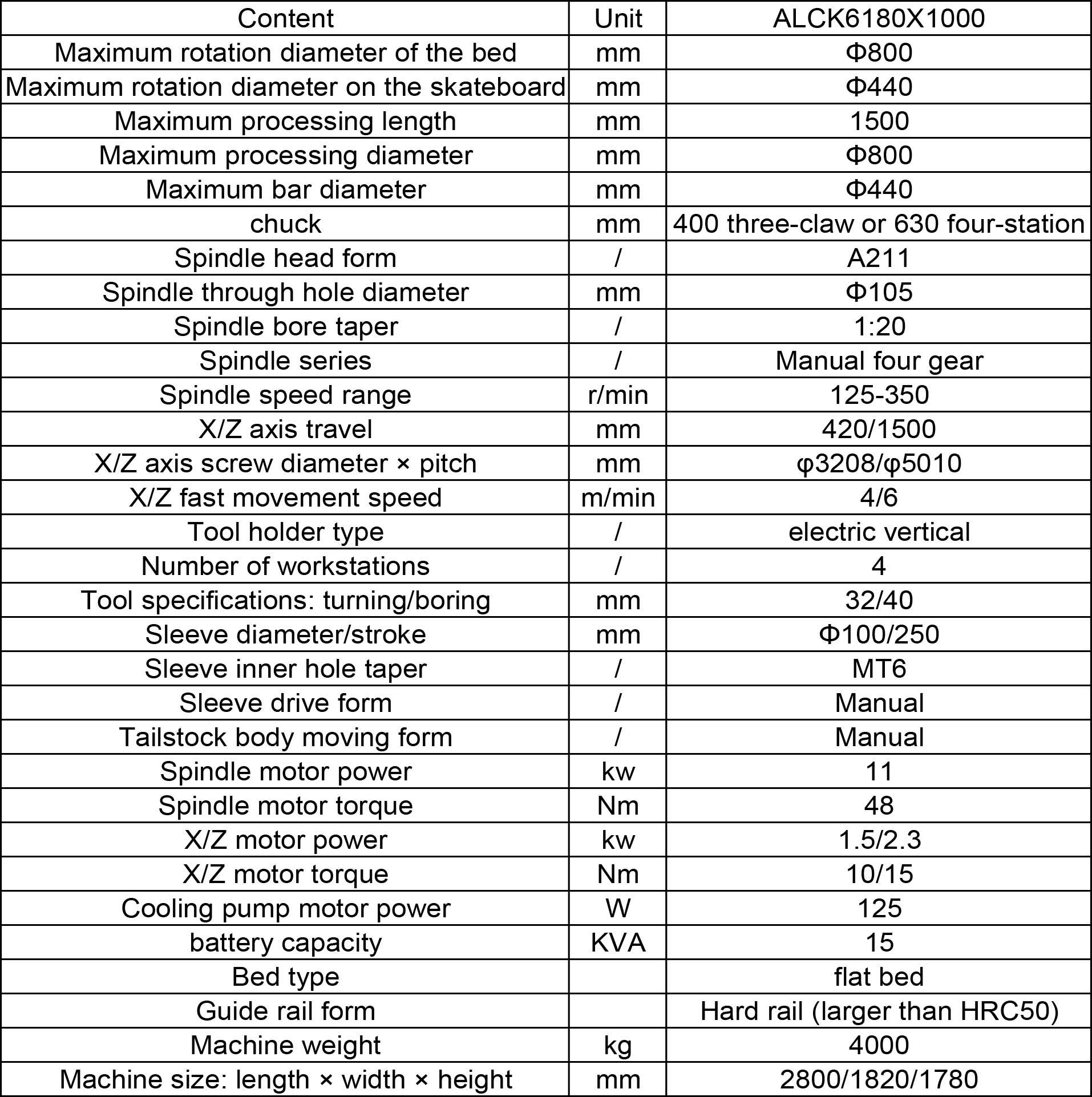

Product parameters:
