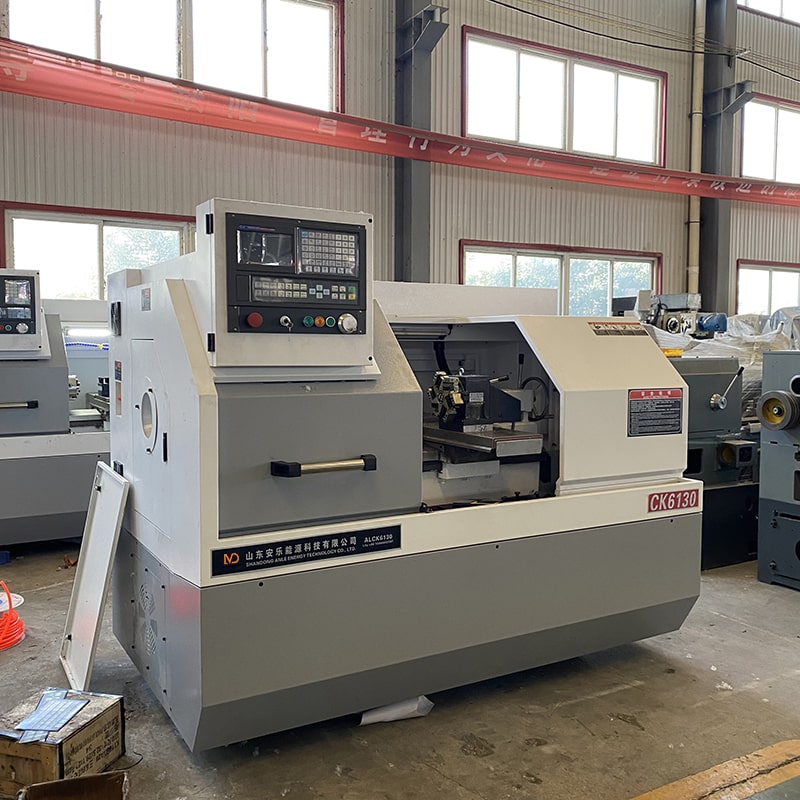

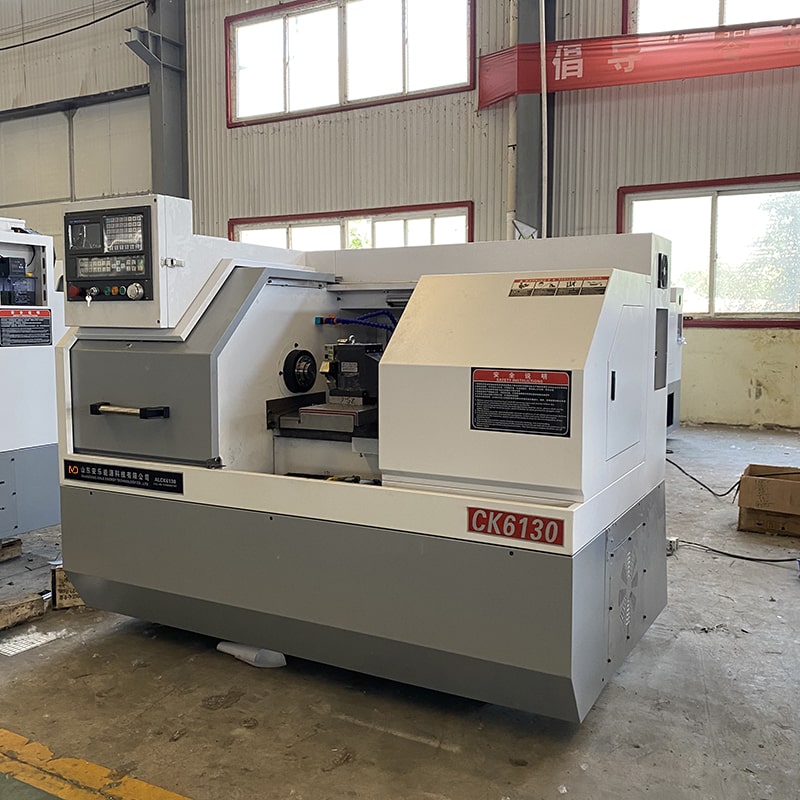

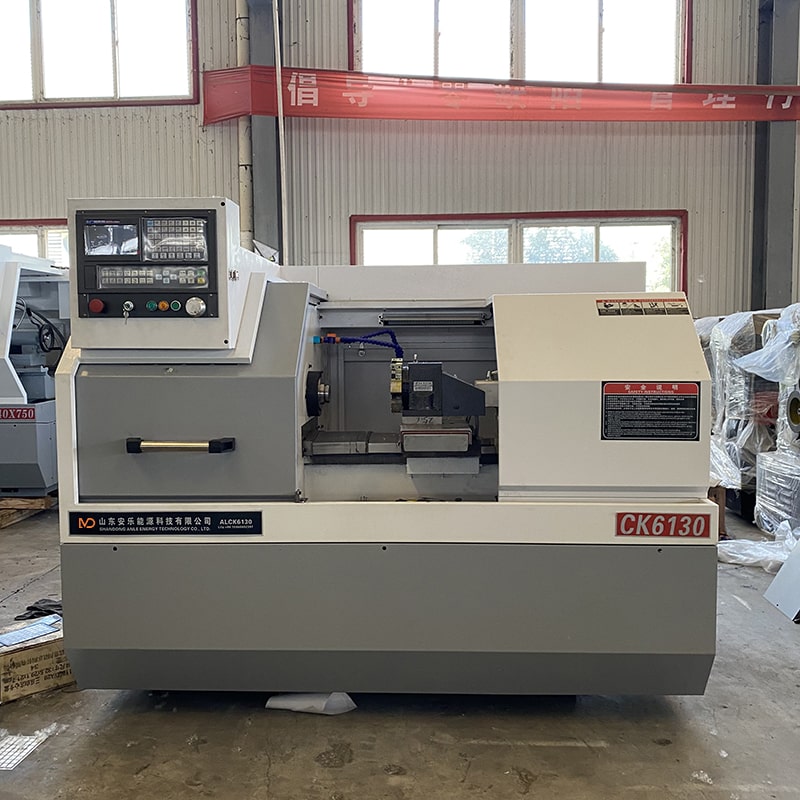

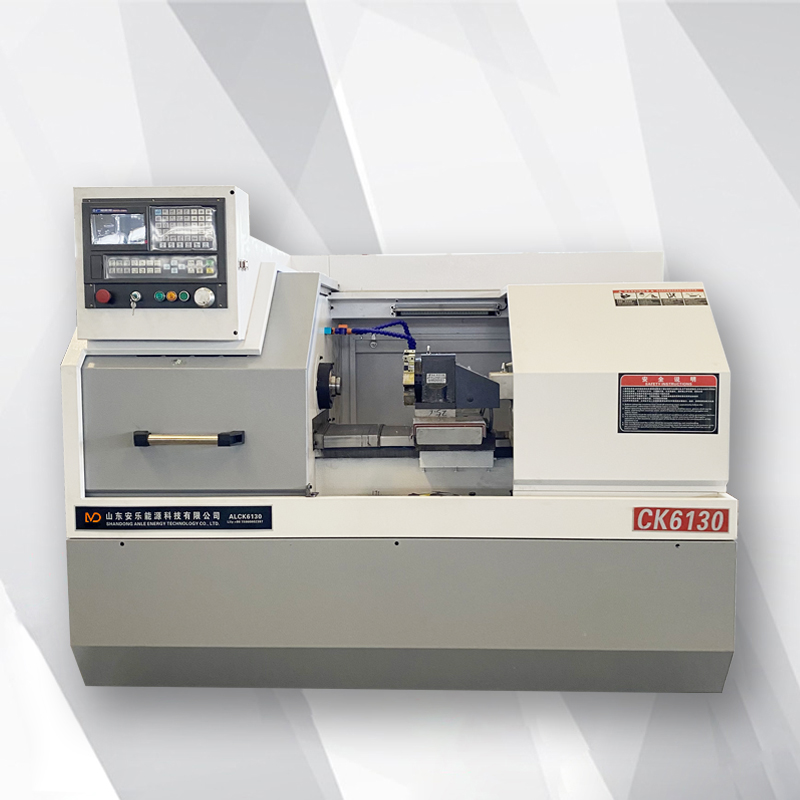

ALCK6130 cnc lathe machine

The guide rail of this machine tool is made of high wear-resistant cast iron and has been subjected to super-audio frequency quenching treatment and artificial vibration aging treatment, which can ensure the geometric accuracy of the machine tool for a long time and stably. The vertical and horizontal carriages are driven by high-precision ball screws, with good dynamic performance and high displacement precision. All the sliding surfaces of the machine tool are lubricated by centralized dripping. This machine tool is widely used in the processing and manufacturing of electrical appliances, hardware tools, valves, gas pipe fittings and other complex parts. It is an ideal equipment for the hardware machining industry.

Features of ALCK6130 flat bed cnc lathe:

1. CNC system: The small CNC lathe ALCK6130 is equipped with an advanced CNC system, which is usually programmed with G code, allowing it to automatically control the movement of tools and processing operations. This increases production efficiency and accuracy.

2. High precision: Small CNC lathe ALCK6130 CNC lathe generally has high-precision positioning and repeated positioning performance, which makes it suitable for tasks that require high-precision machining.

3. Versatility: The small CNC lathe ALCK6130 can generally be used for different types of processing, including turning, drilling, milling, threading, etc. It is versatile and suitable for the processing needs of a variety of workpieces.

4. Automation: Turning and milling center ALCK6130 CNC lathes usually have automatic tool changing systems, which can easily replace different types of tools to adapt to different processing needs.

5. Efficient production: Due to its automation and precision, the turning and milling center ALCK6130 CNC lathe can improve production efficiency, reduce manual operations, and reduce costs.

ALCK6130 horizontal cnc lathe machine application:

1. Metal processing: Turning and milling center ALCK6130 can be used to process various metal workpieces, such as aluminum, steel, copper, iron, etc., and is widely used in metal processing industries, such as auto parts manufacturing, machinery manufacturing, mold manufacturing, etc.

2. Aerospace industry: In the aviation and aerospace fields, the horizontal CNC lathe ALCK6130 is used to manufacture aircraft parts, rocket engine parts, etc., which requires high-precision and high-quality manufacturing.

3. Plastic processing: In addition to metal, the horizontal CNC lathe ALCK6130 can also be used for plastic processing to manufacture plastic parts and components, and is widely used in the field of plastic product manufacturing.

4. Steel processing: In the steel processing industry, the horizontal CNC lathe ALCK6130 can be used to produce various steel parts, such as bearings, gears, shafts, etc.

5. Railway and transportation fields: Horizontal CNC lathe ALCK6130 is used to manufacture railway vehicle parts and other transportation parts.

The standard configuration of ALCK6130 flat bed cnc lathe:

1.GSK CNC system;

2.Four-station electric knife post;

3.Manual chuck.

4.Hydraulic chuck;

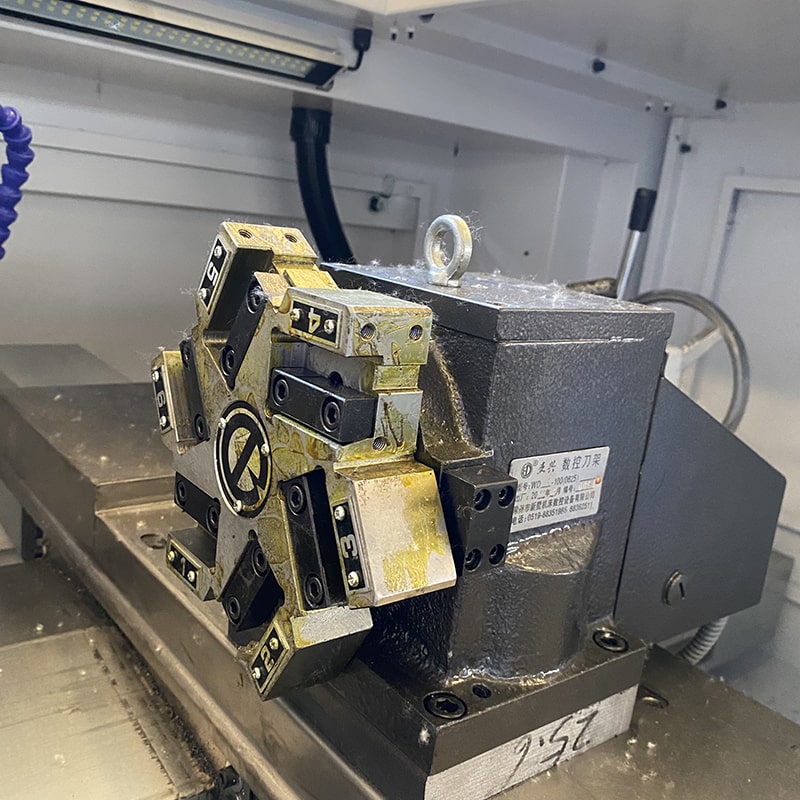

5.Six-station electric knife post;

6.Overall lathe body structure;

7.Domestic frequency converter;

8.Ordinary three-phase asynchronous motor;

9.Pneumatic spring clamp clamping device;

10.Four sets of 16*16 square knife holders;

11.Fully enclosed casing, a set of cooling device and lighting device.

Optional configuration of ALCK6130 horizontal cnc lathe:

1.6/8-station rotary tool post

2.Pneumatic tailstock;

3.Taiwan's precision and flexible top;

4.Various non-standard collets;

5.Puller;

6.Hollow, solid hydraulic three-jaw chuck or spring chuck quick tightening device;

video：

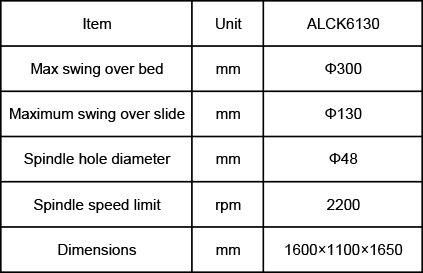

Product parameters：
