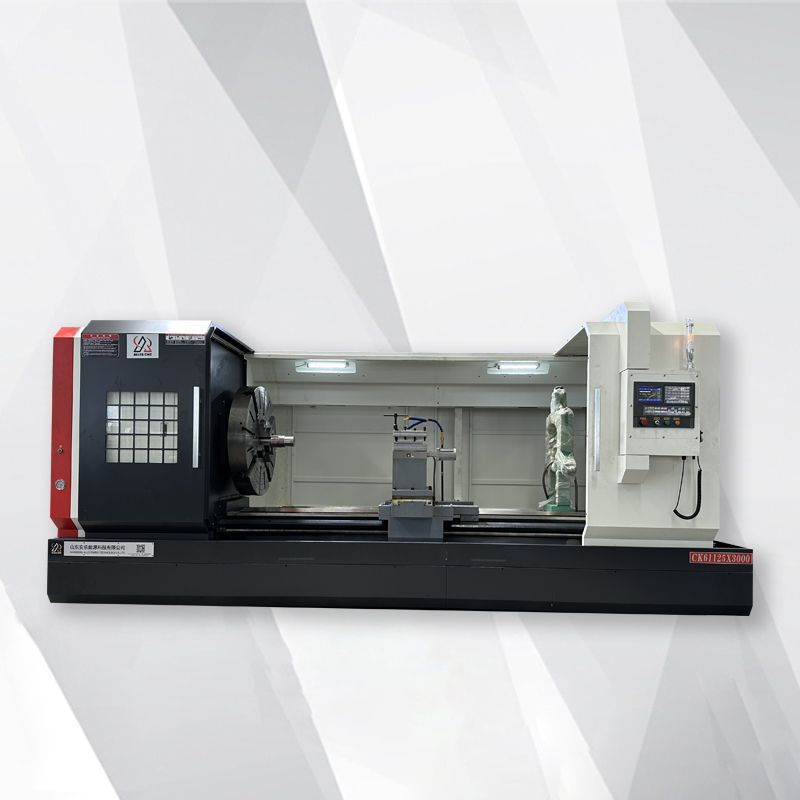

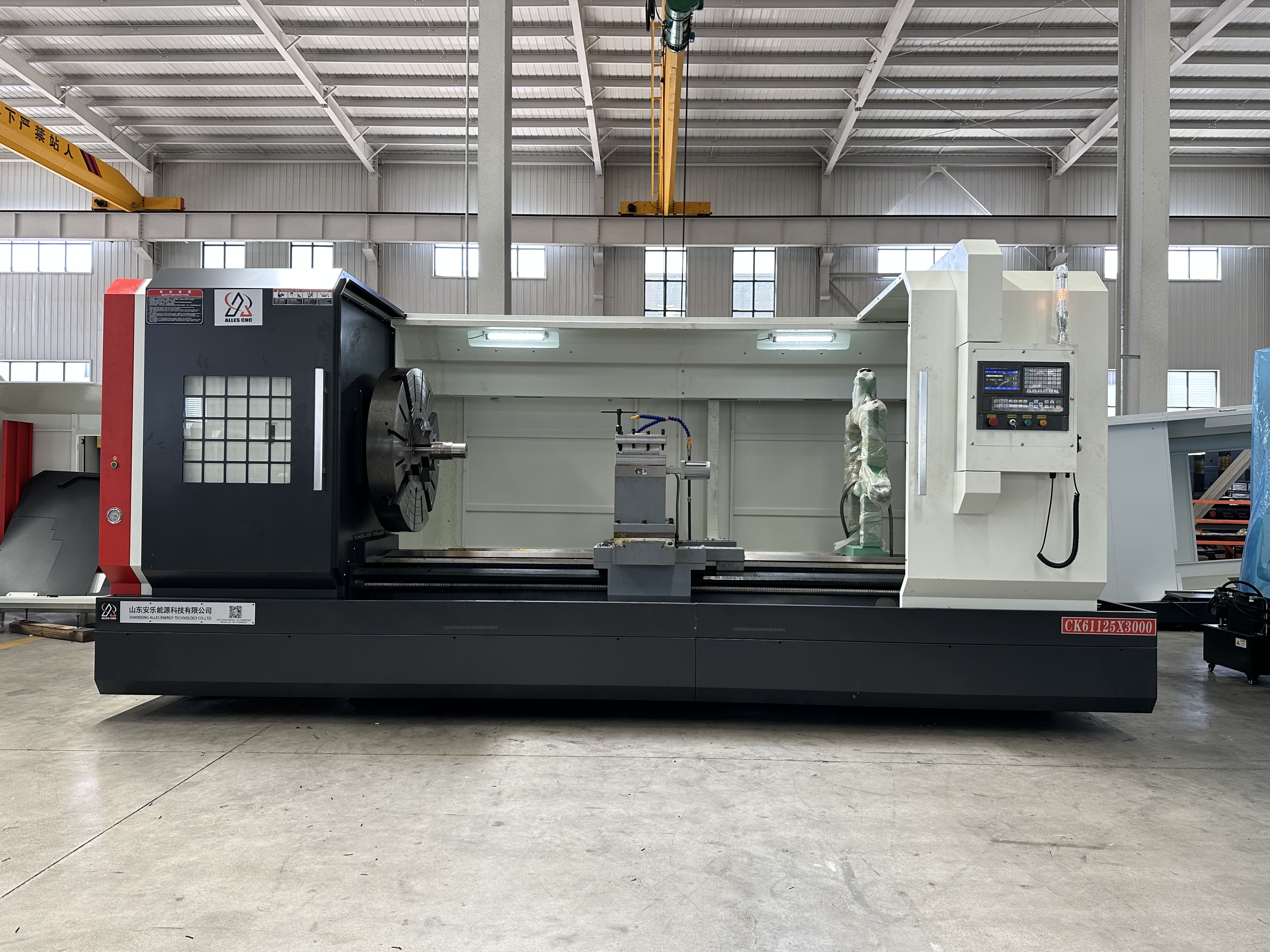

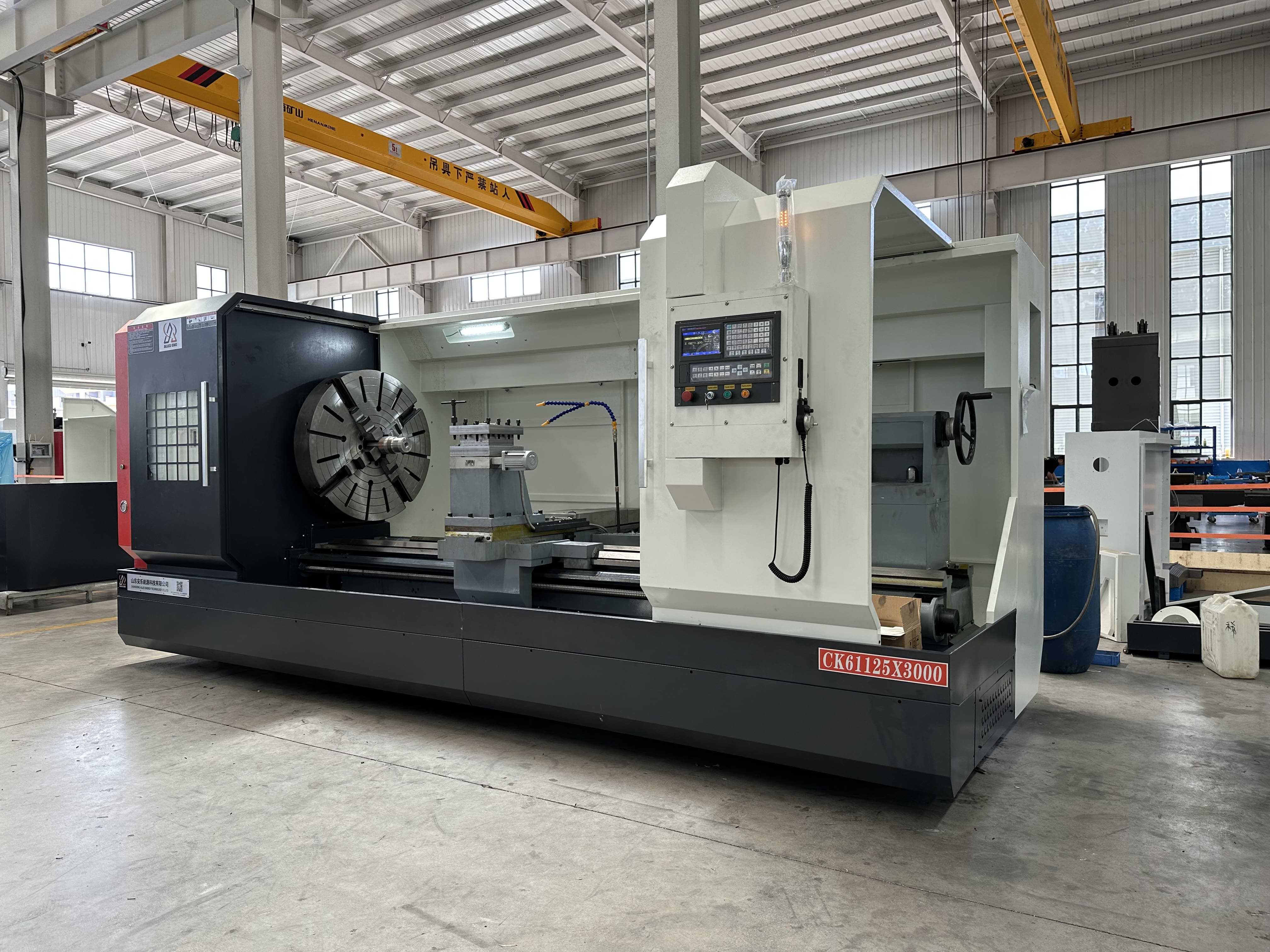

The spindle bearings of the CNC metal lathe ALCK61125X3000 adopt products from well-known domestic brand companies. The bed is made of high-strength cast iron. After three times of tempering, it has high rigidity and vibration resistance. Equipped with electric tool turret, it can achieve high positioning and tool changing speed. Fast and high-performance, the horizontal CNC lathe ALCK61125X3000 uses a feed motor directly connected to the screw to ensure machining accuracy and positioning accuracy. The spindle box adopts a symmetrical structure with uniform thermal deformation to avoid spindle center deviation.
The application of ALCK61125X3000 horizontal heavy metal CNC lathe is particularly suitable for high-efficiency, large-volume, high-precision turning, reaming and bending of shaft and disc parts, such as internal and external cylinders, tapers, threads and drilled parts. rotating body. It can rotate various rotating surfaces such as cylindrical surfaces, conical surfaces, and special-shaped surfaces, and can perform slotting, tapping, boring, and reaming. It has high efficiency and strong applicability.
1. High-precision processing: ALCK61125X3000 turning and milling center CNC lathe adopts advanced CNC technology, which can achieve micron-level processing accuracy and is suitable for the processing requirements of high-precision parts.
2. High-efficiency production: The ALCK61125X3000 turning and milling center CNC lathe is equipped with a powerful spindle and feed system, which can achieve high-speed and efficient processing operations and improve production efficiency.
3. Multi-function processing: ALCK61125X3000 flat bed CNC lathe has multiple processing functions such as turning, milling, drilling, etc., and is suitable for integrated processing of complex workpieces.
4. Stable and durable: ALCK61125X3000 flat bed CNC lathe has a solid structure and is made of high-quality materials. It has good stability and long-term durability, ensuring long-term stable operation.
1. Aerospace: ALCK61125X3000 metal CNC lathe is used to manufacture aerospace engine parts, aircraft structural parts, etc., to meet the demand for high-precision, high-strength parts in the aerospace field.
2. Automobile manufacturing: ALCK61125X3000 metal CNC lathe is used to process automobile engines, gearboxes, chassis and other parts to improve automobile manufacturing processes and product quality.
3. Energy equipment: ALCK61125X3000 metal CNC lathe is used to manufacture key components of wind power, thermal power, nuclear power and other energy equipment to ensure the stable development of the energy industry.
1.GSK980TB3 CNC controller
2.630mm three-jaw manual chuck

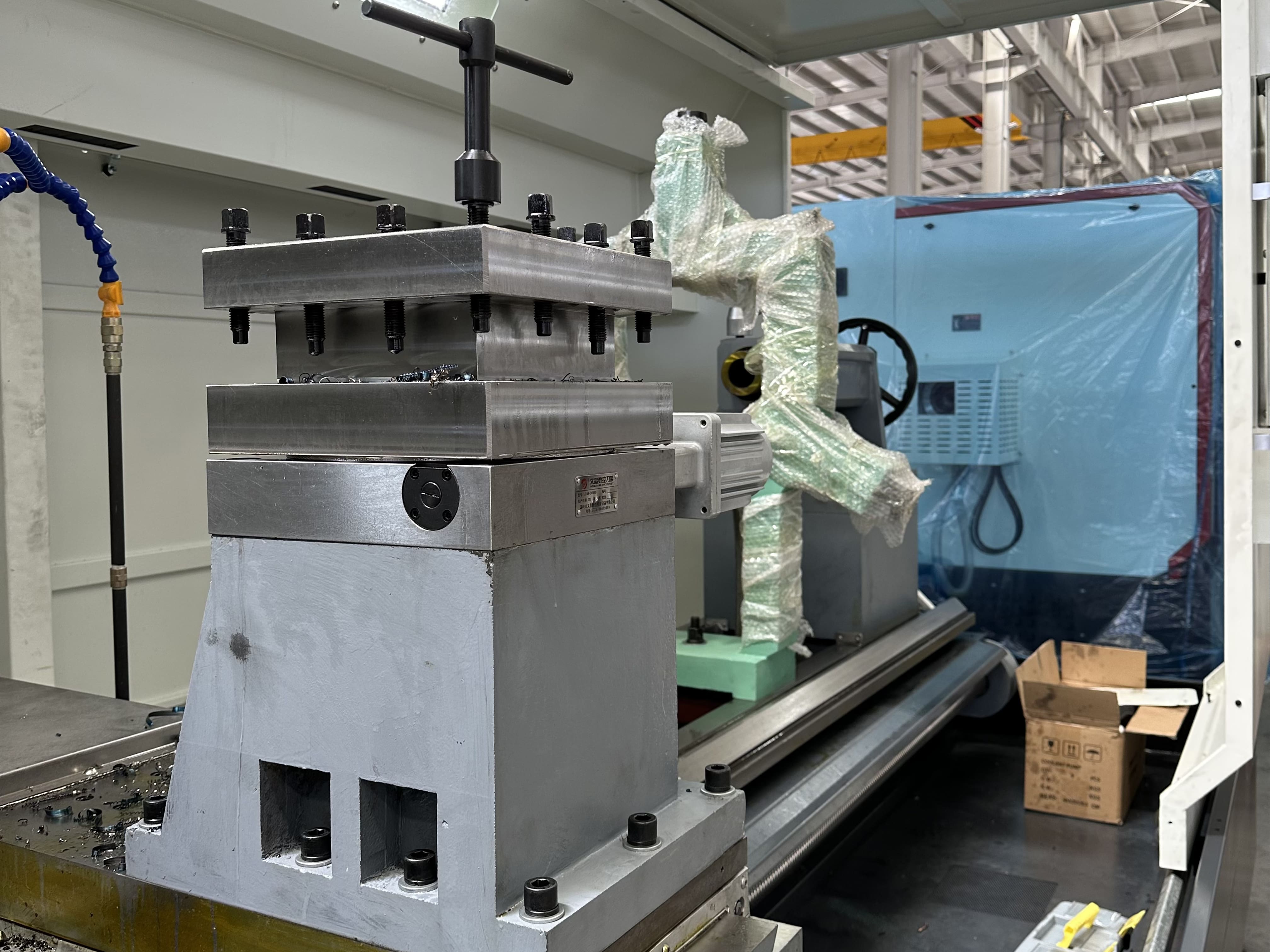

3.4-station electric tool holder
4. Automatic lubrication system
5.LED lights
6.Manual tailstock
1. Fanuc, Siemens, Xindai, KND, Mitsubishi
2.Hydraulic chuck
3.6/8 station turret
4.Hydraulic tailstock
5. Chip conveyor
6. Fixed bracket
7. Follow the break
8.Y-axis moving turret
