ALCK61125X1500 CNC lathe processing

Product Tags :

Product Attributes :

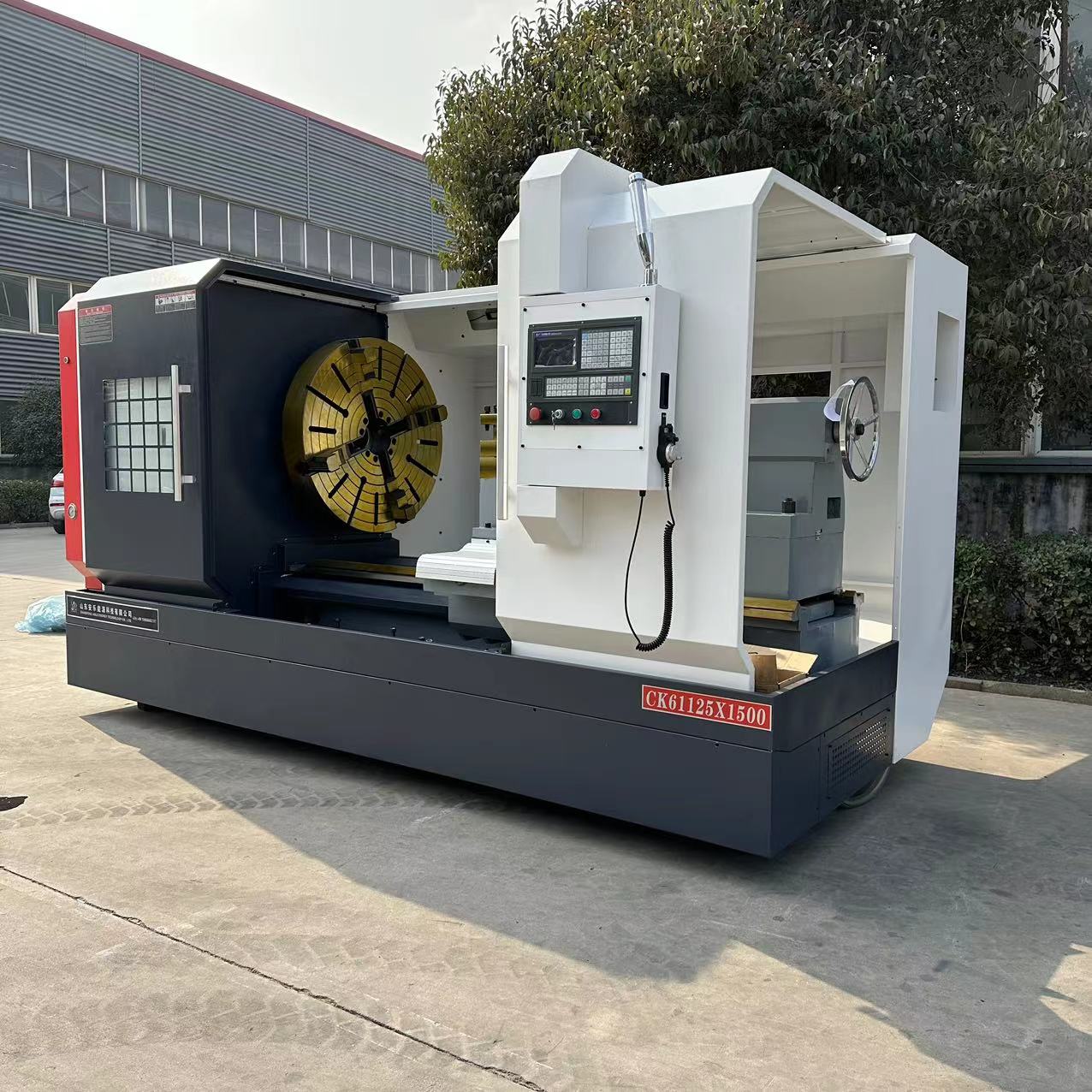

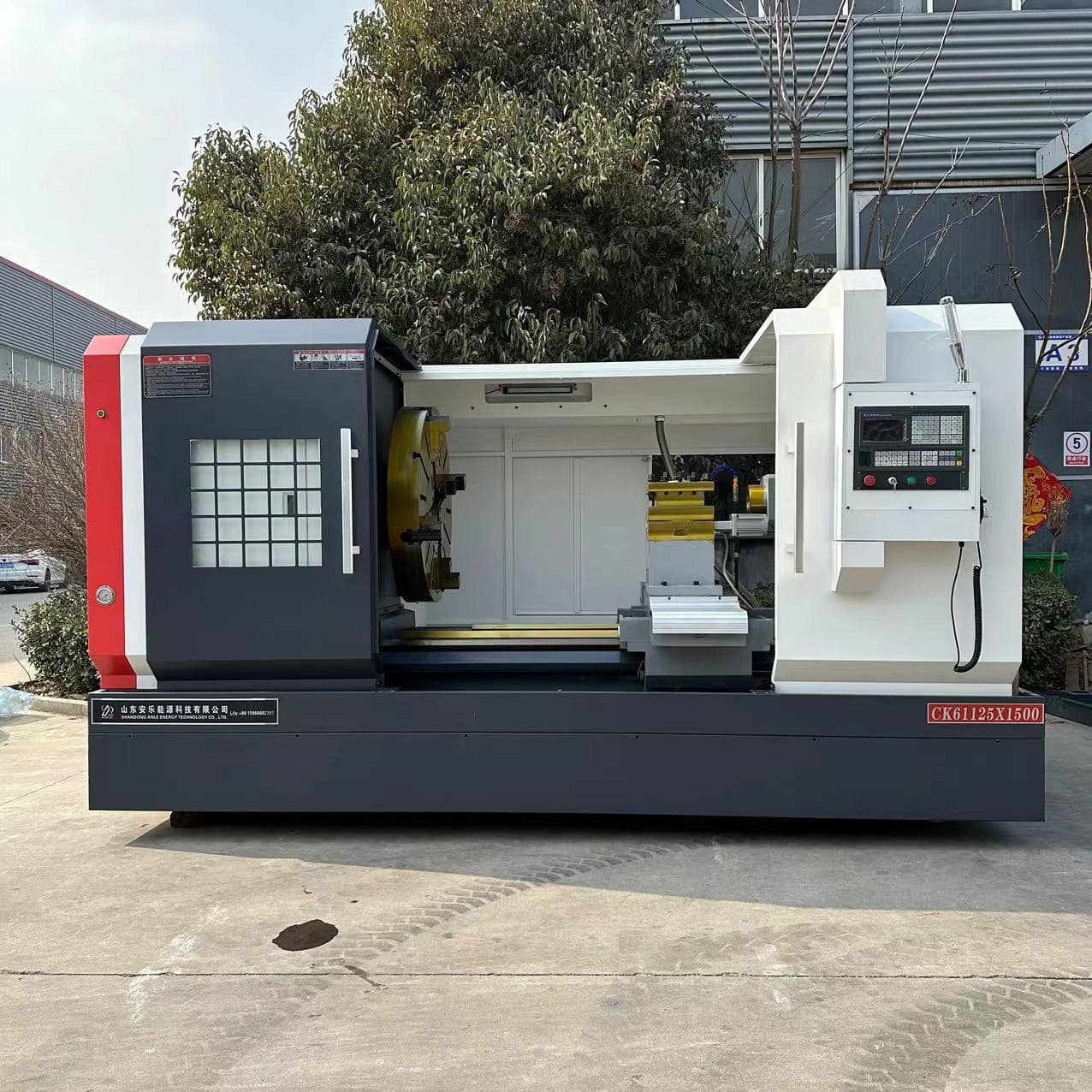

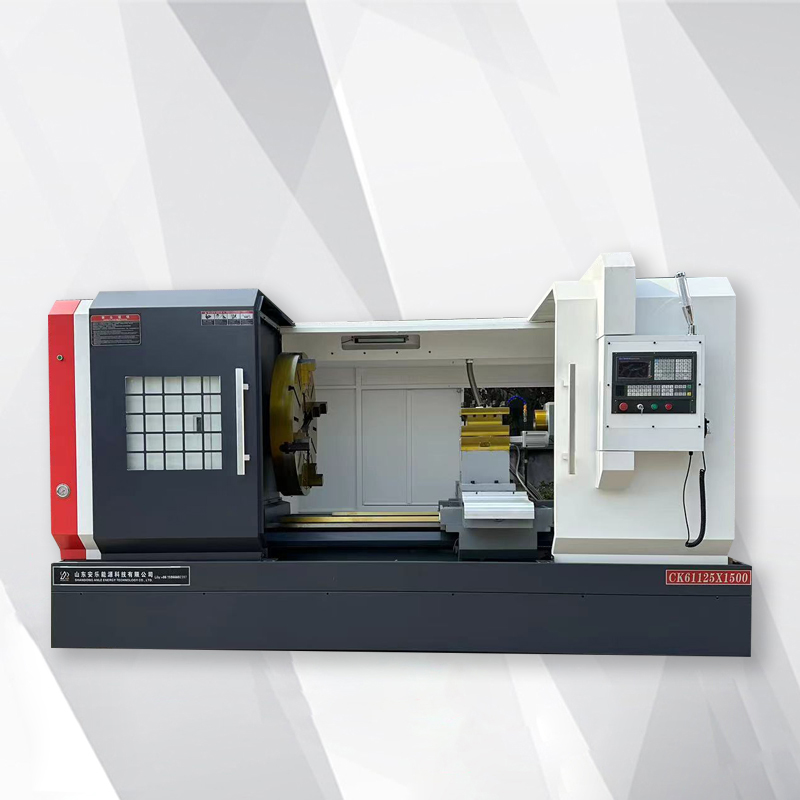

The spindle bearing of the CNC metal lathe ALCK61125X1500 adopts the product of a domestic famous brand company. The bed is made of high-strength cast iron. After three times of tempering, it has high rigidity and vibration resistance. It is equipped with an electric turret, which can achieve high positioning and tool change speed. Fast and high-performance, the horizontal CNC lathe ALCK61125X1500 uses a feed motor and screw to be directly connected, which can ensure machining accuracy and positioning accuracy. The spindle box adopts a symmetrical structure to make thermal deformation even and avoid deviation of the spindle center.

Product Description

The application of ALCK61125X1500 horizontal heavy metal CNC lathe is particularly suitable for high-efficiency, high-volume, high-precision turning, reaming and bending of shaft and disc parts, such as internal and external cylindrical, tapered, threaded and drilled parts. rotating body. It can rotate various rotating surfaces such as cylindrical surfaces, conical surfaces, special-shaped surfaces, etc. It can perform slotting, threading, boring and reaming, with high efficiency and strong applicability.

Features of automatic CNC lathe ALCK61125X1500:

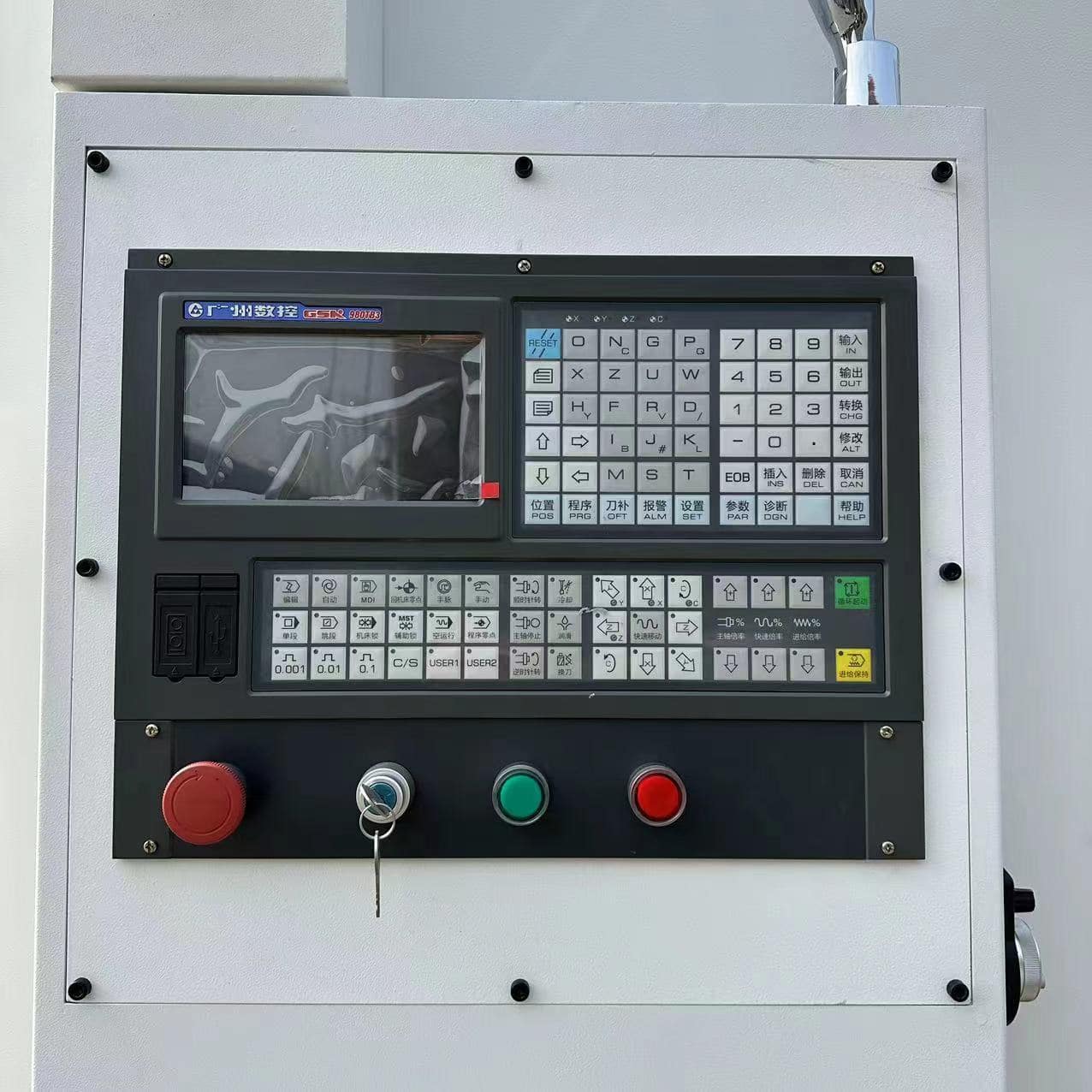

1. High precision: The automatic CNC lathe ALCK61125X1500 adopts a digital control system and is equipped with precision screws, guide rails and spindles, which can achieve high-precision processing operations and ensure the size and surface quality requirements of the processed parts.

2. Multi-function: The automatic CNC lathe ALCK61125X1500 has a variety of processing functions and can complete turning, threading, tapping and other processes. By replacing the tool head and fixture, various processing forms such as reaming, drilling, and milling can be performed to meet the processing needs of different workpieces.

3. High efficiency: The flat bed CNC lathe ALCK61125X1500 is controlled by a CNC system, which is easy to operate and has strong programmability, which greatly improves the processing efficiency. At the same time, the use of automatic tool changing devices and automatic feeding devices enables continuous processing, reducing manual operation time and labor intensity.

4. High rigidity: The metal CNC lathe ALCK61125X1500 is made of stable bed structure and high-strength materials, with good rigidity and stability. Under high-speed machining and heavy cutting conditions, the stability and machining accuracy of the workpiece can be maintained.

Application of metal CNC lathe ALCK61125X1500:

The metal CNC lathe ALCK61125X1500 is widely used in aerospace, machinery manufacturing, automobile manufacturing, shipbuilding and other industries. The flat bed CNC lathe ALCK61125X1500 can process various metal materials, including steel, iron, aluminum, copper, etc. In large-volume and high-precision workpiece processing, its advantages can be brought into play to improve production efficiency and product quality. CNC lathe ALCK61125X1500 has the characteristics of high precision, multi-function, high efficiency, high rigidity and wide application. It provides reliable processing equipment for modern manufacturing industry and promotes the development of industrial manufacturing.
