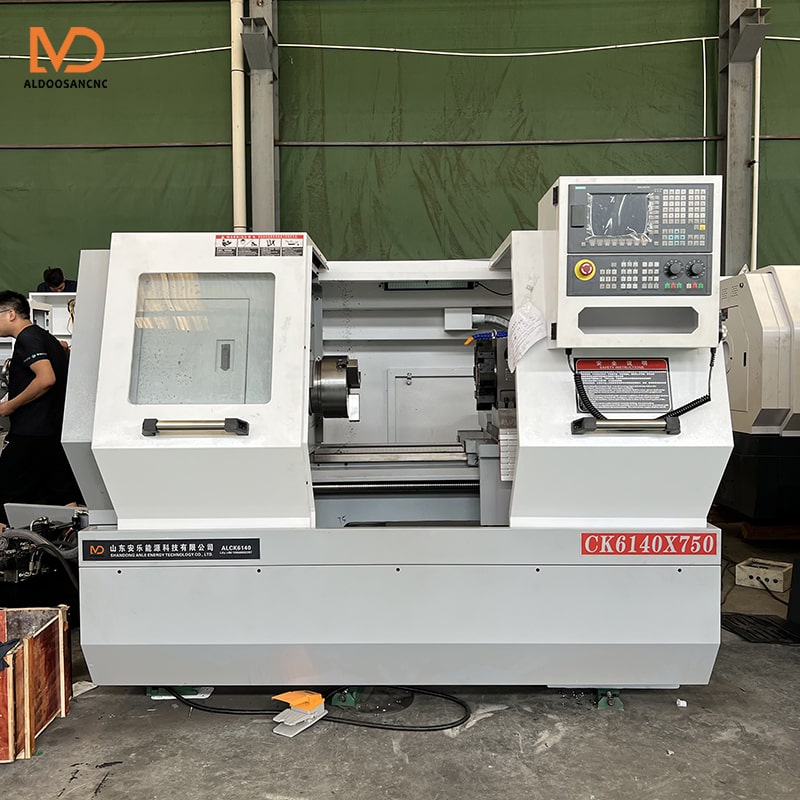

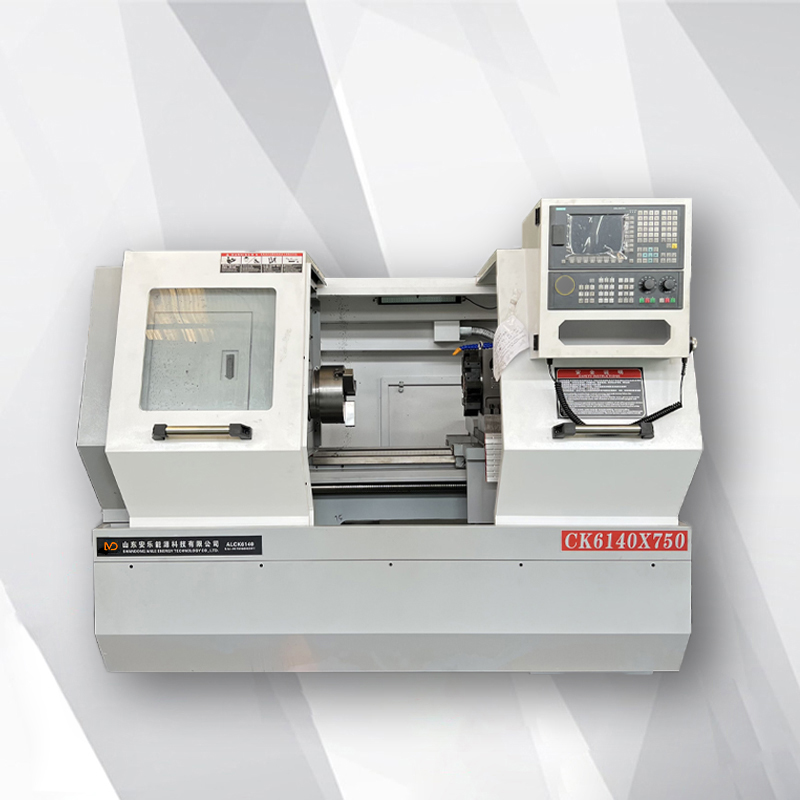

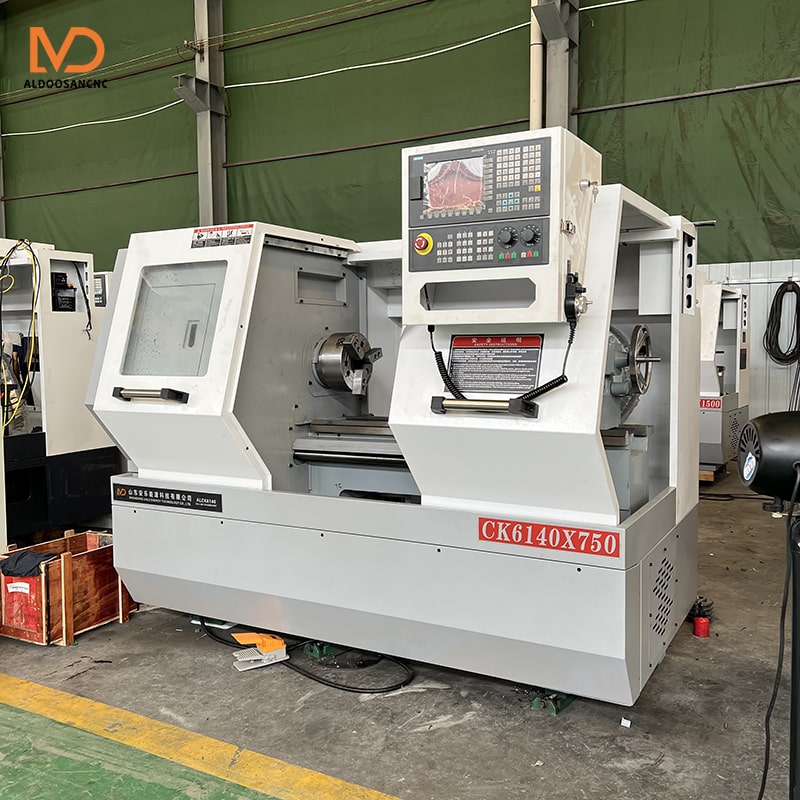

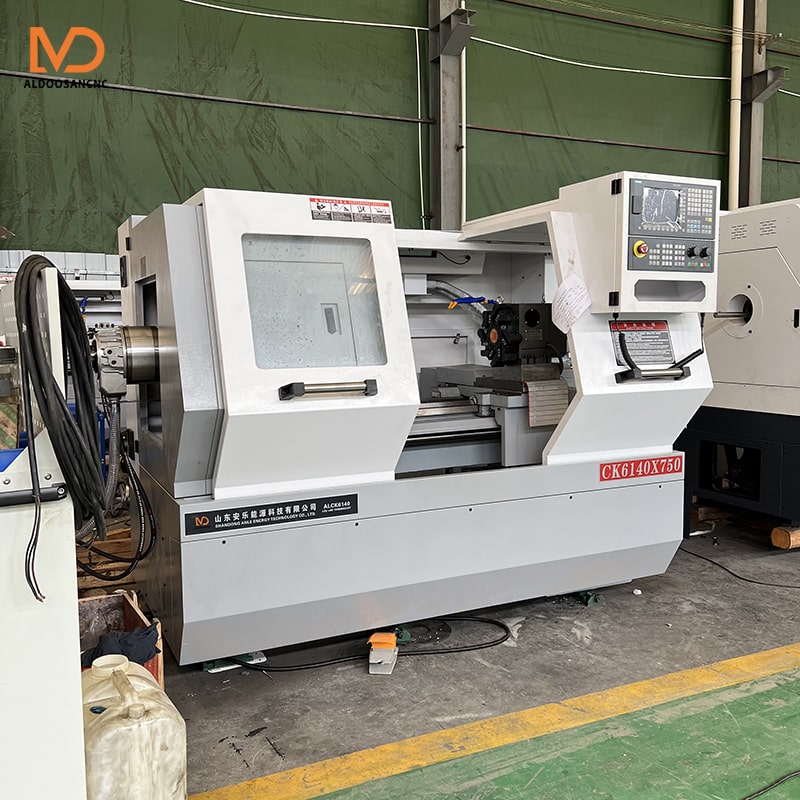

ALCK6140 cnc lathe machine
ALCK6140 CNC lathe is one of the most widely used CNC machine tools at present. It is mainly used for cutting the inner and outer cylindrical surfaces of shaft parts or disk parts, the inner and outer conical surfaces of arbitrary cone angles, the complex rotary inner and outer curved surfaces, cylinders, and conical threads, etc., and can perform grooving, drilling, reaming, and reaming. Holes and borings etc. The CK6140 CNC lathe automatically processes the processed parts according to the pre-programmed processing program.
ALCK6140 flat bed cnc lathe is a CNC lathe with high precision, high performance and strong versatility. It is used for processing various shaft and disc parts. Turning thread and other functions.
ALCK6140 horizontal cnc lathe features:
1. The machine tool has high precision, low noise, high precision and good stability.
2. The guide rail of the bed is finely ground after supersonic frequency quenching, with high hardness and good rigidity.
3. The electric four-station tool holder is positioned by a precision toothed disc, and the repeat positioning accuracy is high.
4. The tailstock has a fast cam clamping device, which has high working efficiency. There is a device inside the tailstock sleeve to prevent the rotation of the drill bit, which avoids damage to the taper of the inner hole of the tailstock sleeve due to the rotation of the drill bit caused by misoperation, and effectively protects the tailstock components.
5. Easy to operate, especially suitable for processing complex parts or high-precision mass parts, and it is also the first choice for CNC teaching.
ALCK6140 horizontal cnc lathe use:
1. Machinery manufacturing industry: ALCK6140 metal CNC lathe is used to process metal and non-metal parts, such as bearings, gears, connectors, etc.
2. Aerospace industry: ALCK6140 metal CNC lathe is used to manufacture various parts of aircraft and spacecraft.
3. Automobile manufacturing industry: ALCK6140 metal CNC lathe is used to process engine parts, chassis parts, etc.
4. Electronic manufacturing industry: ALCK6140 flat bed CNC lathe is used to produce precision electronic components.
5. Medical equipment manufacturing industry: ALCK6140 flat bed CNC lathe is used to process various parts of medical equipment.
ALCK6140 horizontal cnc lathe configuration:
1. Ordinary main motor
2. Domestic frequency converter

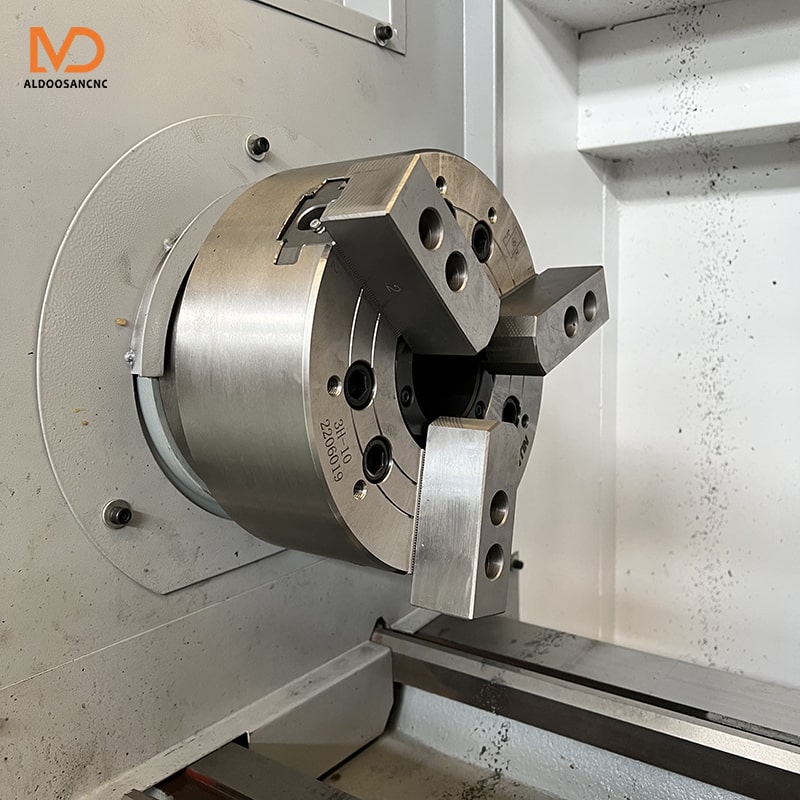

3. Three-jaw chuck
4. Tailstock
5. Four-station electric knife holder
6. Automatic lubrication system
7. Electric cooling system
8. Lighting system
9. Semi-enclosed shield
10. Electrical control components
11. A full set of technical information
12. Random standard accessories and tools
ALCK6140 automatic cnc lathe optional configuration:
1. Overall bed
2. Integral bed foot
3. Eight-station electric knife holder
4. Hydraulic Chuck
5. Electric chuck
6. Hydraulic tailstock
7. Center bracket
8. Frequency conversion motor
9. Servo motor
10. Electric gate
video:

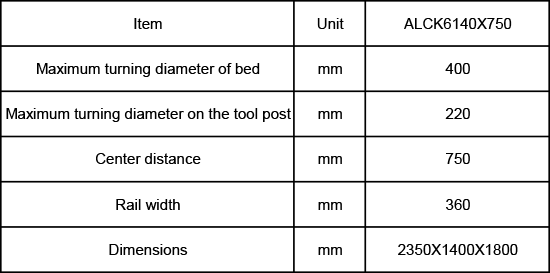

Product parameters:
