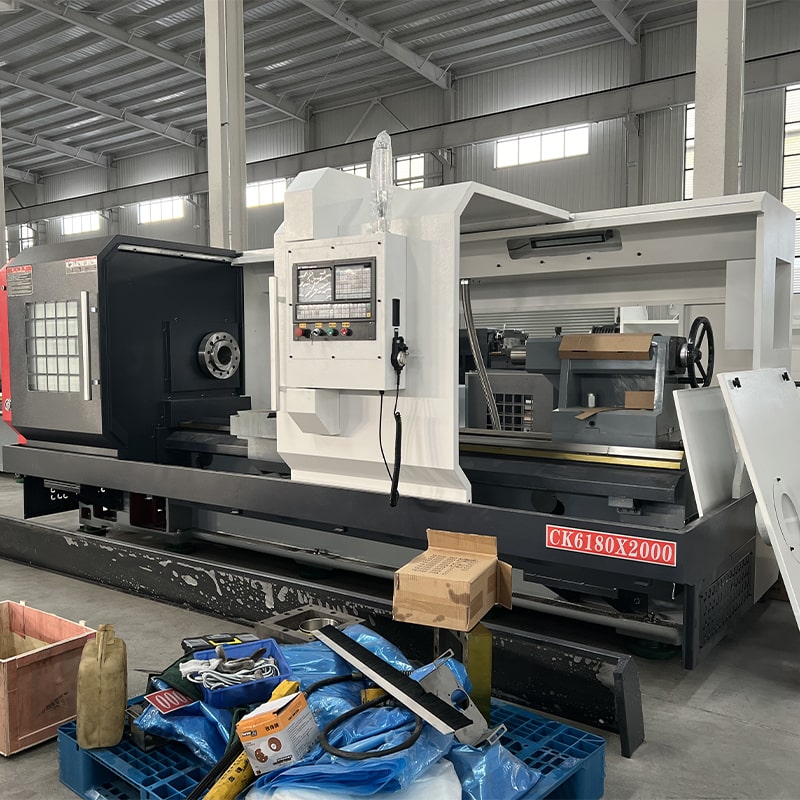

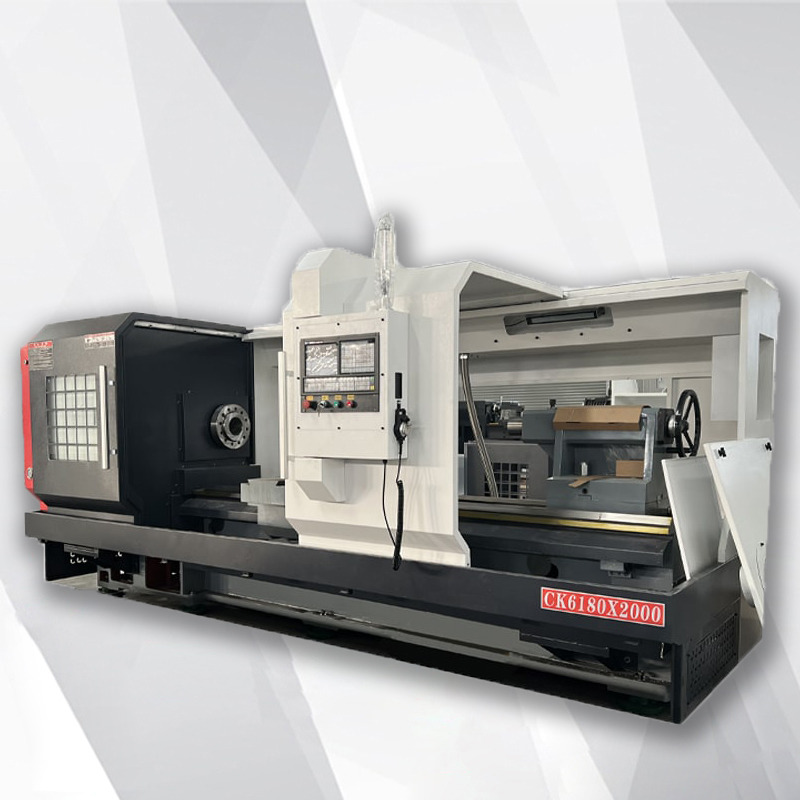

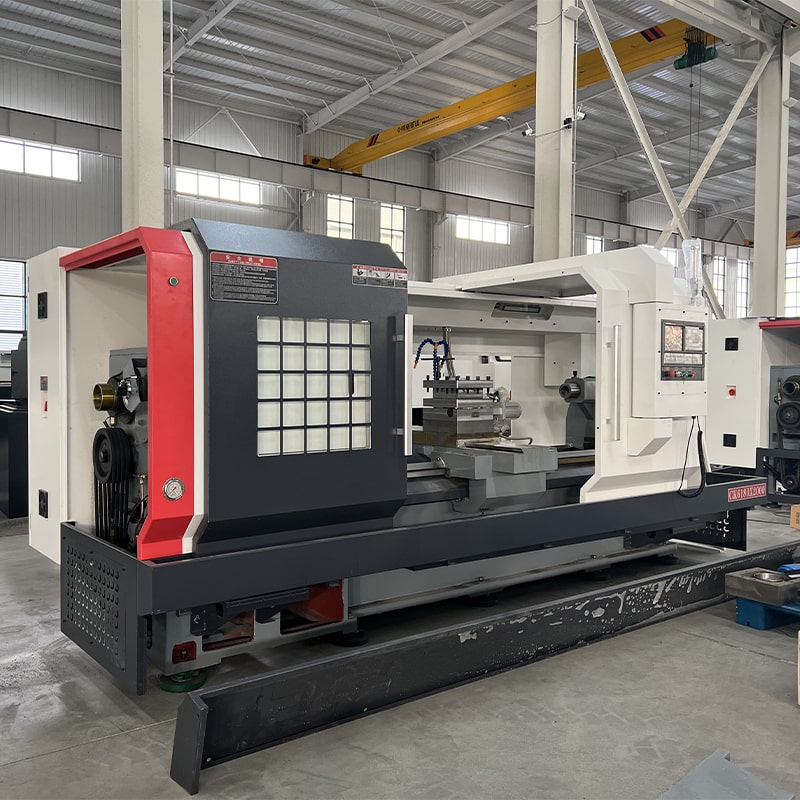

ALCK6180×2000 cnc lathe machine

ALCK6180×2000 cnc lathe machine is suitable for processing all kinds of steel, cast iron and non-ferrous metal large and medium-sized parts.ALCK6180×2000 CNC machine tool has high power and good rigidity. It is especially suitable for powerful cutting, cutting inner circle, outer circle, end face, and metric and inch parts of various workpieces. Thread, etc., and can undertake drilling and boring processes.

CNC lathe ALCK6180X2000 is a high-precision and high-efficiency machine tool equipment with the following main features:

1. High precision: CNC lathe ALCK6180X2000 adopts advanced CNC technology, which can achieve precise processing, ensure the size and geometric tolerance requirements of processed parts, and improve processing quality.

2. High efficiency: This CNC lathe has a fast-response control system, which can achieve high-speed cutting and efficient processing, greatly shortening the processing cycle and improving production efficiency.

3. Large processing range: ALCK6180X2000 CNC lathe has a large processing stroke and processing diameter, is suitable for processing workpieces of various sizes, and has strong processing adaptability.

4. Good stability: This CNC lathe adopts high-quality machine tool structure design and stable transmission system. It has good mechanical stability and can maintain high-precision processing for a long time.

5. Easy to operate: The CNC lathe ALCK6180X2000 is equipped with an intuitive and easy-to-understand CNC operation interface, which is easy to operate. The operator can quickly get started and improve production efficiency.

ALCK6180×2000 Horizontal CNC Lathe Application:

1. Railway locomotive manufacturing industry: ALCK6180×2000 automatic numerical control lathe is aimed at high-speed rail locomotive body, axle, wheel and other parts.

2. Mold processing and manufacturing industry: the precision of parts is required to be high, and the surface precision mainly refers to the surface roughness. Cylindrical parts that require high cylindricity; conical parts that require high plane straightness, roundness, and inclination; rotating parts with special threads. ALCK6180×2000 automatic numerical control lathe can solve this problem well.

3. Defense industry: The ability of ALCK6180×2000 automatic CNC lathe to provide replacement parts and upgrade components on demand is especially useful in this industry. Therefore, it is suitable for components that require continuous innovation and safety.

4. Medical business field: ALCK6180×2000 flat bed CNC lathe can be used for various medical safety materials. Since the process is suitable for one-off custom parts, it has many applications in the medical industry. The tight tolerances offered by the ALCK6180×2000 flatbed CNC lathe machining are critical for high-performance machining of medical components.

ALCK6180×2000 turning cnc lathe standard configuration:

1.CNC system,

2.Integral landing bed,

3.Heavy-duty rail width 600mm,

4.11KW ordinary main motor,

5.11KW domestic frequency converter,

6.CK6180 (Φ630 manual four-jaw chuck or Φ400 three-jaw chuck),

7.manual tailstock,

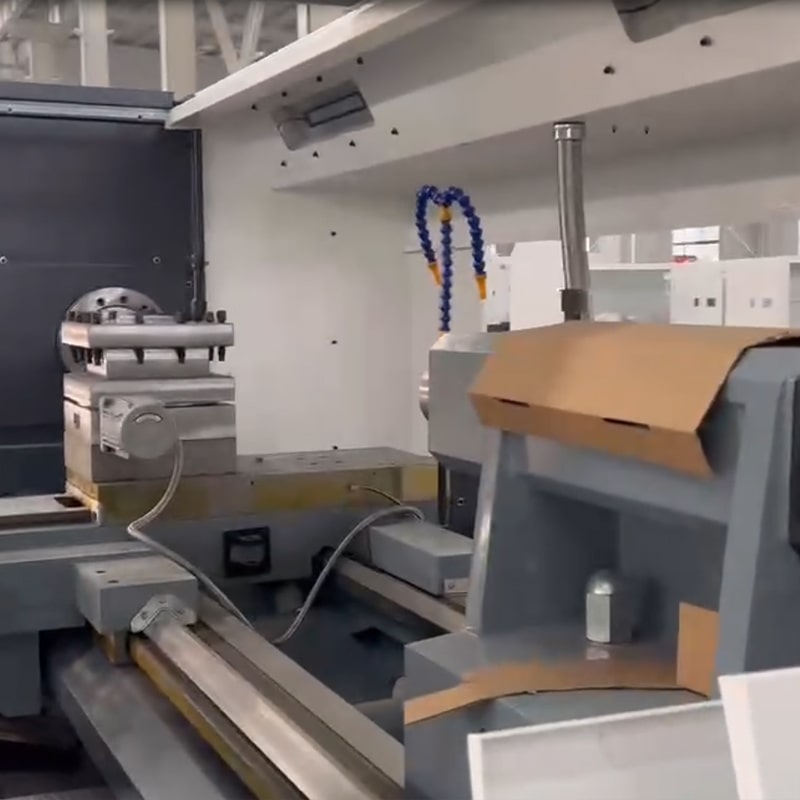

8.Four-station electric tool post,

9.automatic lubrication system,

10.electric cooling system,

11.Lighting system,

12.semi-enclosed shield,

13.Delixi electrical control components,

14.A full set of technical information,

15.Random standard accessories and tools.

ALCK6180×2000 turning cnc lathe optional configuration:

1.Square head gear box three-speed variable frequency segmental variable speed CNC lathe

2.Optional manual four-speed internal stepless transmission,

3.Optional spindle servo motor (11KW).

video:

Product parameters:
