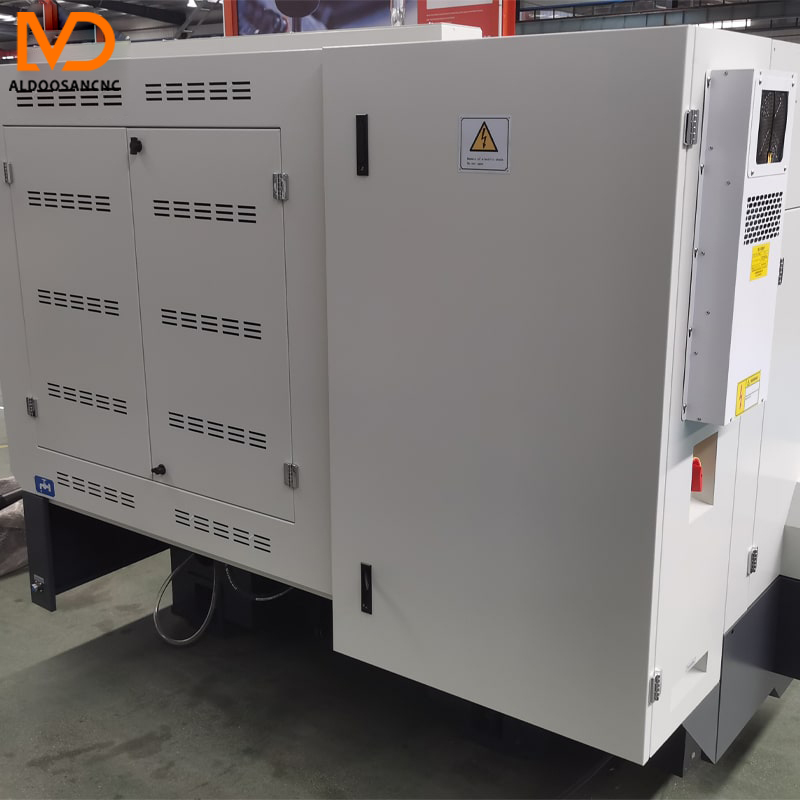

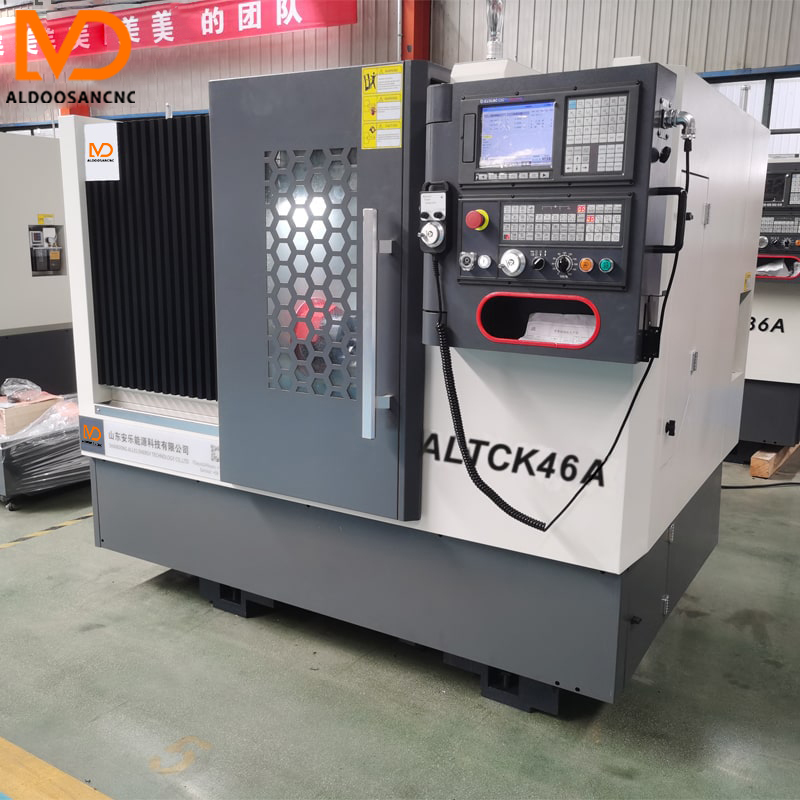

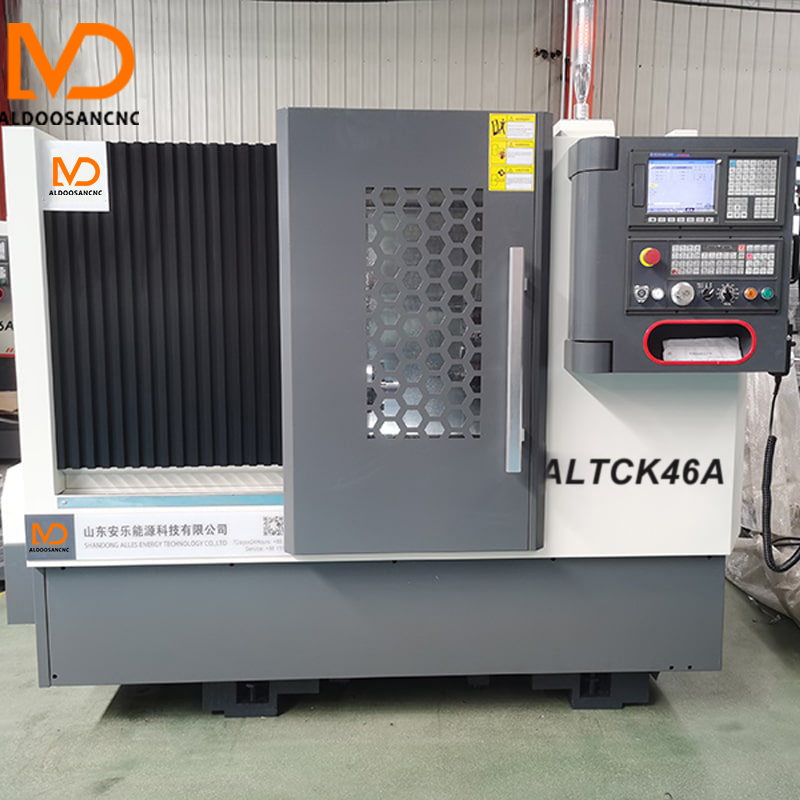

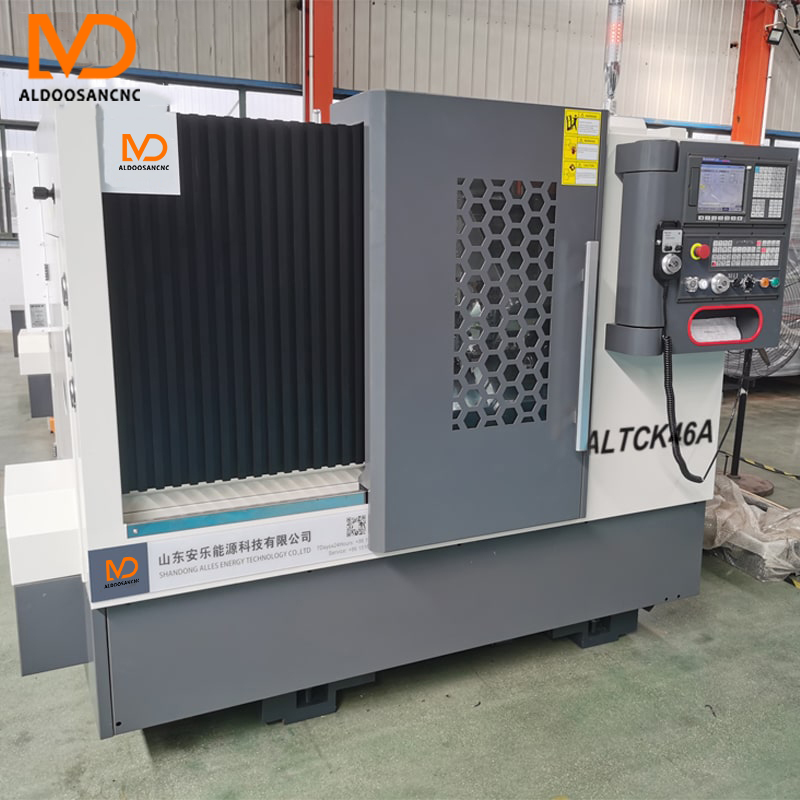

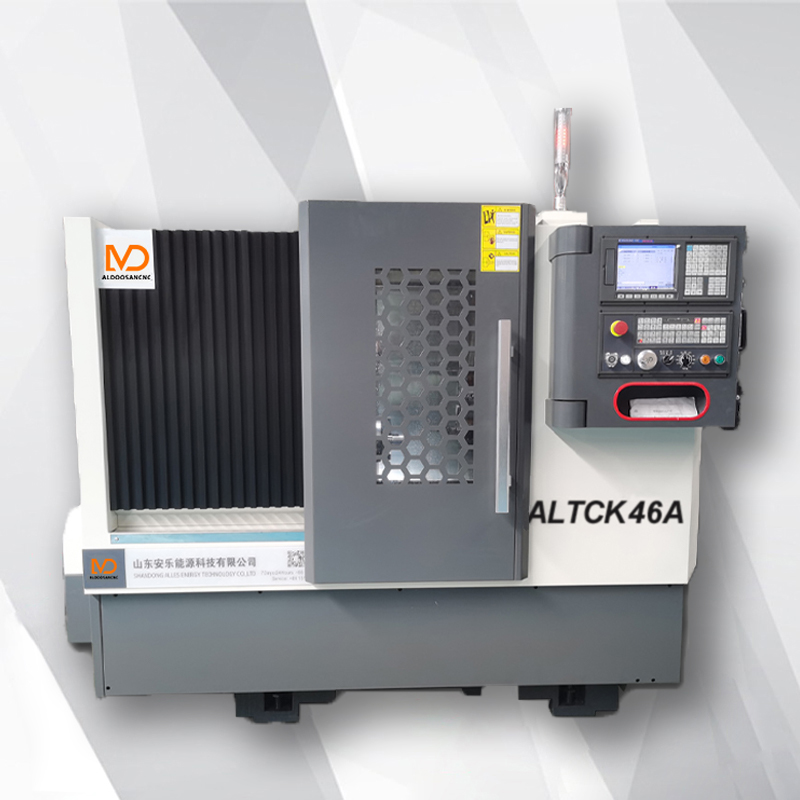

ALTCK46A Inclined Bed Linear Rail CNC Lathe ALTCK46A Inclined Bed Linear Rail CNC Lathe adopts a 30° integral inclined bed structure and is equipped with high-precision preload linear rolling guide rails from Taiwan, China. The machine tool has high position accuracy and smooth chip removal, suitable for high-speed and high-precision processing.
ALTCK46A slant bed cnc lathe is a high-speed, high-precision, high-reliability inclined bed machine tool. Adopting 30° overall inclined bed structure, equipped with high-precision preload Taiwan linear rolling guide, the machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining. High-speed, high-precision, high-rigidity shell-type spindle unit, servo spindle motor, can reach higher spindle speed. The X/Z direction servo motor is directly connected to the lead screw through a large torque and low inertia elastic coupling. The lead screw support adopts a pre-stretched structure, which can eliminate the transmission backlash and pre-compensate the influence of thermal deformation on the accuracy of the machine tool during long-term operation. Ensure positioning accuracy and repeat positioning accuracy; adopt advanced centralized automatic lubrication device, timing and quantitative automatic intermittent lubrication, stable and reliable work.
1. High precision: Using advanced CNC technology, precise processing requirements can be achieved.
2. Multi-function: supports a variety of processing operations and is suitable for the processing needs of various complex workpieces.
3. High degree of automation: Through CNC system control, automated production is realized and work efficiency is improved.
4. Stable operation: The mechanical structure is reasonably designed and the operation is stable and reliable.
5. Easy to operate: The operation interface is friendly and easy to learn and master.
6. Save labor costs: Reduce manual operations and reduce production costs.
7. Wide range of application: It can be used for processing various metal and non-metal materials and has a wide range of application fields.
1. Railway locomotive manufacturing industry: ALTCK46A cnc lathe machining automatic numerical control lathe is aimed at high-speed rail locomotive body, axle, wheel and other parts.
2. Mold processing and manufacturing industry: the precision of parts is required to be high, and the surface precision mainly refers to the surface roughness. Cylindrical parts that require high cylindricity; conical parts that require high plane straightness, roundness, and inclination; rotating parts with special threads.ALTCK46A slant bed cnc lathe numerical control lathe can solve this problem well.
3. Defense industry: The ability of ALTCK46A slant bed cnc lathe to provide replacement parts and upgrade components on demand is especially useful in this industry. Therefore, it is suitable for components that require continuous innovation and safety.
4. Medical business field: ALTCK46A slant bed cnc lathe can be used for various medical safety materials. Since the process is suitable for one-off custom parts, it has many applications in the medical industry. The tight tolerances offered by the ALTCK46A cnc lathe machine are critical for high-performance machining of medical components.
1 CNC controller
2. Linear guide rail
3. Spindle unit speed 4000rpm
4.6 inch hollow hydraulic chuck
5.8 station hydraulic turret
6. Automatic lubrication system
7. Automatic cooling system
8. Work lights
1. Hydraulic 4-jaw chuck
2. Servo Turret/Power Turret
3. Chip conveyor
4. FANUC CNC controller
