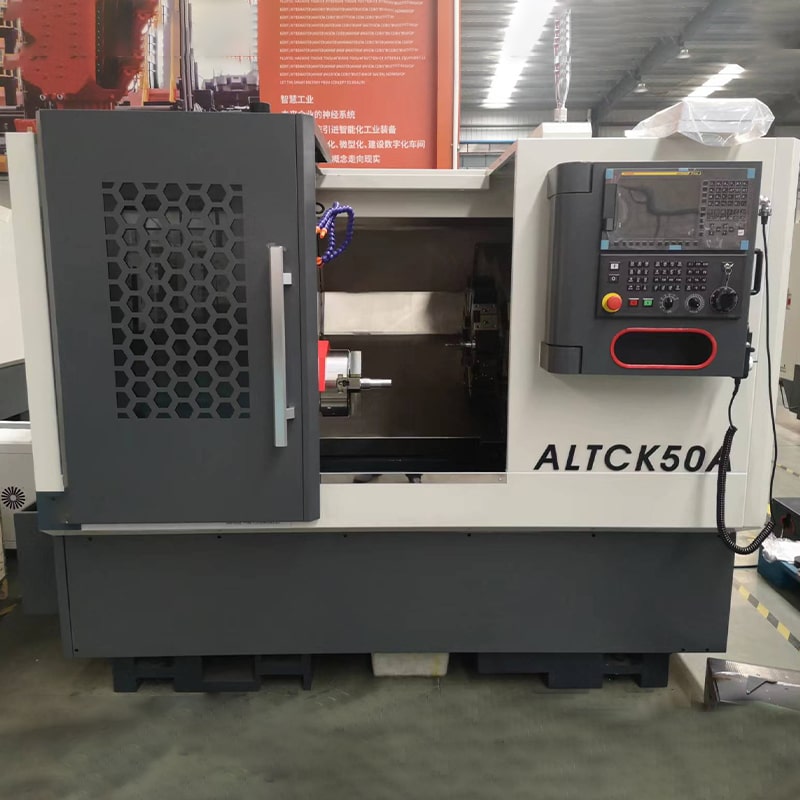

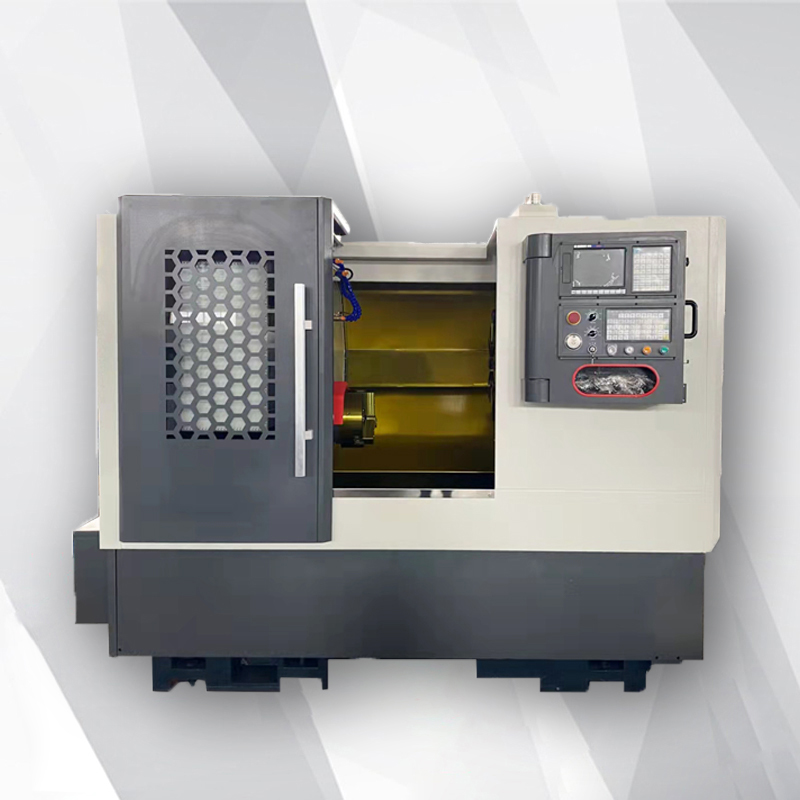

ALTCK50A cnc lathe machine

TCK50A slanted bed adopts a high-precision spindle bearing group and a spindle that has been precision assembled and dynamically balanced to ensure high precision, low noise and strong rigidity. Using the turret mode, the tool change speed is fast and the positioning accuracy is high. TCK50A slanted bed The servo motor is directly connected to the lead screw through a high-torque low-inertia elastic coupling to ensure positioning accuracy and repeat positioning accuracy. Adopting advanced centralized automatic lubricating device, regular and quantitative automatic intermittent lubrication, stable and reliable work.

CNC lathe ALFCK50A has the following characteristics:

1. High-precision processing and efficient production;

2. Simple to operate, easy to learn and use;

3. Accurate positioning and high repeatability;

4. High degree of automation and improved production efficiency;

5. Suitable for processing workpieces of various shapes;

6. It has automatic tool changing function to save tool changing time;

7. Good stability and long service life.

Uses of ALTCK50A cnc lathe machining:

1. Railway locomotive manufacturing industry: ALTCK50A cnc lathe machining automatic numerical control lathe is aimed at high-speed rail locomotive body, axle, wheel and other parts.

2. Mold processing and manufacturing industry: the precision of parts is required to be high, and the surface precision mainly refers to the surface roughness. Cylindrical parts that require high cylindricity; conical parts that require high plane straightness, roundness, and inclination; rotating parts with special threads.ALTCK50A slant bed cnc lathe numerical control lathe can solve this problem well.

3. Defense industry: The ability of ALTCK50A slant bed cnc lathe to provide replacement parts and upgrade components on demand is especially useful in this industry. Therefore, it is suitable for components that require continuous innovation and safety.

4. Medical business field: ALTCK50A slant bed cnc lathe can be used for various medical safety materials. Since the process is suitable for one-off custom parts, it has many applications in the medical industry. The tight tolerances offered by the  ALTCK50A cnc lathe machine are critical for high-performance machining of medical components.

ALTCK50A cnc lathe machine standard configuration:

1 CNC controller

2. Linear guide rail

3. Spindle unit speed 4000rpm

4.6 inch hollow hydraulic chuck

5.8 station hydraulic turret

6. Automatic lubrication system

7. Automatic cooling system

8. Work lights

ALTCK50A cnc lathe machine optional configuration:

1. Hydraulic 4-jaw chuck

2. Servo Turret/Power Turret

3. Chip conveyor

4. FANUC CNC controller

video:

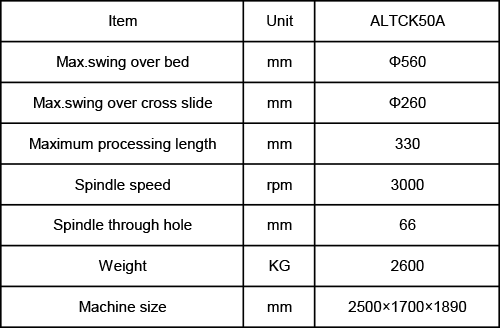

Product parameters:
